Regal 2100 - Page 290

ALL RIGHTS RESERVED
REGAL MARINE INDUSTRIES
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
DRAWING TITLE:
PAGE:
REV. DATE:

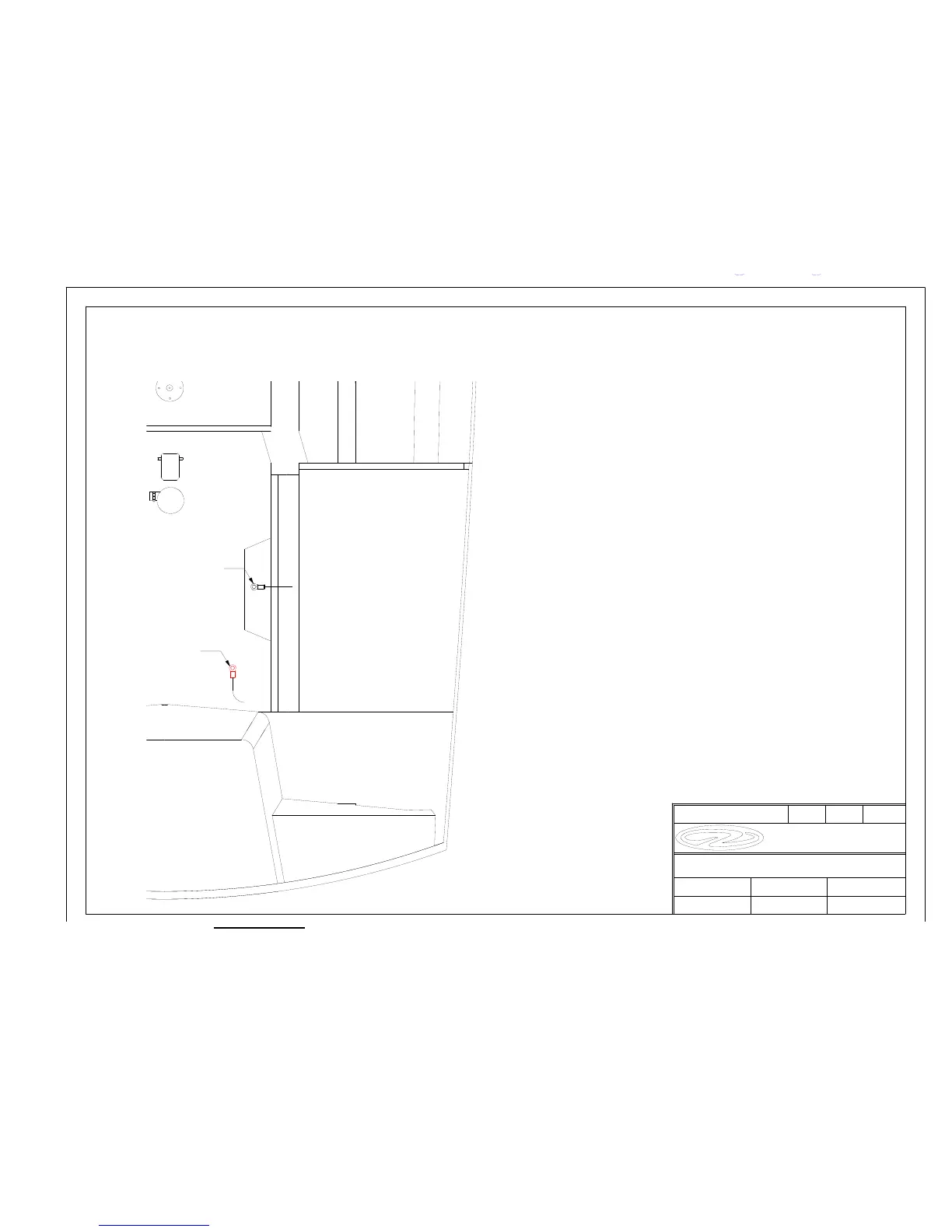

CB BATTERY CABLE ROUTING
ECB22C.dwg
1 OF 1
CHECKED BY:
DWG. NO.:APP. BY:
R SIFORD
DR. BY:
DATE:
REV. # APP. BY:DR. BY:
04-11-08
NOTES:
1. BATTERY CABLES TO BE INSTALLED AS
SHOWN.
2. BATTERY CABLES TO BE SECURED EVERY
18" MAX.
3. INSTALL CHAFE PROTECTION AS NEEDED.
4. RED BATTERY INSULATOR BOOTS REQUIRED
AT BOTH STARTER POSITIVE AND BATTERY
POSITIVE CONNECTION POINTS.
ROUTE TO ENG
GROUND STUD
ROUTE TO ENG
STARTER
POS TERMINAL.
SEE NOTE 4.
2100 BATTERY CABLE RUN
