REGAL MARINE INDUSTRIES
2300 JETPORT DRIVE
ORLANDO, FLORIDA 32809
TEL (407) 851-4360
ALL RIGHTS RESERVED
REV. DATE:
CHECK BY:
WI-887
REVISION DESCRIPTION
M.GARCIA

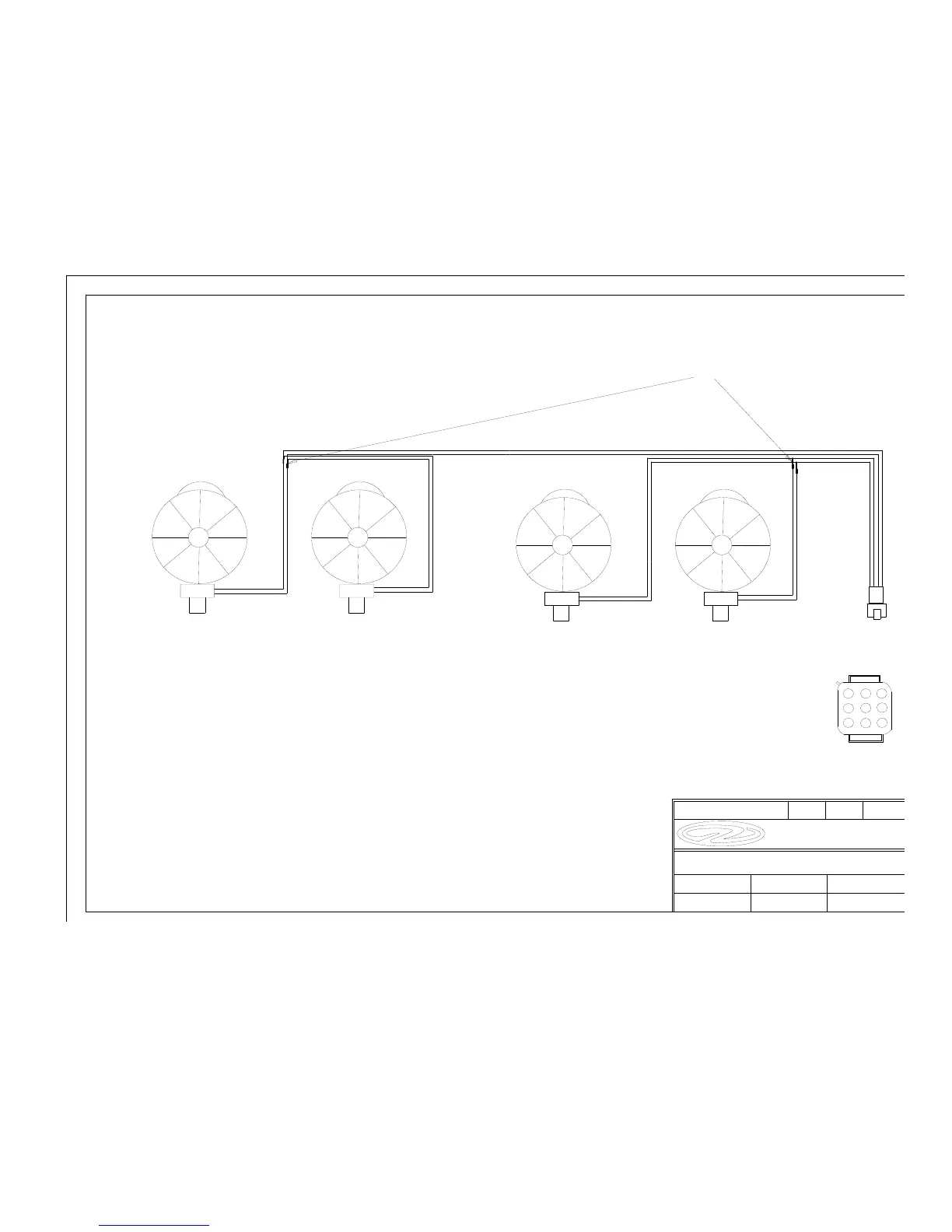

RX TOWER SPEAKERS WIRING
M.GARCIA
DATE:
DR. BY:
DRAWING TITLE:
5/16/08
APP. BY:DR. BY:
DWG. NO.:
PAGE NO.:
2 OF 2
APP. BY:
4
NOTES: ADD PINS TO END OF CABLE AT SPEAKER
CONNECTIONS.
ADD A 9 POSITION MATE-N-LOCK PLUG AT STBD
SIDE OF TOWER.
1
2
3. GREEN (+)
PURPLE/BLACK (-)
3
DETAIL "A"
SPLICES SHOULD BE MADE AT THESE POINTS IN THE HARNESS.
KEEP THEM OUTSIDE OF THE GROMMET FOR THE PURPOSE
OF SERVICE. USE HEATSHRINK TO COVER SPLICES & WIRE.
SPEAKER 1 AND 4 WILL BE USED WHEN TWO SPEAKER CONFIGURATION
IS ACQUIRED.
4
GREEN/BLACK (-)
5
6
4. GREEN (+)
7
8
GREEN/BLACK (-)
9
1. UNUSED
2. GRN/BLK
3. GRN
4. UNUSED
5. PUR/BLK
6. PURPLE
7. UNUSED
8. UNUSED
9. UNUSED
1. PURPLE (+)
PURPLE/BLACK (-)
1
2
3
2. PURPLE (+)
2100 RX TOWER SPEAKER WIRING 2 0F 2
