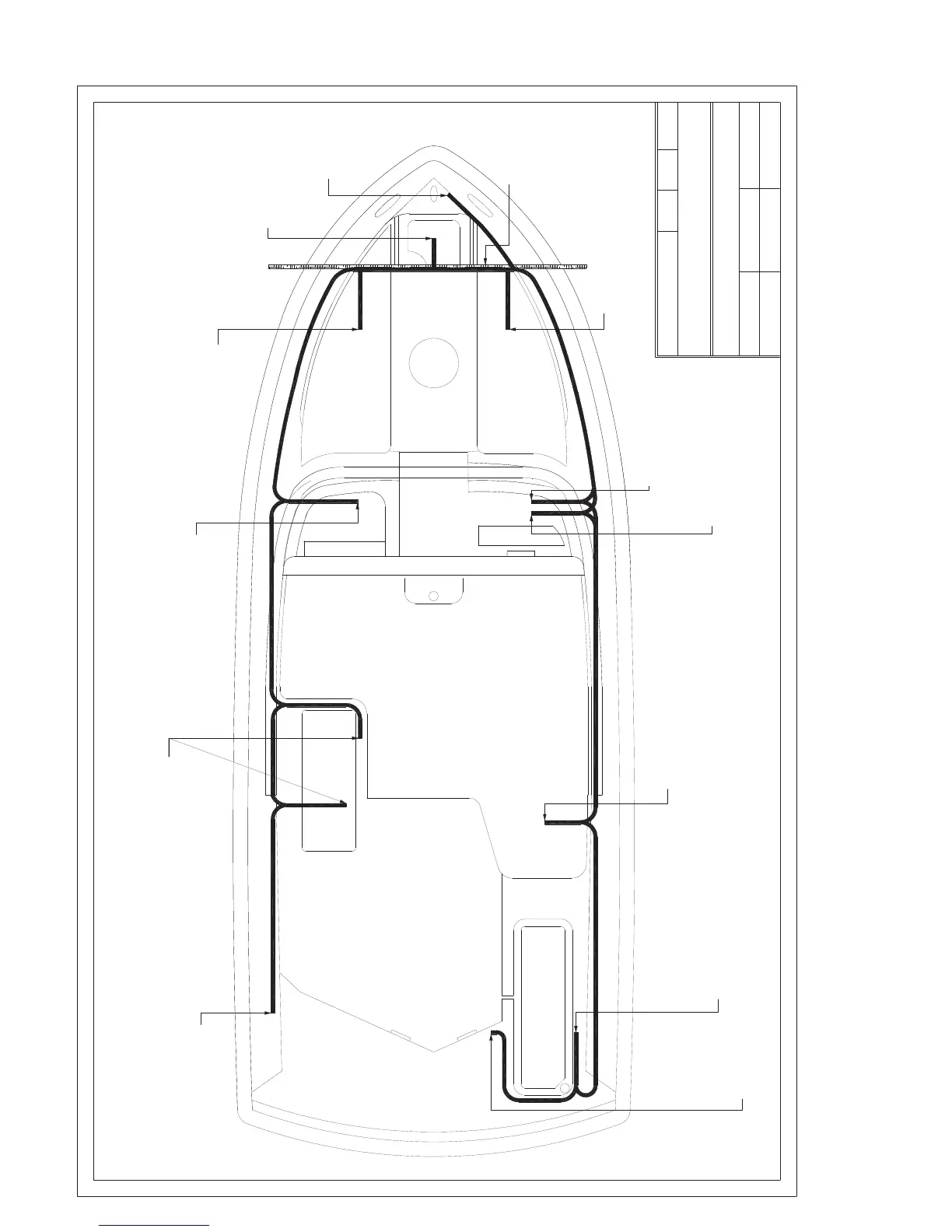

2250 TYPICAL DECK HARNESS LAYOUT
12-6
REV. DATE:
X
LATEST REV LET:
X
X
R SIFORD
DRAWING TITLE:
APP. BY:
2300 JETPORT DRIVE
X
TELEPHONE (407) 851-4360
X
DATE:
DR. BY:
2250 (DJ) DECK HARNESS LAYOUT
REVISION DESCRIPTION
REGAL MARINE INDUSTRIES
EDJ22A
DWG. NO.:
ORLANDO FLORIDA 32809-7895
DR. BY:
X
X
APP. BY:
SCALE:
XX
X
XX
X
11-01-02
PORT CABIN LIGHT
PORT COCKPIT LT
LEFT REAR SPEAKER
STBD CABIN LIGHT
12VDC POS & NEG
STEREO/AMP/ANTENNA
WINDSHIELD WIPER
DASH CONNECTORS
EMERGENCY STOP
NEUTRAL SAFETY
ENG ALARM
SPEEDO TUBE
HORN
BOW
LIGHT
BRAKE LIGHT
PLUG
NOTES:
1. HARNESS TO BE INSTALLED AS SHOWN.
2. HARNESS TO BE SECURED EVERY 18" MIN.
3. INSTALL CHAFE PROTECTION AS NEEDED.
STBD COCKPIT LT
BATTERY SW BOX
RIGHT REAR SPEAKER
GROUND BUSS
PORT DOCKING LIGHT
LEFT CABIN SPEAKER
BRAKE LTS CONNECTION/
DASH TO SUMP CONNECTION
STEREO REMOTE
PLUG
STBD DOCKING LIGHT
RIGHT CABIN SPEAKER
FWD ROPE
LOCKER BLKHD
