Equipment Operation

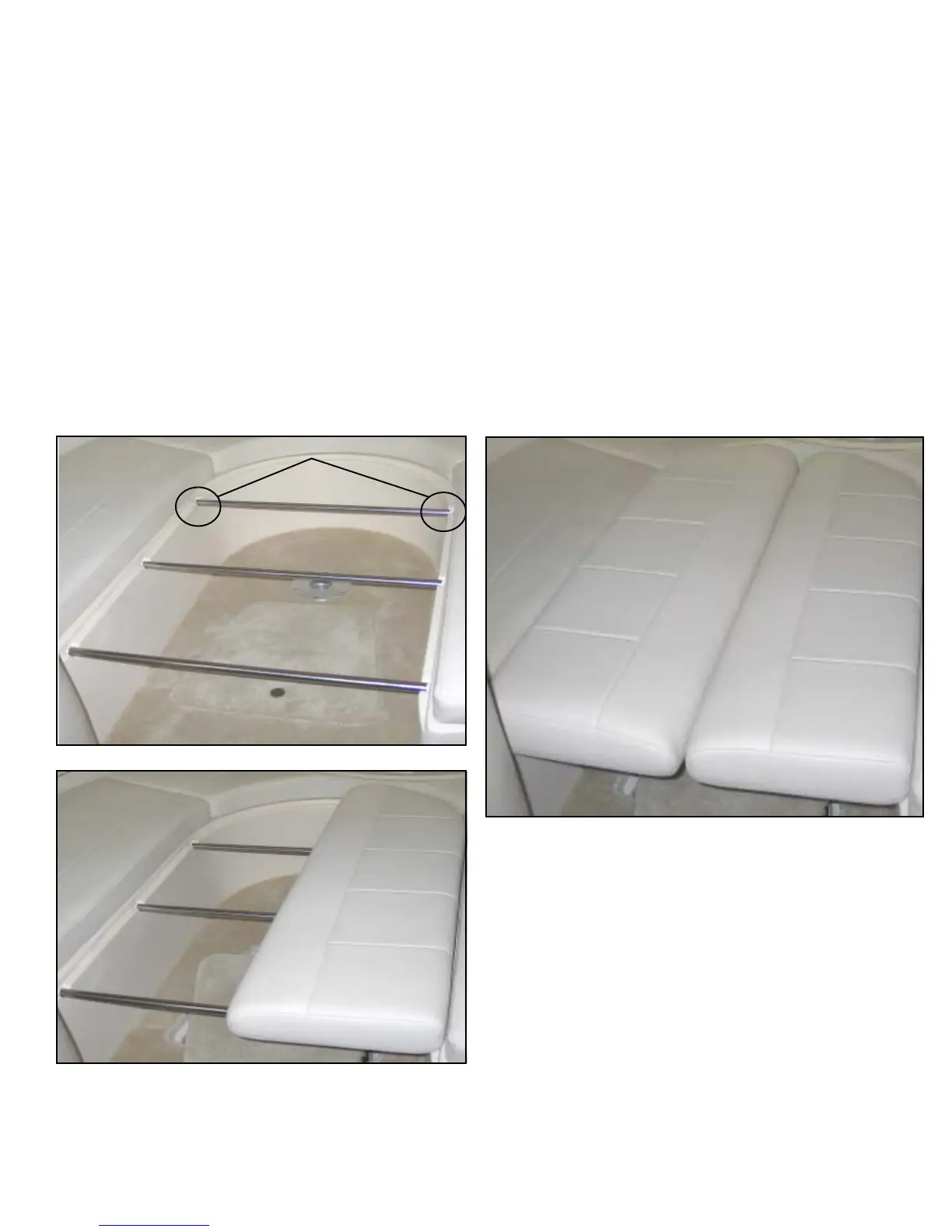

TYPICAL BERTH/SLEEPER SET-UP
The forward berth converts to a sleeper accommodating 2
adults.To set-up the berth follow these steps:
1. First locate the 3 stainless steel bars. Insert the bars in the
mold cut-outs using pole length as a placement guide.
See illustration 1.
INSERT BARS IN SCALLOPED CUT-OUTS
Grasp the starboard backrest cushion and with a quick motion
pull up to release it from the retaining clip. Do the same with
the port cushion. The starboard backrest cushion forms the star-
board berth. The port backrest cushion forms the port berth.
See illustration 2.
3. After all cushions are installed make sure they are seaated
properly before using the berth.
4. To disassemble the berth, remove each bar and store under
floor.
5. Make sure each backrest cushion is stored in its original posi-
tion. Do not force the clips as they may damage the vinyl. The
clips should seat with light pressure only.
1
2
2. The forward berth backrest cushions fill in to form the
berth. The port and starboard backrests are held in place
with a clip.
STBD. BACKREST
CONVERSION COMPLETE
