7
Systems
Ignition Switch
The ignition
switch features
three positions;
off, run, and
start. The start
position is
spring loaded
and the key
should be held
in this position
to engage the
starter. Once
the engine has
started release
the key from the start position. It will then be energized
in the run position. The key switch features overcurrent
breakers. Remove the keys from the ignition switches
when the engines is not running.

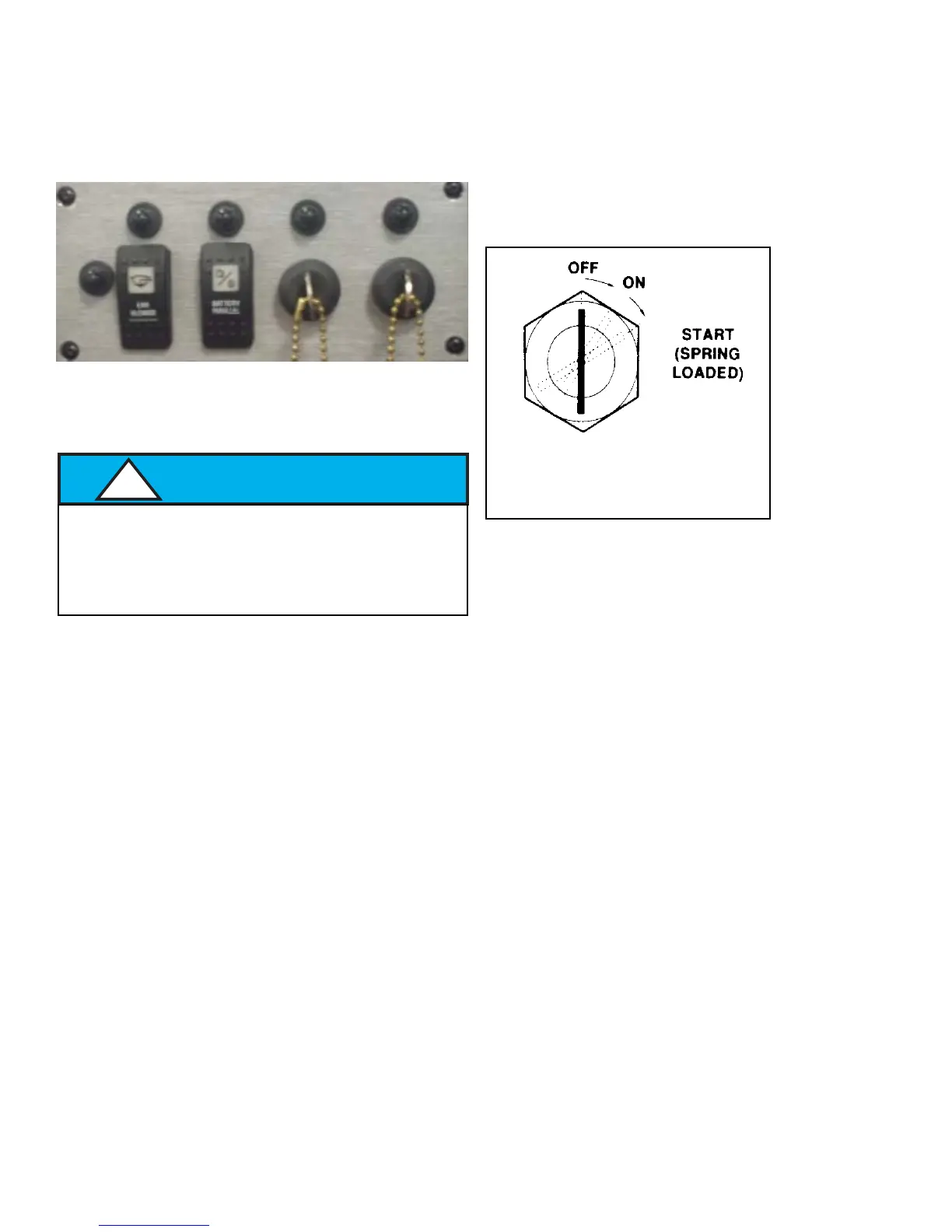

TYPICAL IGNITION SWITCH
SHOWING 3 KEY POSITIONS
IGNITION SWITCH PANEL
!
AVOID BODILY INJURY OR DEATH!
REMOVE KEYS FROM IGNITION
SWITCHES WHEN THE ENGINES
ARE NOT RUNNING.
DC CIRCUIT PROTECTION
A source of engine circuit protection is located on the
engine itself. On Volvo engines, there is a flat plug on
the engine that interfaces with the boat harness and the
dash. Within this system there are selected in-line fuses
that protect the key switch as well as the dash gauges. It
does not power the dash switches such as bilge pump,
blower, etc.
If an engine circuit fuse “blows” determine the cause of
the malfunction before replacing the fuse. Consult the
engine manufacturer’s manual located in the owner’s
information pouch for further information.
IGNITION SWITCH PANEL
