Volvo IPS Propellers- Installing
AVOID BODILY INJURY!
ALWAYS REMOVE KEYS FROM
IGNITION SWITCHES BEFORE
BEGINNING PROPELLER MAINTENANCE.
Reassembly of the dual propeller unit requires that the
propeller shaft be clean to start and the proper lubricants
be applied to the unit.

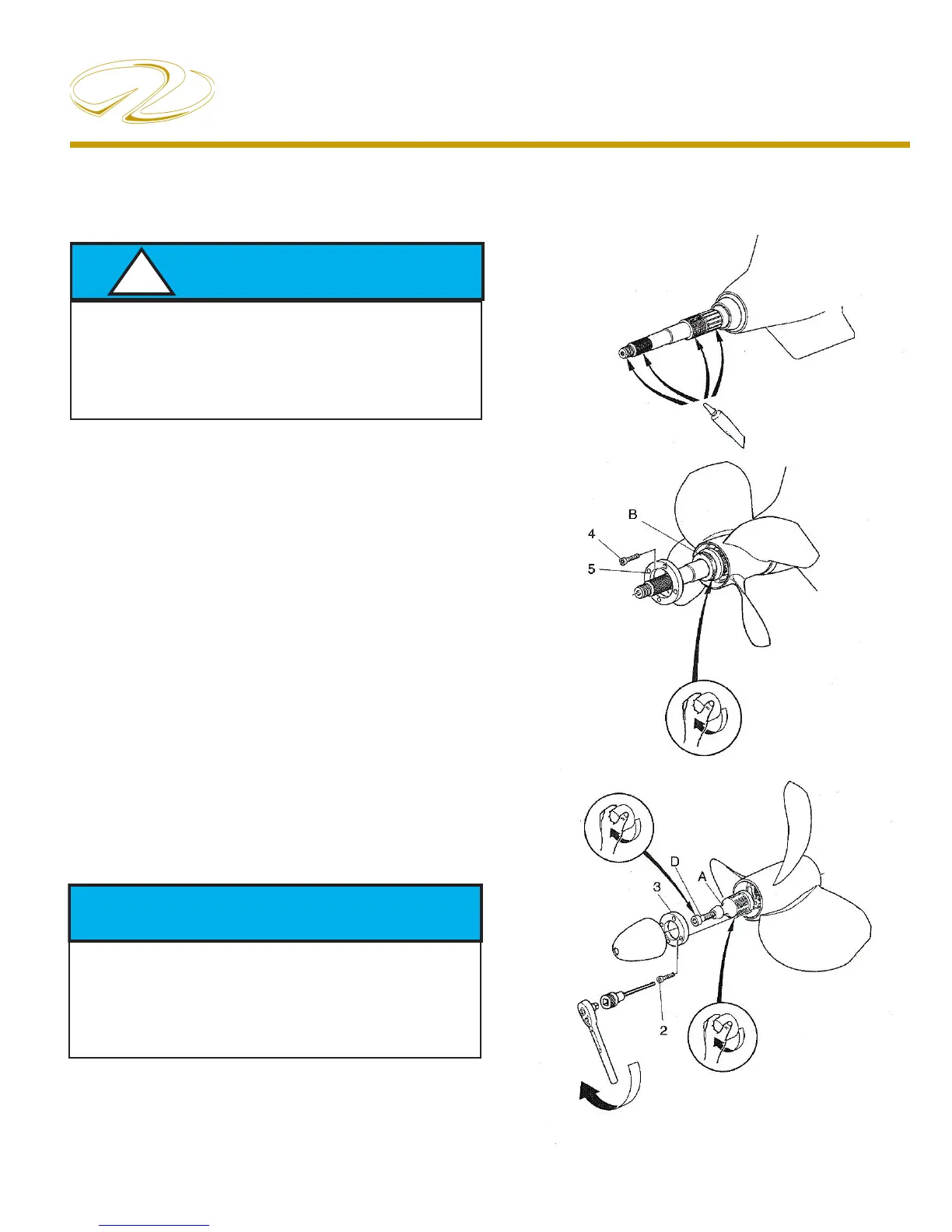

1. Appy a water-resistant grease such as Volvo # 828250
to the propeller shaft splines.
2. Install the aft propeller. Screw on the aft nut (C) and
hand tighten until it reaches the end of its travel. Install the
locking ring (5). Tighten the locking ring with the special
tool and the four socket cap screws (4).
Torque from 17.5 to 20.5 ft. lbs.
3. Install the forward propeller on the propeller shaft. Screw
on nut (A) by hand and install locking ring (3).
Tighten the locking ring with the special tool and the four
socket cap screws. Torque from 17.5 to 20.5 ft. lbs.
TIGHTEN SCREW (D) UNTIL IT BOTTOMS OUT
OR IT WILL NOT BE POSSIBLE TO CHANGE
THE PROPELLER WITHOUT DAMAGING
THE SPINNER.
