TYPICAL BREAKER
As part of the battery circuit protection from the bat-
tery to the battery management system panel a 150 amp
breaker is installed within 40” of the battery. These break-
ers are located in the bilge.
If the breaker would draw excessive amperage it is pos-
sible it could “blow”. At this point it would need to be
reset.
Always determine the reason why the breaker blew be-
fore resetting the
breaker.

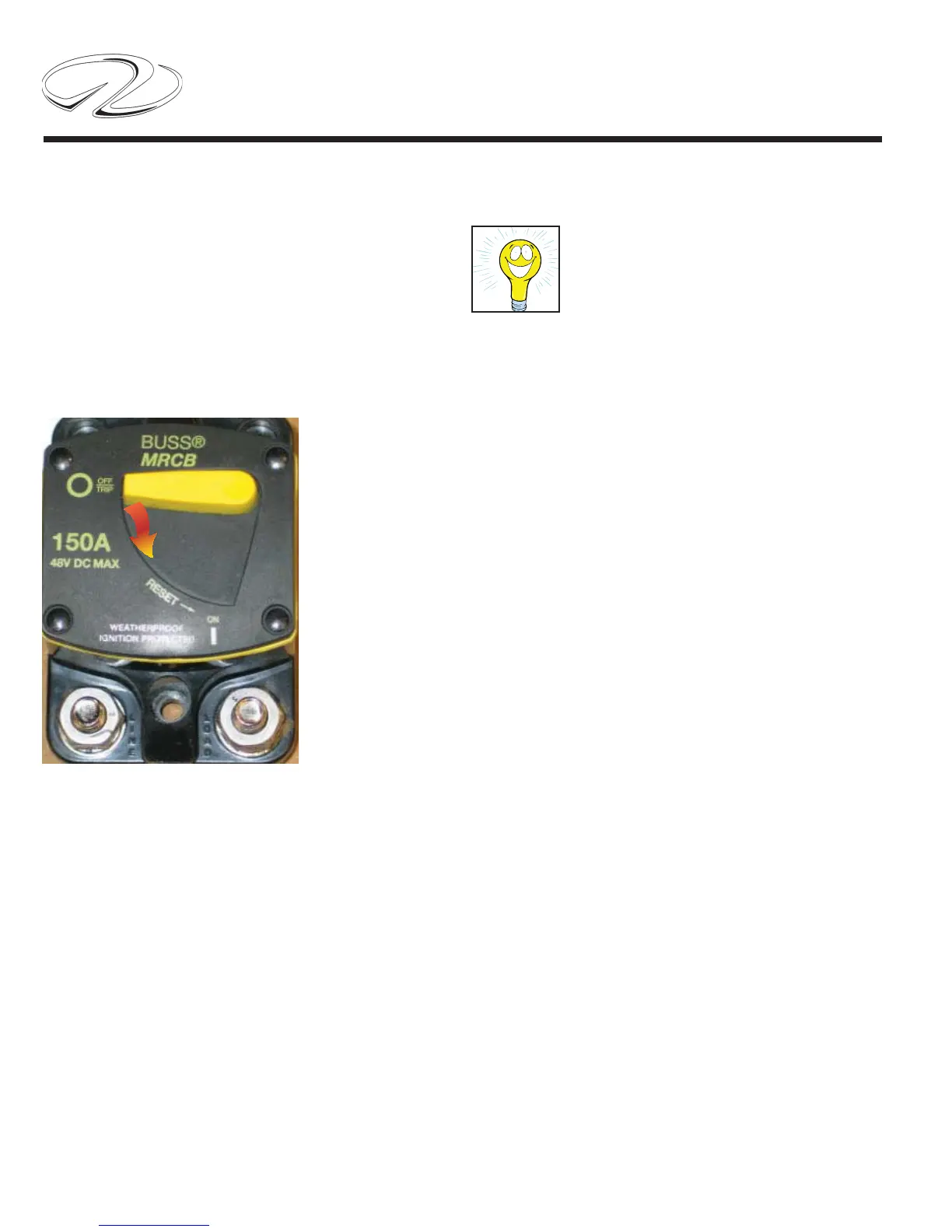

To reset the break-
er move the lever
from the “off ”
position to the
“on” position as
indicated by the
red arrow above.
POSSIBLE PROBLEMS/SOLUTIONS
1. One of the three universal battery
switches and breakers at the battery
management panel do not function-
The breaker is blown. Reset the 150 amp
breaker after determining the cause of the
problem.
2. One of the 150 amp breakers has blown- it is possi-
ble that the circuit has drawn excessive amperage. Check
the circuit components and wiring before resetting the
breaker.
