16 | LRI4E / HRI4E Direct Vent Gas Insert
|
16
installation
LEVELLING LEG ADJUSTMENT
The LRI4E / HRI4E inserts are equipped with 2 rear levelling legs that are accessible while the appliance is in its nal installation position. The unit can be
adjusted up to 5/16" (16mm).
Remove left and right side ller pieces. The rear levelling bolts are located in the back corners of the rebox and can be adjusted using a 7/16" wrench.
Rotate the bolts clockwise to raise the rear of the rebox.
When the appliance is in position, adjust the bolts to level the appliance, making sure that the appliance is also level and is sitting on the 2 bolts to prevent
rocking.

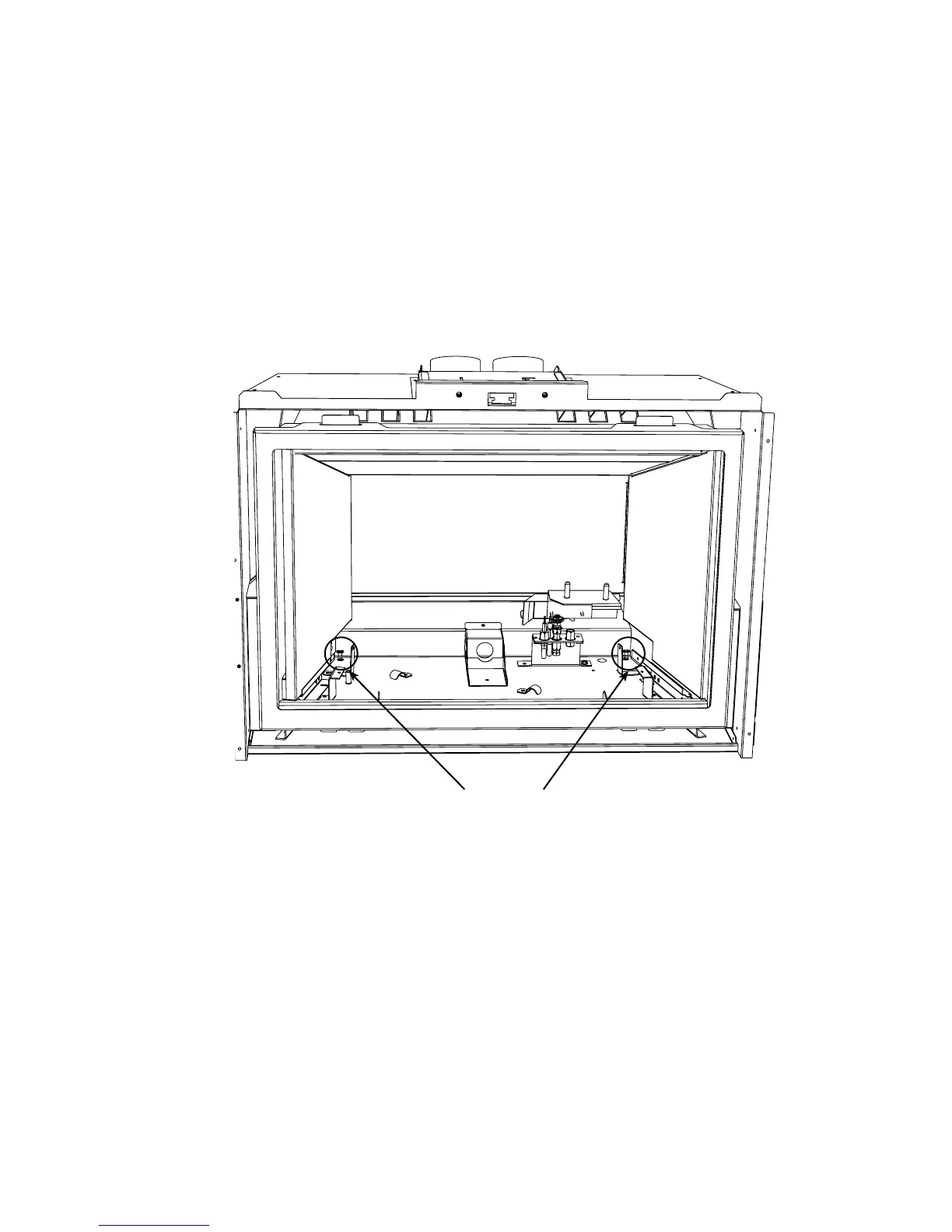

Levelling legs
