36 | LRI4E / HRI4E Direct Vent Gas Insert
|
36
installation

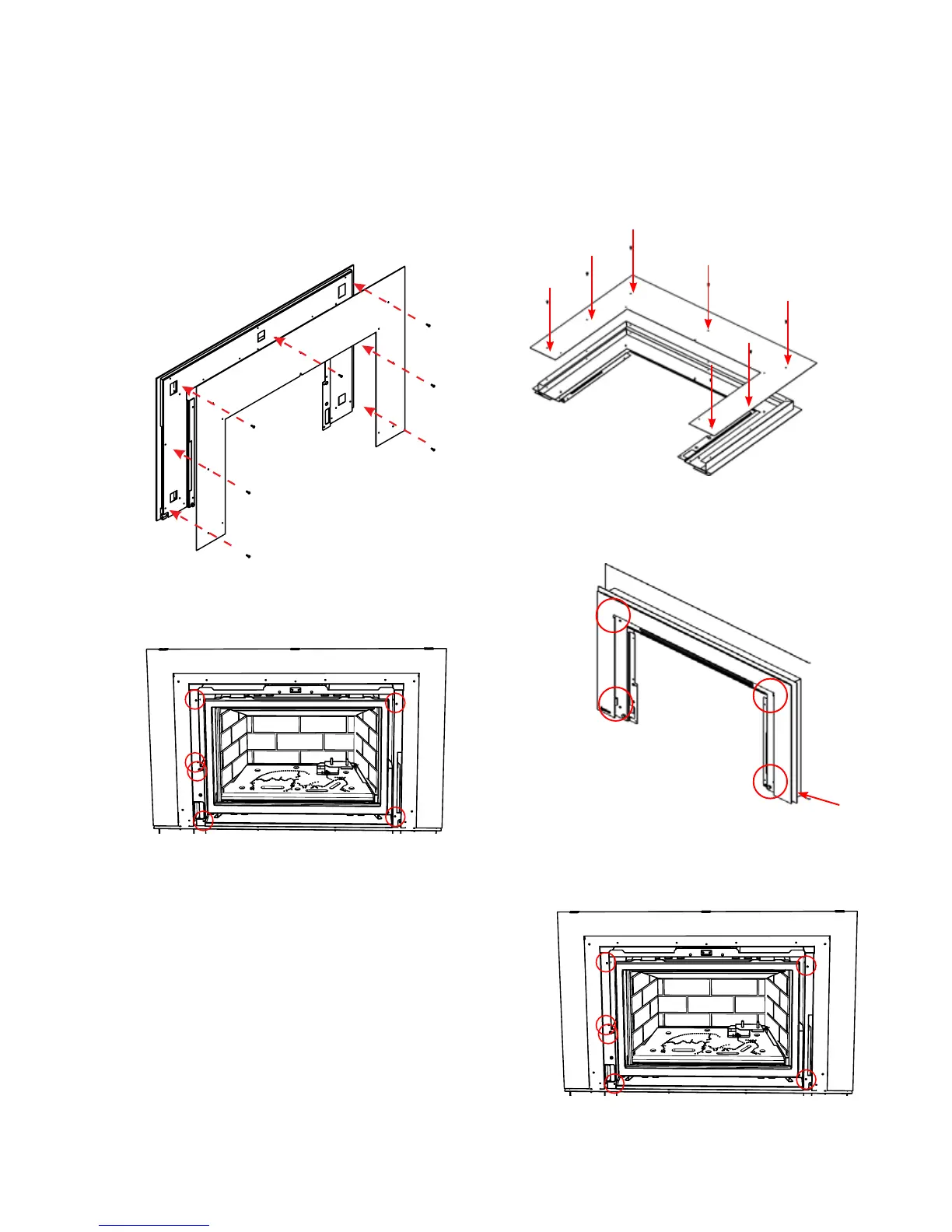

BACKING PLATE INSTALLATION
919-419
12.04.14
1
BACKING PLATE INSTALLATION
2. Install the outer faceplate and secure with 6 screws as shown.
Route power cord through the inner and outer profile of faceplate
1. Secure backing plate to spacer trim with 7 screws in the locations
shown below. Painted side of backing plate faces spacer trim.
1. Secure the backing plate to the outer faceplate and secure with 7
screws as shown.
2. Position backing plate and spacer trim against opening of surrounding
unit then position outer plate in front. Route power cord through
the inner and outer profile of faceplate on the right side. Install
grommet and wire clip. Secure outer faceplate to spacer assembly
with 4 screws as shown.
Backing Plate Installation
without Spacer
Backing Plate Installation
with Spacer
3. Install the outer faceplate and secure with 6 screws as shown.
Power cord
