LRI4E / HRI4E Direct Vent Gas Insert | 35
|
35
installation
SPACER INSTALLATION
919-418
09.25.14
1
SPACER INSTALLATION

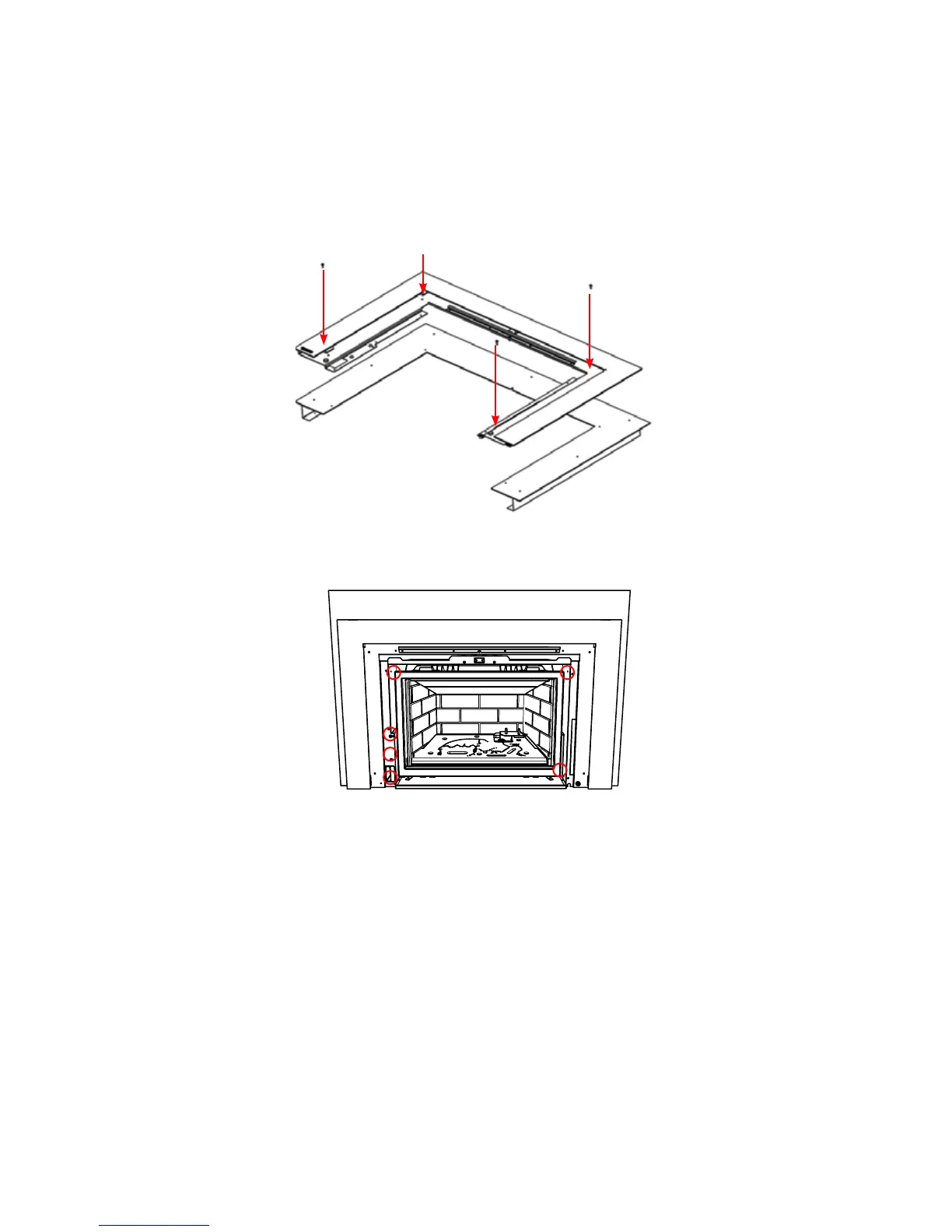

The installation of a spacer may be required to maintain the fl ush appearance of the faceplate.
1. Secure outer faceplate to spacer trim using 4 screws.
3. Install the Vignette faceplate by hooking the fl ange over the hanger.
See Vignette Installation Instructions
2. Install the outer faceplate with spacer trim and secure with 6 screws as shown.
Route power cord through the inner and outer rear profi le of the rear faceplate on the right side. Install grommet and wire clip.
