Manual CORRIGO C-SERIES 2000.09
Wiring example actuator

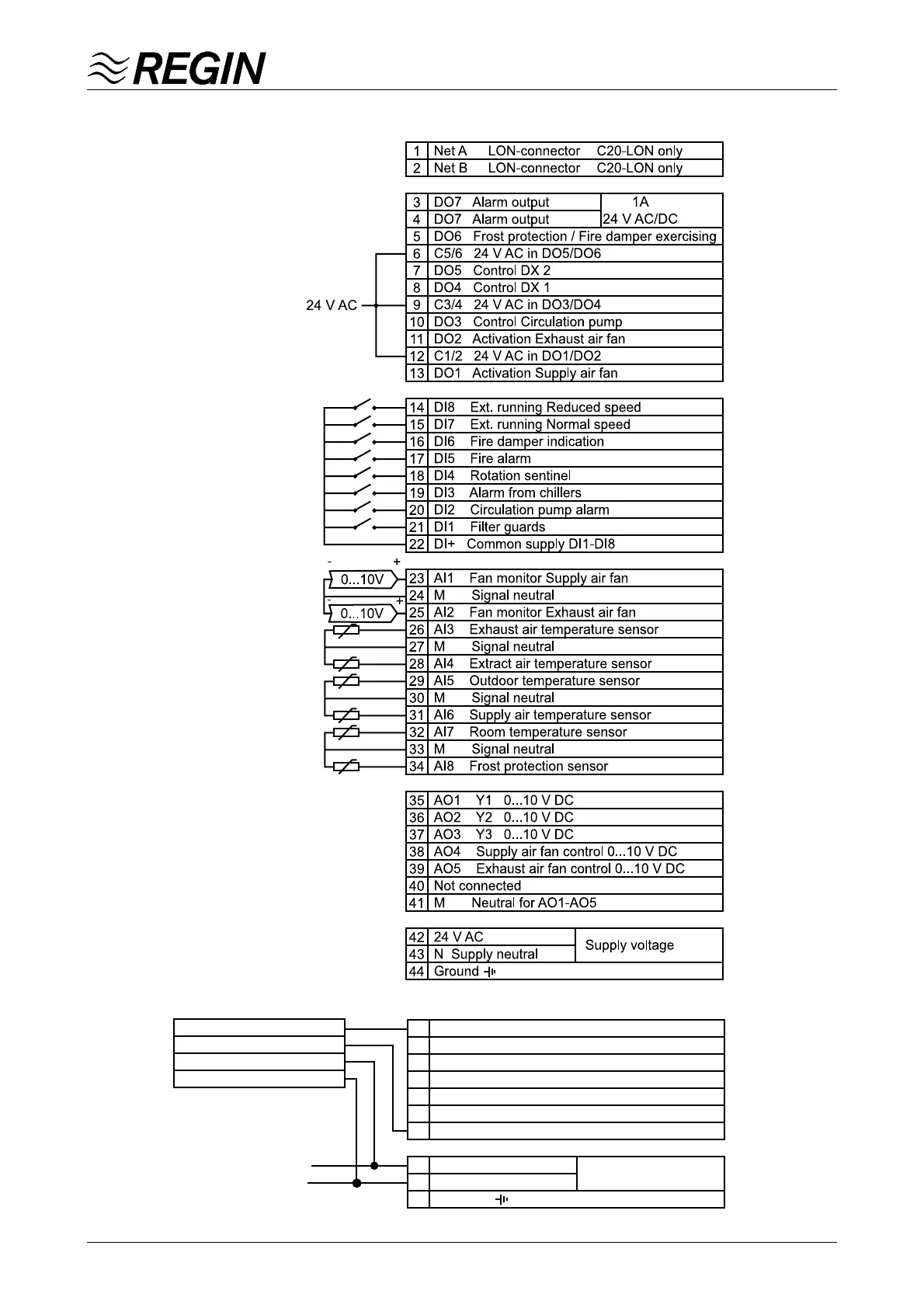

Wiring diagram C20
Signal 0...10V
Signal neutral
Supply voltage 24 V AC
System neutral (24 V AC)
24 V AC
N system neutral
Ground
35
36
37
38
39
40
41
42
43
44
Supply voltage
AO1 Y1 0...10 V DC
AO2 Y2 0...10 V DC
AO3 Y3 0...10 V DC
AO4 Supply air fan control 0...10 V DC
AO5 Exhaust air fan control 0...10 V DC
Not connected
M Neutral for AO1-AO5
