Manual CORRIGO C-SERIES 2000.09
Pressure control
In this menu you can look at and set most control values for the pressure control.
See also menu branch ”Settings”.
The control function that has been chosen and the selected login level will
determine which of the following menus can be seen and which parameters can be
set.
The table shows all the menus and the control functions with which they are shown.
1 SF Setp/Act/Out. Setpoint/Actual pressure/output status for the supply air
fan control signal. Setpoint can not be changed in this menu.
2. EF Setp/Act/Out. Setpoint/Actual pressure/output status for the exhaust air
fan control signal. Setpoint can not be changed in this menu.
3. Setpoint SF/EF. Menu for setting the desired supply air and exhaust air
pressures for normal air flow.
4. Reduced SF/EF. Menu for setting the desired supply air and exhaust air
pressures for reduced air flow.
5. SF P/I/D. Control parameters P-Band, I-Time and D-Factor for the supply
air fan control.
6. EF P/I/D. Control parameters P-Band, I-Time and D-Factor for the exhaust
air fan control.
7. Outdoor temperature compensation. Breakpoint 1.
8. Outdoor temperature compensation. Breakpoint 2.
9. Outdoor temperature compensation. Breakpoint 3.
10. Outdoor temperature compensation. Breakpoint 4.
The breakpoints must be placed with 1
lowest and 4 highest.
For each point both the outdoor temperature
and compensation in Pa (+/-) has to be set.
All breakpoints have factory set values that
can easily be changed if necessary.
For temperatures lower than point 1 and
higher than point 4 the compensation is
constant and equal to the value set for these
points.
SF Setp/Act/Outá
200Pa/190Pa/90%â
Humidity control
In this menu all the parameters for the humidity control can be set and are dis-
played.
1. Setpoint / Actual value
Setpoint and actual value for the room humidity sensor (main sensor).
2. Maximum limit / Actual value
Setpoint and actual value for the duct humidity sensor (limiting sensor).
3. Humidification / Dehumidification
Output status for humidification and dehumidification signals.
4. P-band / I-time.
Humidity control control parameters.
C30 and C40 only
Setpoint/Actualá
55%RH/ 54%RH â
C20 and C40 only
1
2
3
4
Setpoint pressure
Outdoor temperature

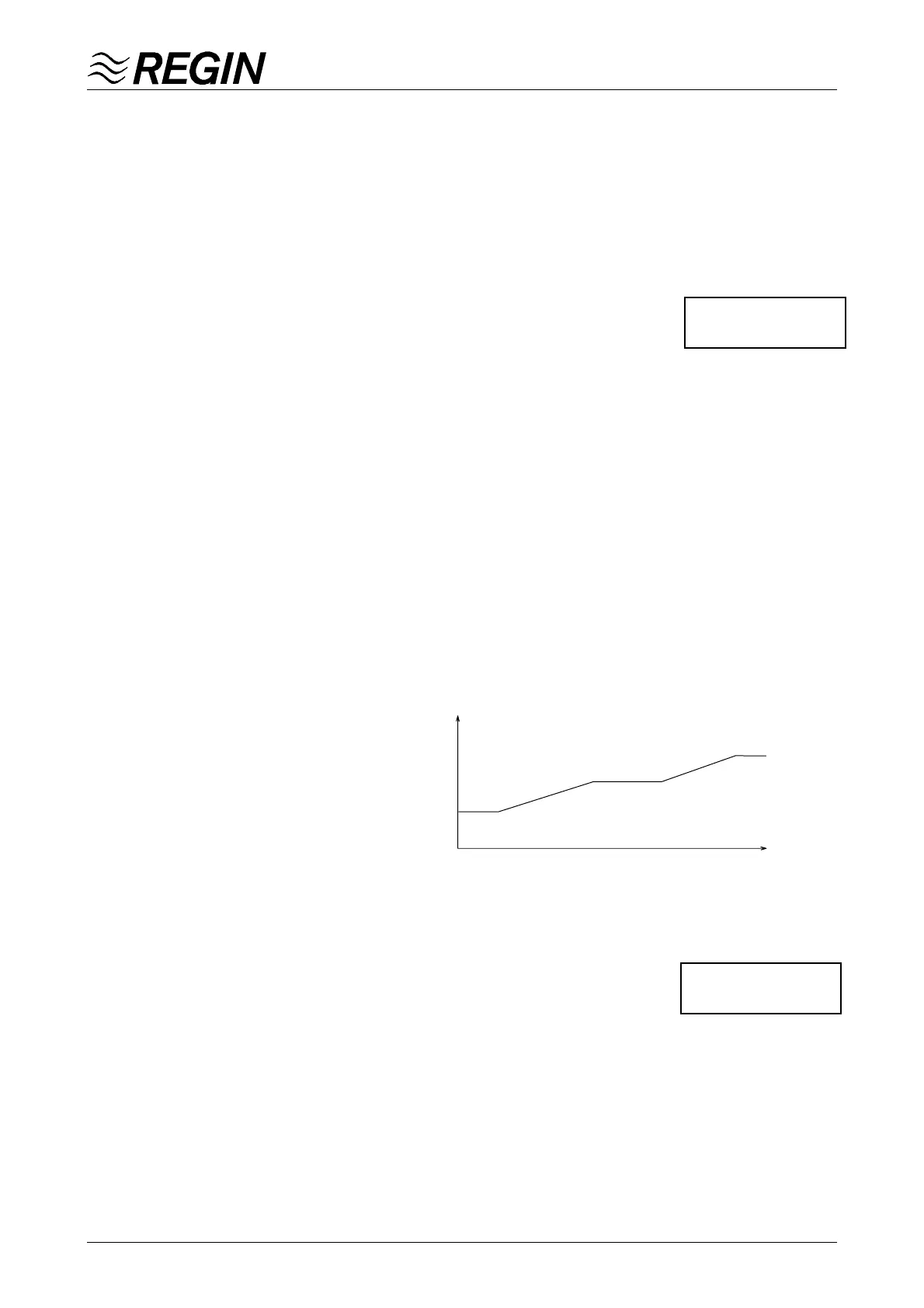

Example, compensation curve
