11
Manual CORRIGO C-SERIES 2000.09

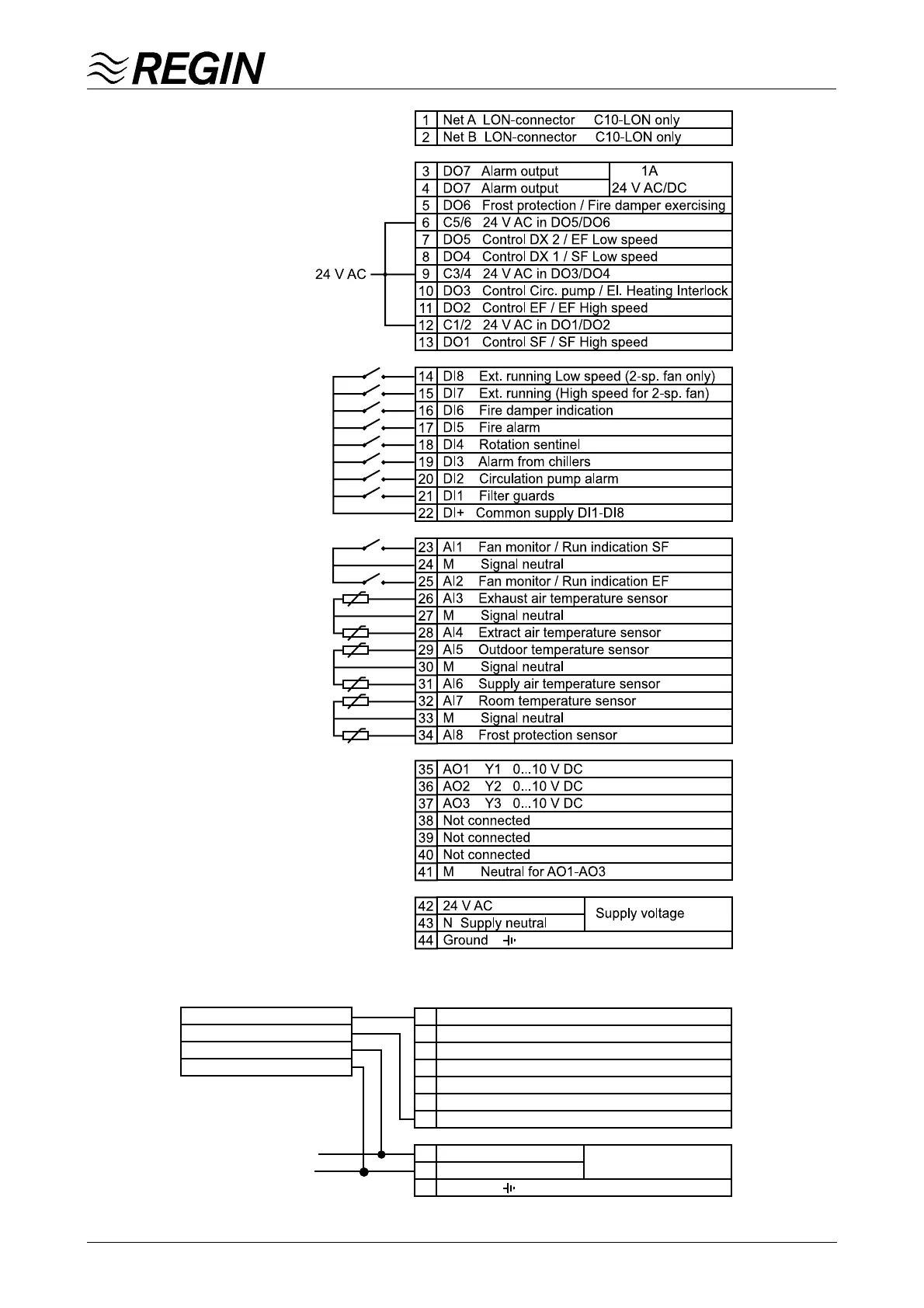

Wiring diagram C10
Wiring example actuator
Control signal 0...10V
Signal neutral
Supply voltage 24 V AC
System neutral (24 V AC)
AO1 Y1 0...10 V DC
AO2 Y2 0...10 V DC
AO3 Y3 0...10 V DC
AO4
AO5
AO6
M Neutral for AO1-AO3
24 V AC
N System neutral
Ground
35
36
37
38
39
40
41
42
43
44
Supply voltage
