Manual CORRIGO C-SERIES 2000.09
Configuration settings
Some of the settings are only available on certain models. This because som of the
inputs / outputs have different functions in different models.
A. CONTROL FUNCTION
B. HEATER TYPE
C. SEQUENCE Y1
D. SEQUENCE Y2
E. SEQUENCE Y3
F. FROST PROTECTION
G. SHUTDOWN MODE
H. PUMP STOP
I. FUNCTION NOT AVAILABLE FOR CORRIGO C40
J. ON/OFF-COOLING
K. COOL RECOVERY
L. FREE COOLING
M. FUNCTION DI 6 / DO 6
N. FIRE ALARM
O. FUNCTION DI 7 / DI 8
P. FUNCTION NOT AVAILABLE FOR CORRIGO C40
Q. FUNCTION NOT AVAILABLE FOR CORRIGO C40
R. DAYLIGHT SAVING TIME
S. HUMIDITY CONTROL
T. BASIC SETTING. Used to reset to factory values.
A. The first question concerns the controller’s control function.
To change the parameter press !, the marker appears by the digit. Press Ç or È
to change to another control function. The various functions are described below.
When the correct function has been selected, press OK to store.
Application examples – flow diagrams
In all the examples below for the various control situations, water heating has been
depicted with frost protection sensor, and electric heating with high temperature
limiting/thermostat. All examples are drawn with rotating heat exchanger and water
cooling. When configuring, the three output control sequences in CORRIGO are set
individually to suit the appropriate application .

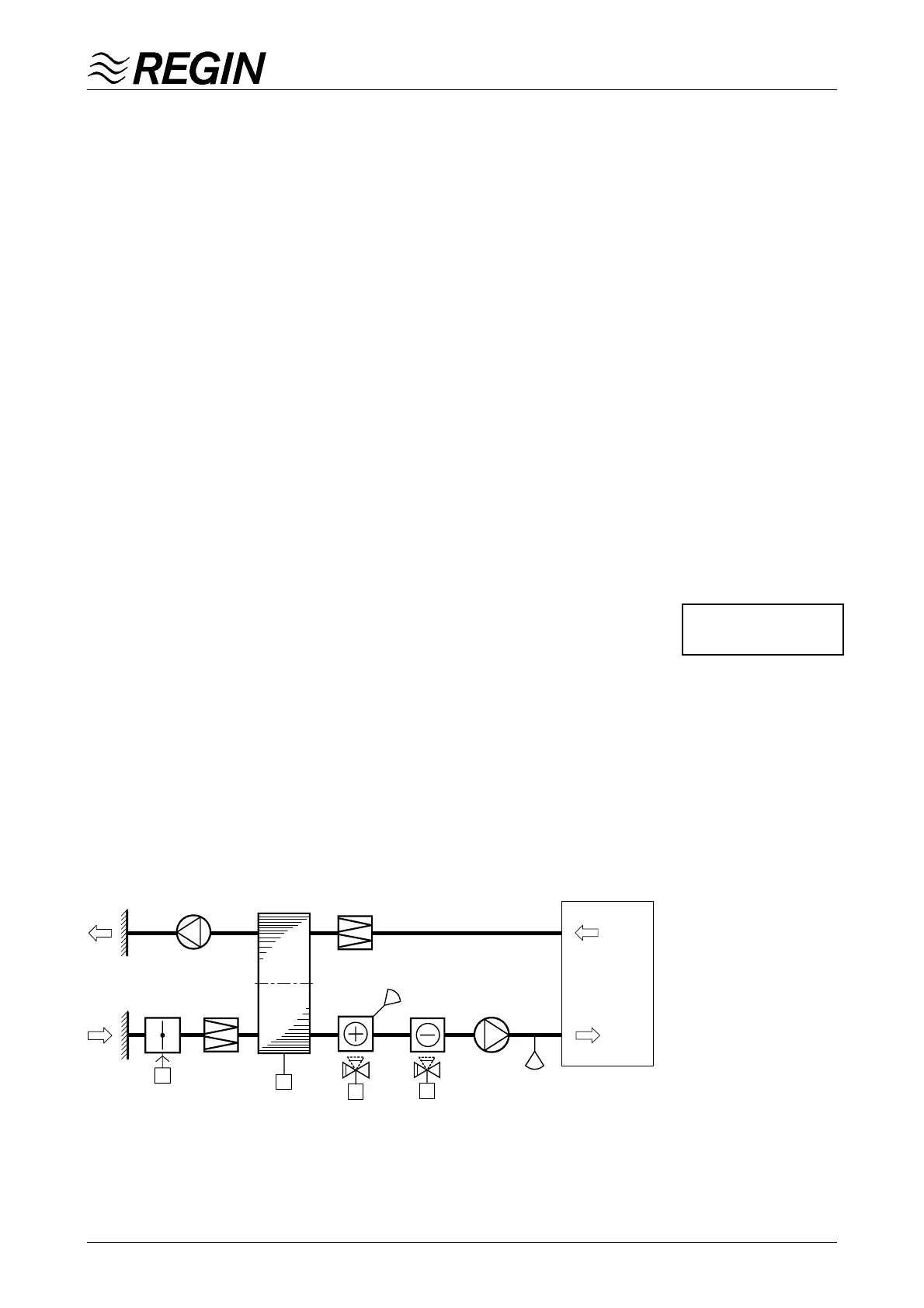

Supply air temperature control
The supply-air temperature sensor (AI6) controls the sequences to reach setpoint.
Control funct. á
0 Suppl.air cntâ
0. Supply air
temperature
control
Frost protection
sensor
