Manual CORRIGO C-SERIES 2000.09
Analogue outputs - output signal 0...10 V
AO1 Y1 - Heating, cooling or damper
AO2 Y2 - Heating, plate exchanger, rotating
exchanger,
liquid connected exchanger, damper or
cooling
AO3 Y3 – Heating, cooling or not used
AO4 Pressure control signal for supply air fan
AO5 Pressure control signal for exhaust air fan
AO6 Humidity control
Digital outputs
DO1 Activate supply air fan
DO2 Activate exhaust air fan
DO3 Control circulation pump or
Electric heating interlock
DO4 Control chiller 1 (DX)
DO5 Control chiller 2 (DX)
DO6 Control external frost protection or
Fire damper exercising
DO7 Alarm output
CORRIGO - C40
Overview
4 analogue sensor inputs Pt1000
4 analogue inputs 0....10 V
8 digital inputs
6 analogue outputs 0....10 V
7 digital outputs
The controller has temperature control with up to three sequences, humidity control, control of DX-cooling,
pressure control of supply air fan and exhaust air fan, heat exchanger efficiency calculation, cooling recovery
function, free cooling etc.
Analogue inputs - Pressure sensors / Humidity
sensors 0....10V
AI1 Pressure sensor, supply air fan
AI2 Pressure sensor, exhaust air fan
AI3 Room humidity sensor (Main sensor)
AI4 Duct humidity sensor (Limiting sensor)
Analogue inputs - Temperature sensors
AI5 Outdoor temperature
AI6 Supply air temperature
AI7 Room temperature
AI8 Frost protection temperature. When frost
protection function has been selected or
High temperature limit. When using an electric
heater
DI Digital inputs - operation and alarm indication
DI1 Filter guard(s)
DI2 Circulation pump monitor, heater circuit
DI3 Input for alarm from chiller(s)
DI4 Rotation sentinel or
Ice build-up sentinel for heat exchanger
DI5 Fire alarm
DI6 External alarm, external switches ”not in Auto
position” or end-position indication for fire-
damper (for fire-damper exercising).
DI7 Button or timer for extended running time at
normal speed.
DI8 Button or timer for extended running time at
reduced speed.

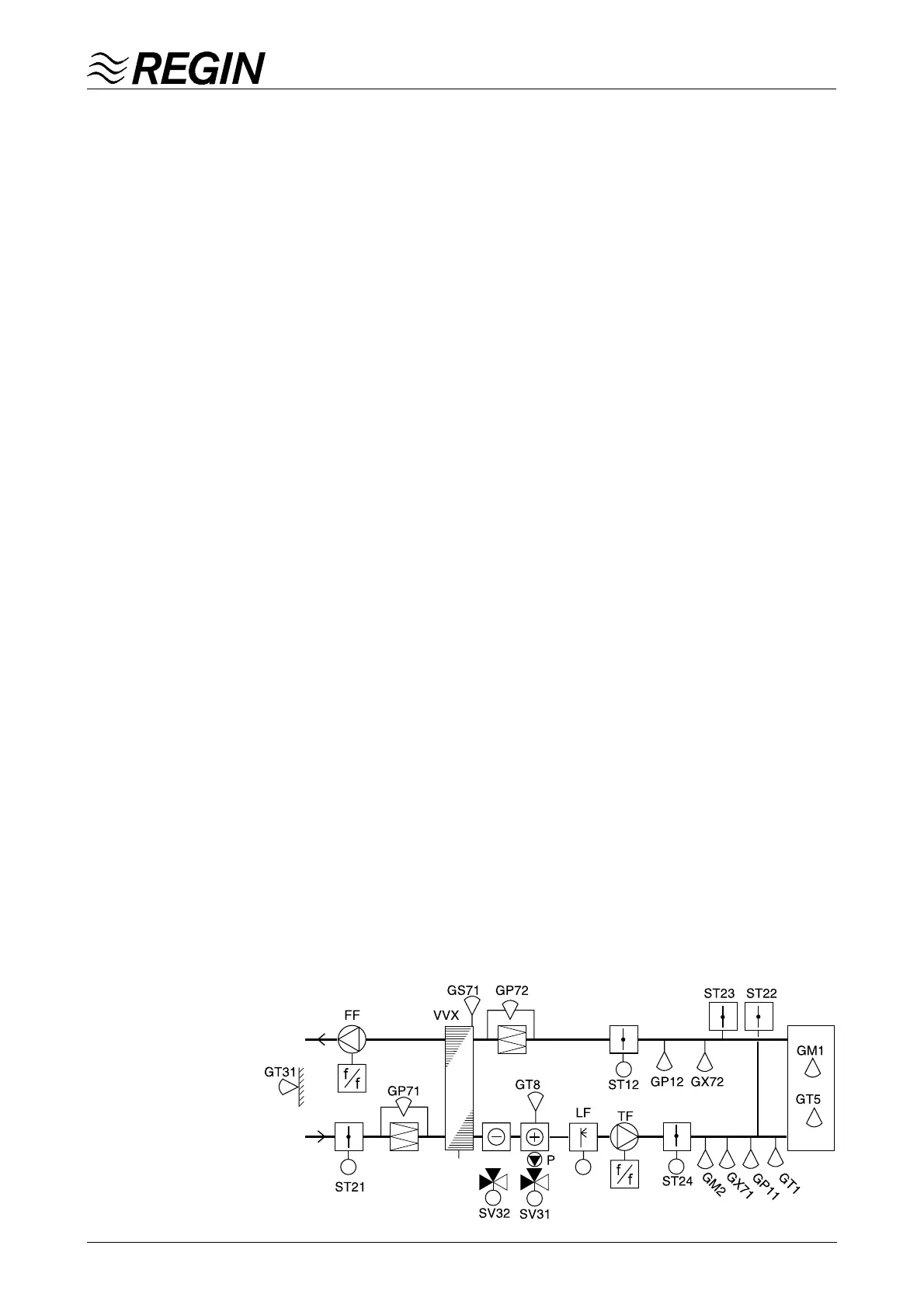

Example of an
application suitable for
controlling by the C40
model.
