Regin Regio Midi User Manual

14 Chapter 5 Installation preparations Regio Midi manual
Setting of DIP switches (models without display)
Models without display have eight DIP switches (SW1-8) for setting basic functions. They are
found on the back of the electronics cassette.

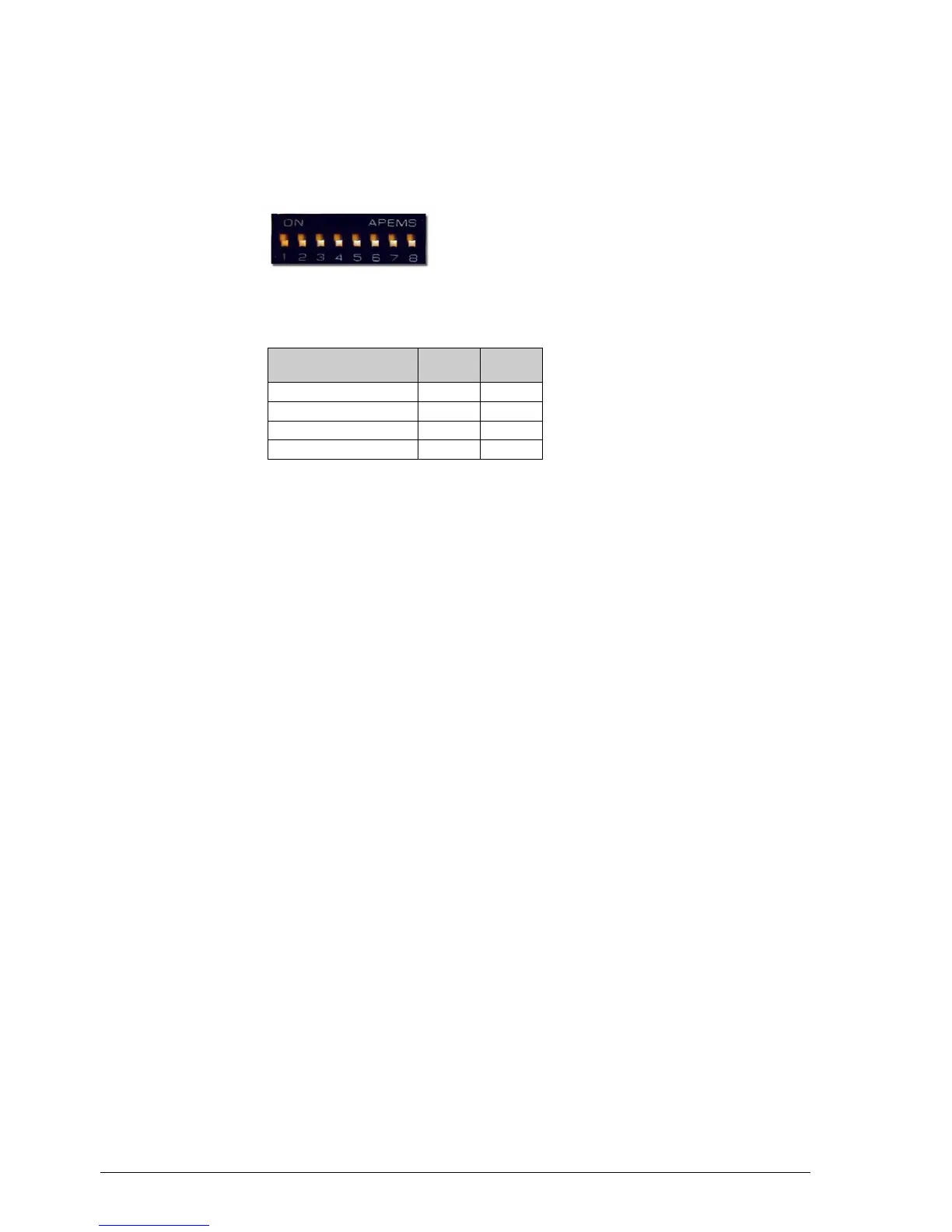

Figure 4. DIP switches
SW1-2
Basic setpoint (°C)
SW1
SW2
20
OFF
OFF
22 (FS)
OFF
ON
24
ON
OFF
26
ON
ON
Table 3. Setting of basic heating setpoint with DIP switch SW1 and SW2
See also the chapter Setpoint calculation for setting of SW1-2.
SW3 Occupied is the pre-set operating mode, SW3: OFF (FS). If you want the pre-set operating
mode to be Stand-by, set SW3 in mode ON. For more information, see the chapter Operating
modes.
SW4-8 Follow the tables in the chapter Installation for setting SW4-8.
Calibration
Calibration of a measured room temperature should be done under stable conditions.
Troubleshooting
The Manual/Auto function in Regio tool
©
makes it possible to test outputs. The output itself is
not affected; only the software object that controls the output. This means that the built-in
safety functions will not be disregarded.
The controllers have different indications which can be used for troubleshooting. See the
section Indications.
