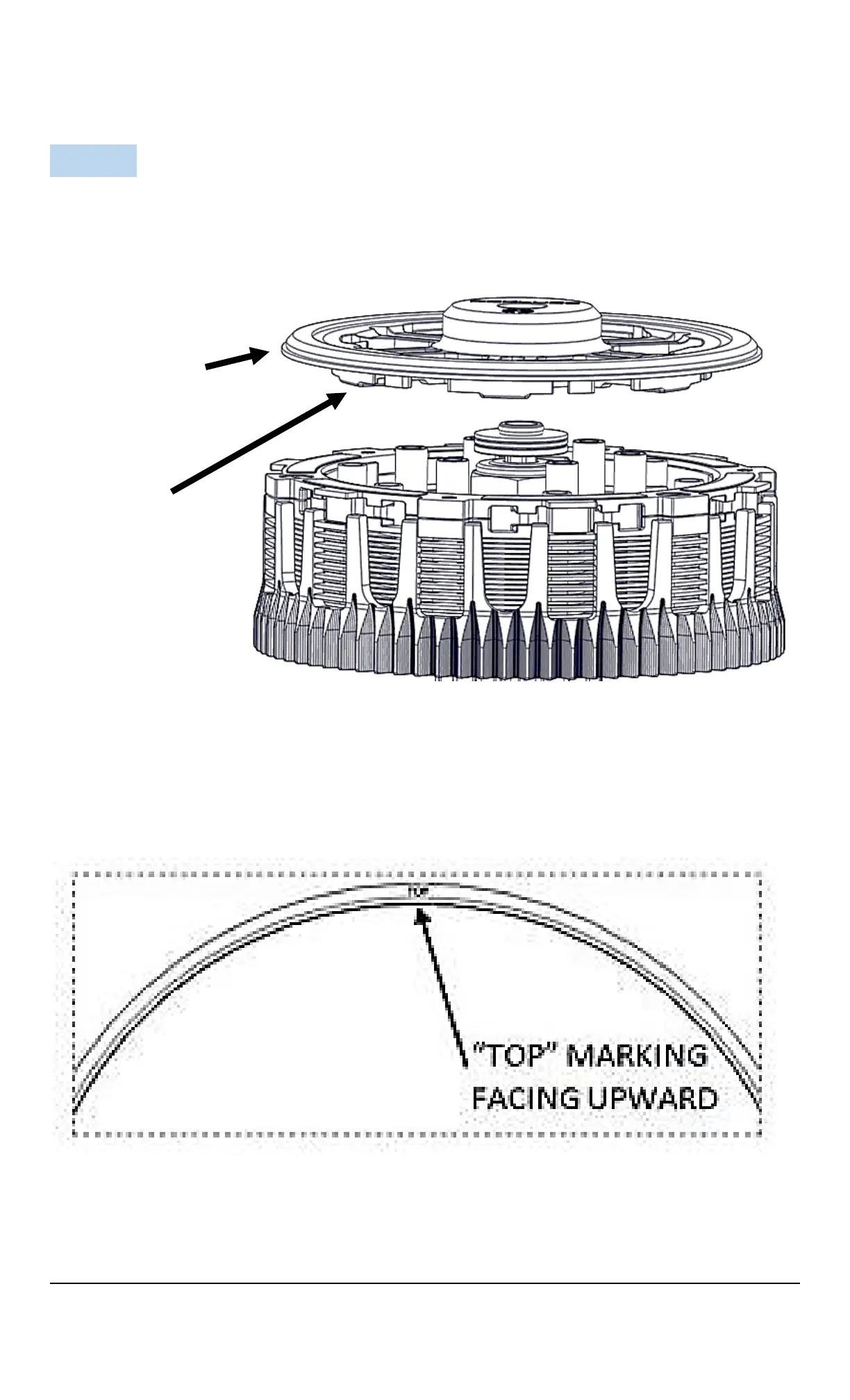

3. Install the pressure plate subassembly by lining up the
index tabs on the pressure plate with the slots in the hub.
NOTE: When the pressure plate is seated correctly, the
threaded standoffs will come through the openings of the
pressure plate.
4. Place the OE slider ring on the pressure plate with the
“top” marking facing up. (The top side is rounded and the
bottom edge is sharp.)
plate with
lining plate
hub slots
