Doc ID: 191-7913A
CLUTCH PACK INSTALLATION
The clutch pull effort has different settings and depends on
the thickness of the clutch pack. You will need to measure
the clutch pack before you begin if you wish to optimize the
clutch pull effort vs. clutch performance. Please refer to the
Setup Sheet located at the back of the manual for clutch
pack specifications and information.
Notes for Clutch Pack Installation:
• Some friction disks are marked with a small colored
dot. This mark is used for processing and can be
ignored.

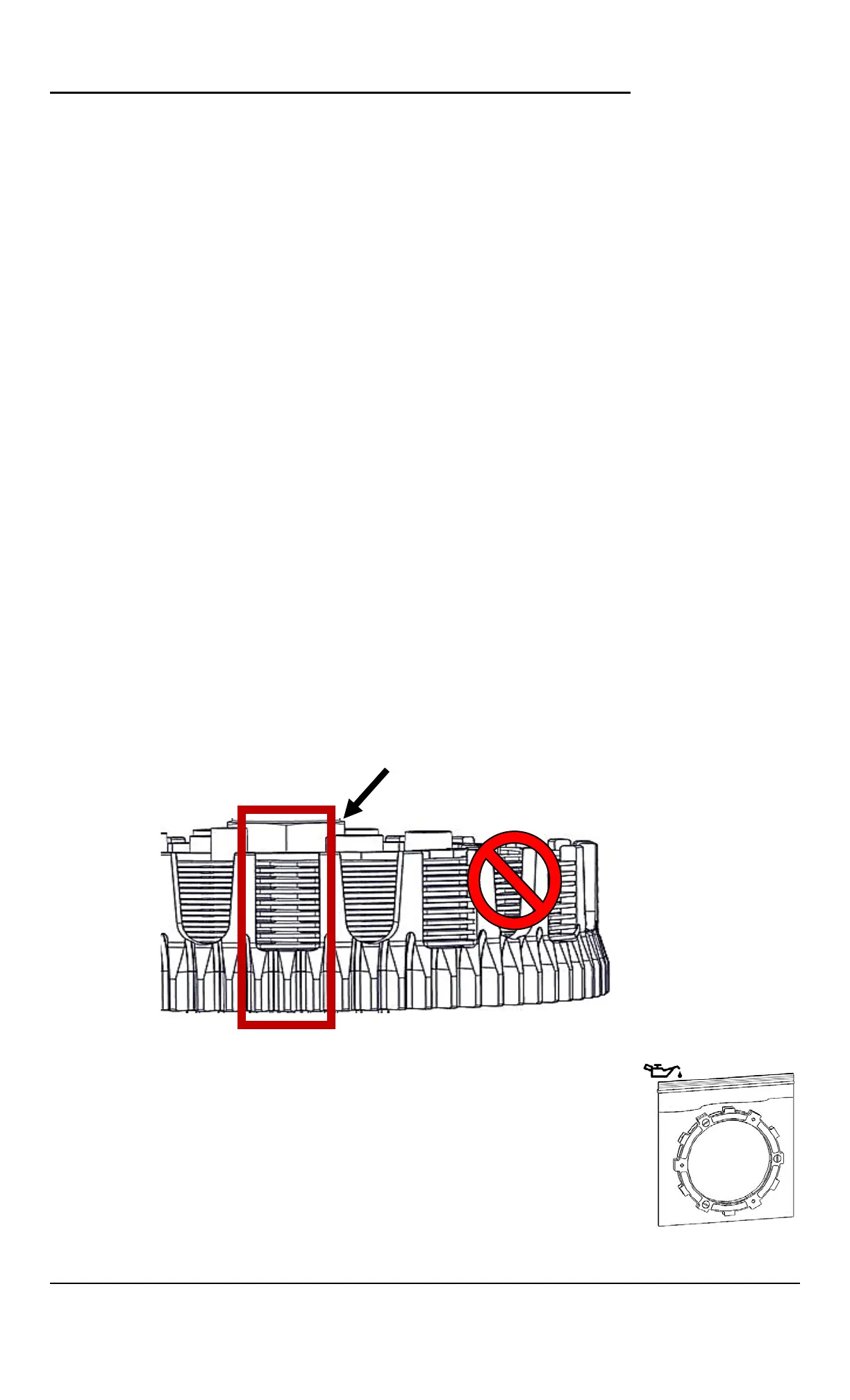

• Some OE basket have “half slots” at the top of the
basket tangs. Rekluse products require the entire
clutch pack be installed into the MAIN (deeper) basket
slots. Installing the pack in the “half slots” will cause
performance issues. See the following picture for
reference.
1. Soak the friction disks and EXP disk in
new oil for at least 5 minutes. Make sure
the EXP and friction disks are coated on
both sides.
Use main (deeper) basket slots
