PHYSICAL DIMENSIONS

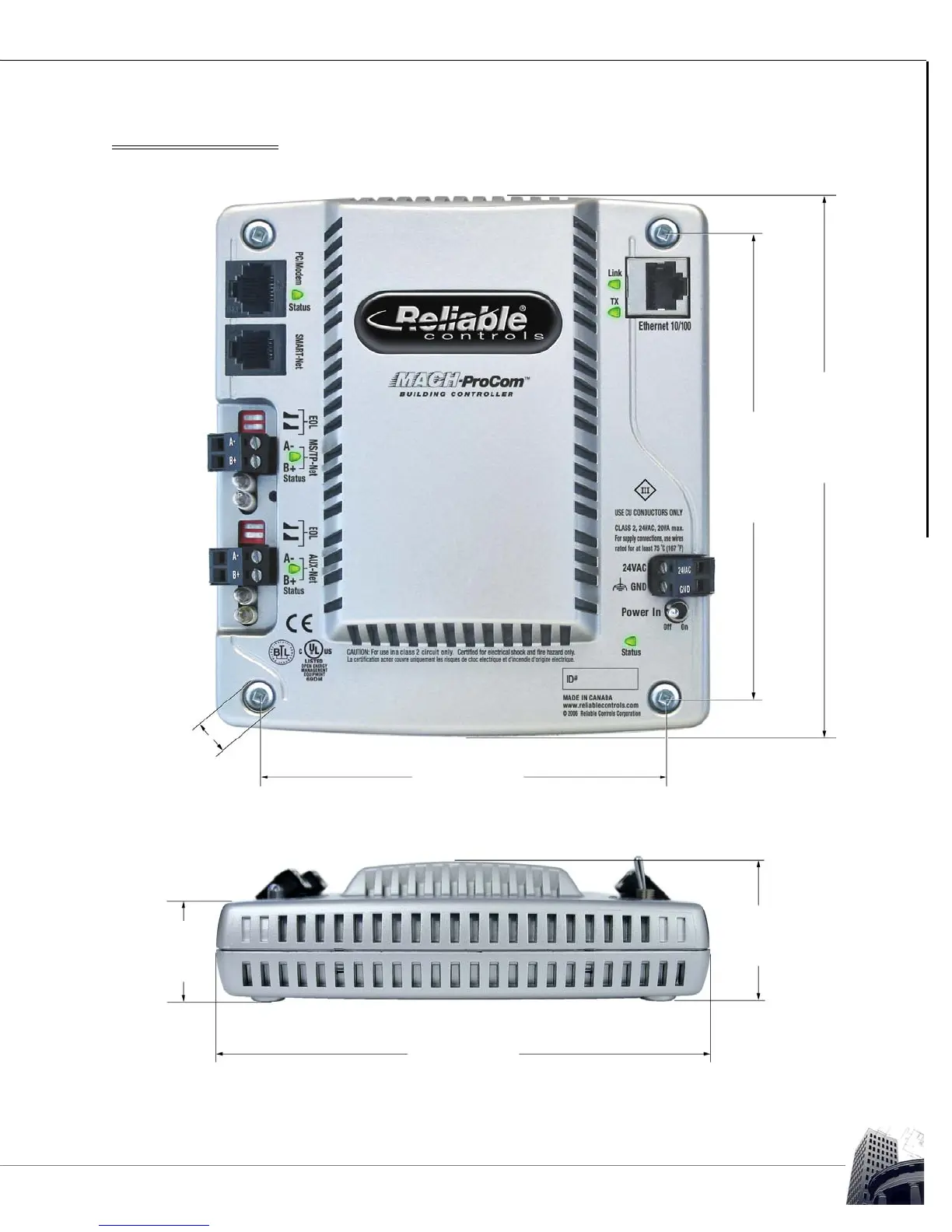

FIGURE 3: MACH-PRO(WEB)COM PHYSICAL DIMENSIONS
13.7 cm (5.39”)
11.0 cm (4 & 5/16”)
12.7 cm (5”)
3.84 cm (1 & 1/2”)
2.75 cm (1 & 1/16”)
Max Screw Head
9 mm (3/8”)
15.1 cm (5 & 15/16”)
