Reliable Controls MACH-ProCom User Manual

10
 2007 − 2015 Reliable Controls
®
Corporation. All rights reserved.
TO WIRE POWER TO THE MACH-PRO(WEB)COM

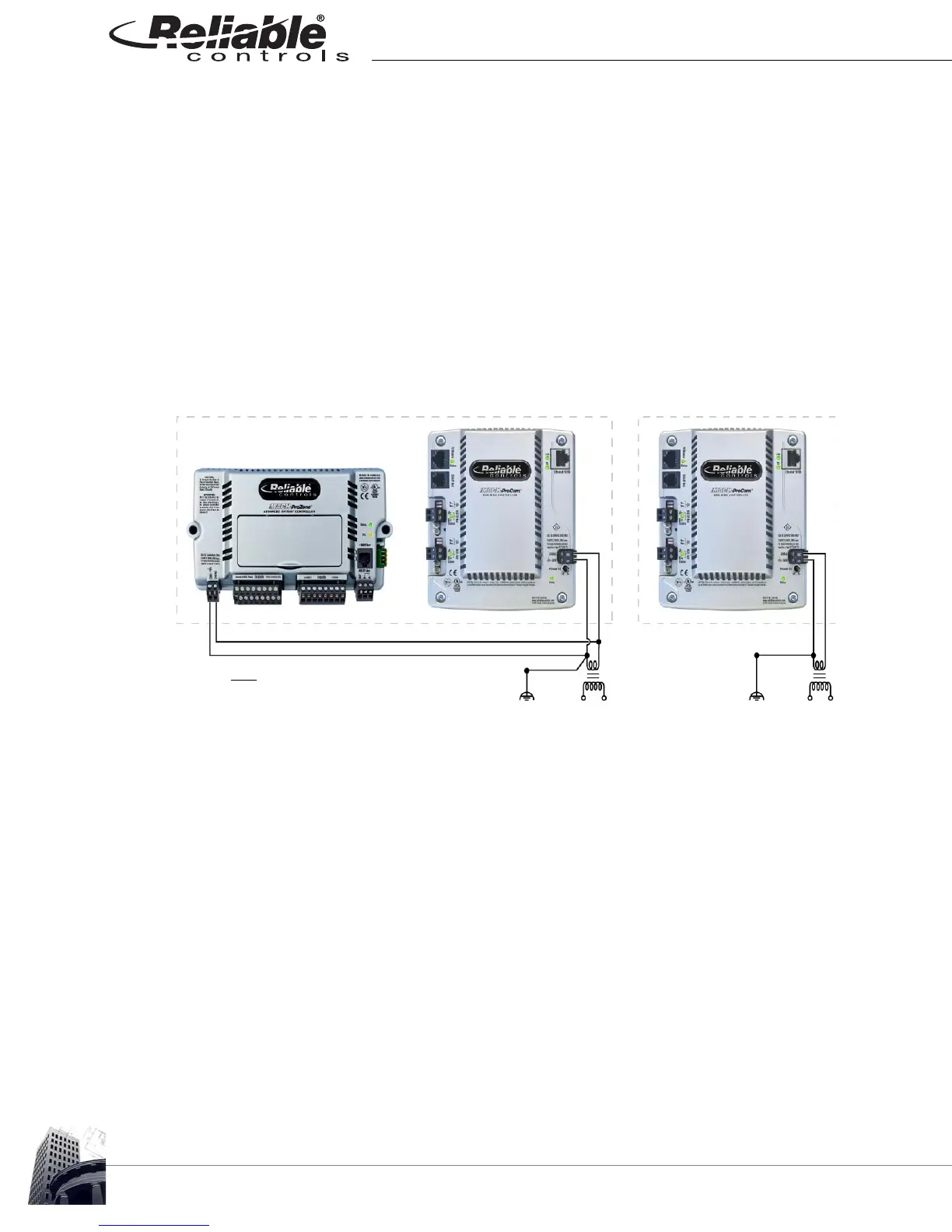

FIGURE 4: MACH-PRO(WEB)COM POWER WIRING
1 Ensure that the power switch is off.
2 Connect the hot wire to the 24 VAC terminal of the power connector.
3 Connect the return/neutral wire to the GND terminal of the power connector.
4 The return/neutral wire of the 24 VAC must be connected to Earth ground.
MACH-ProZone
™
MACH-ProCom MACH-ProCom
TRANSFORMER
GND
24 VAC
TRANSFORMER
24 VAC
GND
Enclosure #1 Enclosure #2
Ground MUST be connected to 24 VAC Return/Neutral ground.
