Indoor unit ML 523 DC IT
3
4
CE-KFR26G/BP3N1Y-11M.D.11.NP2-1
202302130860
L_IN
CN10A
CN11
CN16
CN5
CN4
CN9
CN8
L_OUT
SW1
3
5
A
4
2
1
B
C
D

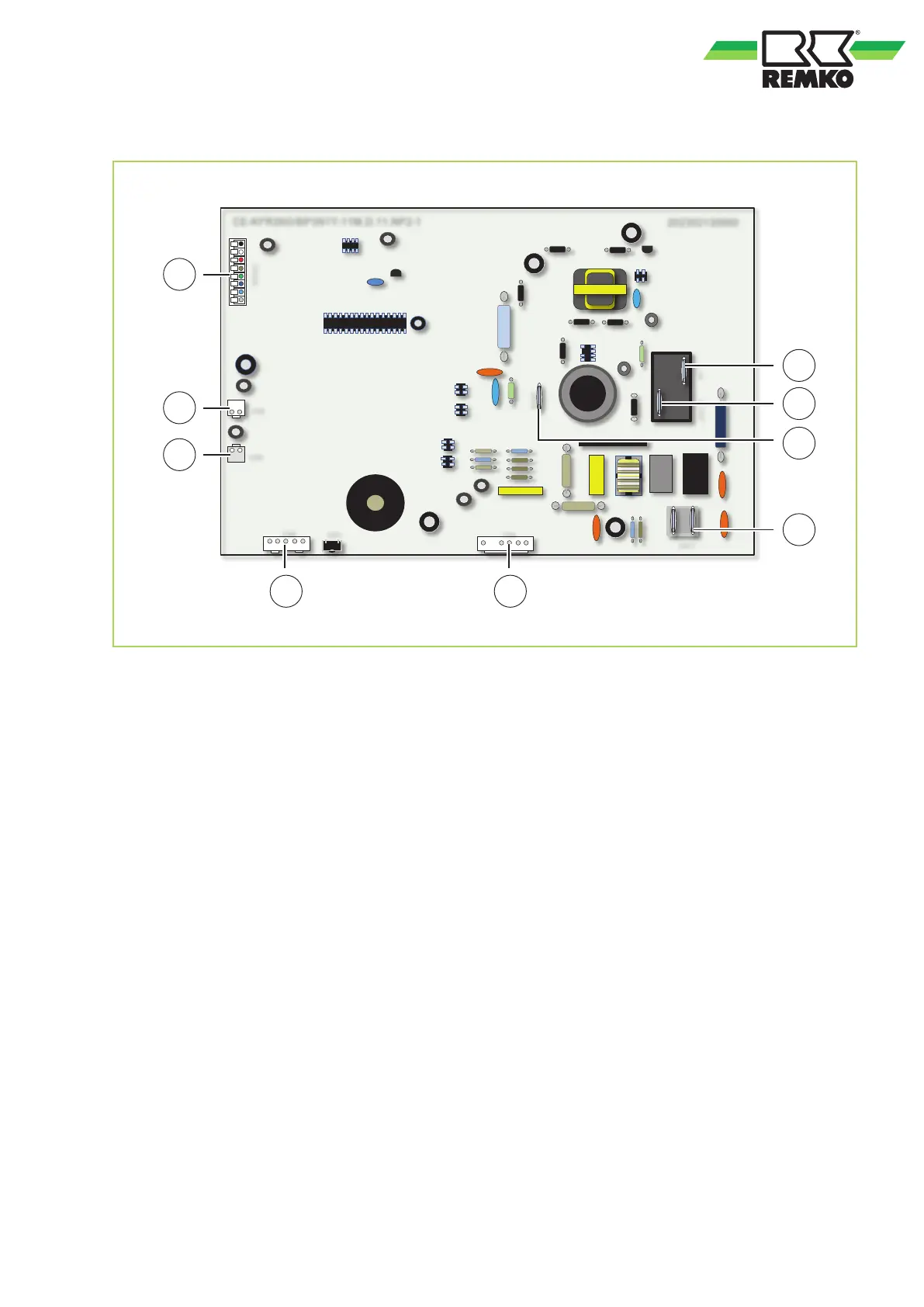

Fig. 47: Electrical drawings
A: Connection to terminal block, power supply and
supply to the indoor unit (contact 1)
B: Connection to terminal block, power supply and
supply to the indoor unit (contact L (1))
C: Connection to terminal block, power supply and
supply to the indoor unit (contact S)
D: Connection to terminal block, power supply and
supply to the indoor unit (contact 2 (N))
1: Display
2: Probe air inlet
3: Probe suction pipe
4: Swing motor
5: Evaporator fan motor
39
