REMKO ML 263 DC User Manual

Outdoor unit ML 263 DC AT
3
4
CN19
CN6
CN8
CN7
CN4
CN14
CN100
CN2
CN12
CN11
CN16
CN18
CN13
CN15
CN3
CN10
CN5
4
5
2
6
7
C
A B1
3

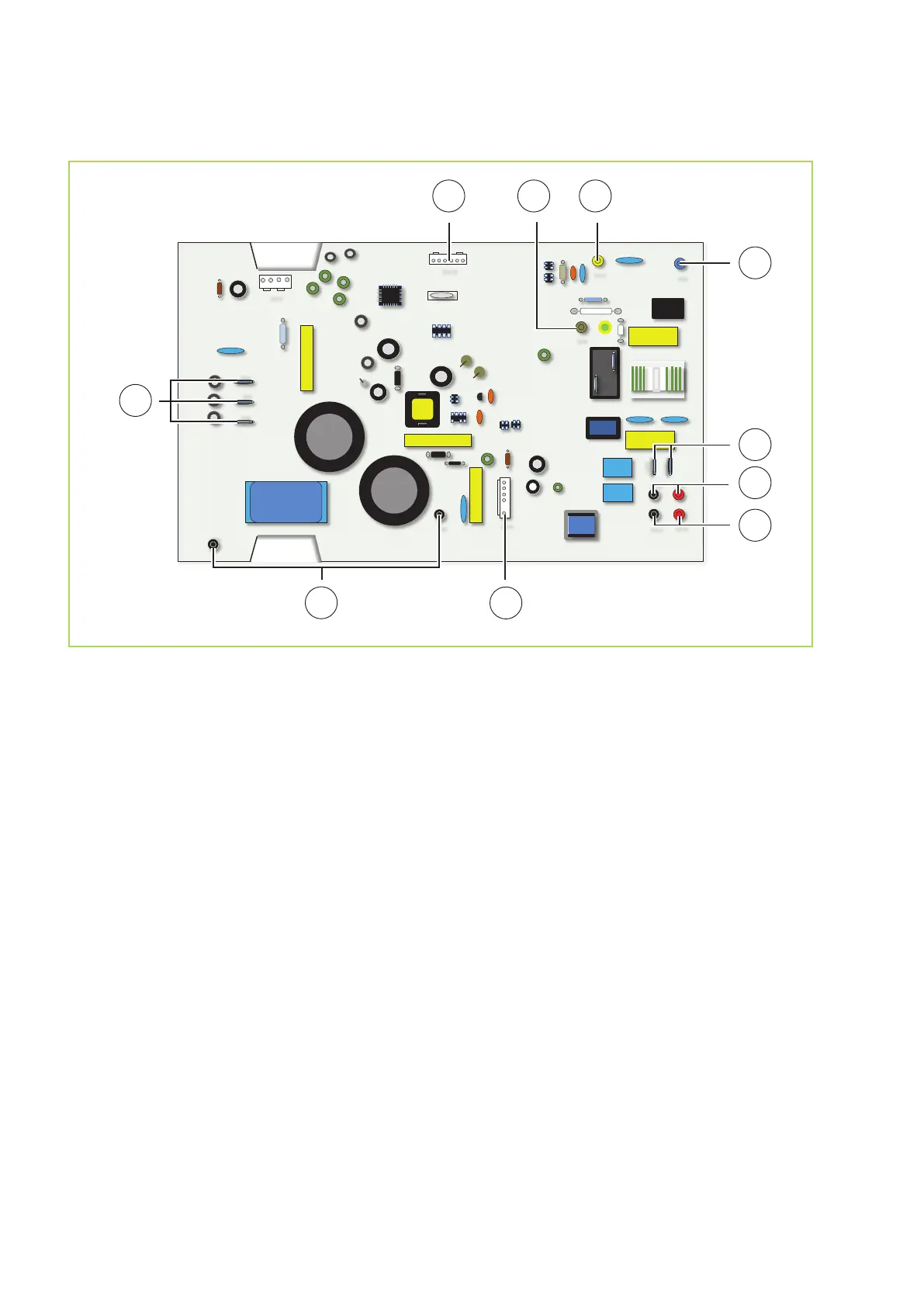

Fig. 48: Electrical drawings
A: Connection to terminal block, indoor unit (contact
L(1))
B: Connection to terminal block, supply (contact S)
C: Connection to terminal block, supply and indoor
unit (contact N und 2(N))
1: Probe heat gas , probe outside air, probe con-
denser outlet
2: Compressor
3: Inductor
4: Condenser fan
5: 4-way valve
6: Heater 1 (optional)
7: Heater 2 (optional)
REMKO ML...DC
40
