ENGINE AND PERIPHERALS
Specifications
10
10-30
RELAY SHAFT
Longitudinal play (in mm) 0.05 to 0.15

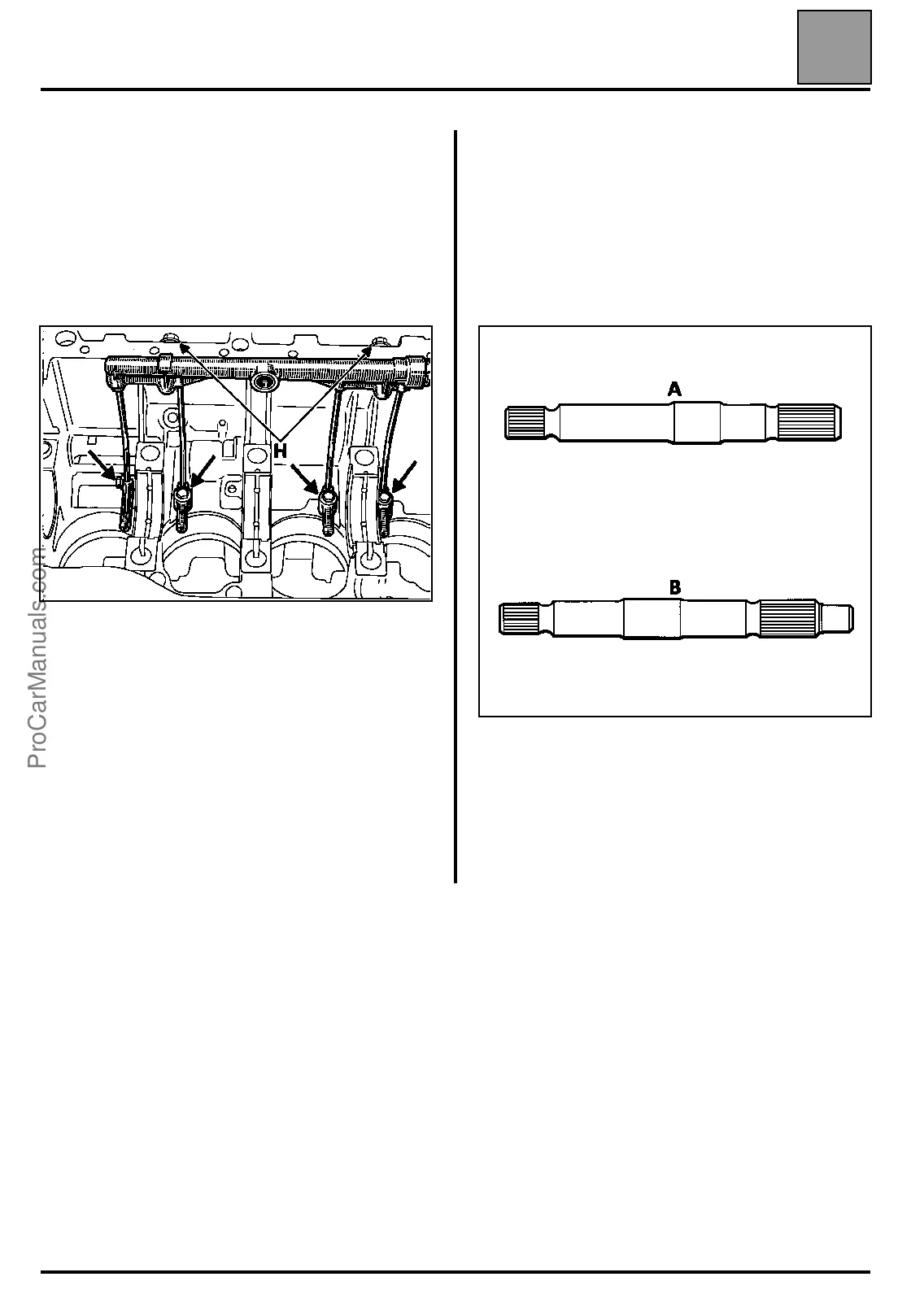

PISTON BASE COOLING RAIL
Never remove the mounting bolts (H) if the sump is
not removed.
CLUTCH SHAFT CENTERING BEARINGS
Gearbox:
– with bearing in the clutch housing: short clutch
shaft (A).
– without bearing in the clutch housing: long clutch
shaft (B).
If the gearbox is fitted with a long shaft (B) it is
essential to fit a bearing in the crankshaft. In cases
where the flywheel has no stop, cement the bearing
into the crankshaft using Loctite FRENBLOC.
If the gearbox is fitted with a short shaft (A) it is
essential to remove the bearing from the crankshaft.
86609R
16547R
