ENGINE AND PERIPHERALS
Overhauling the engine
10
10-81

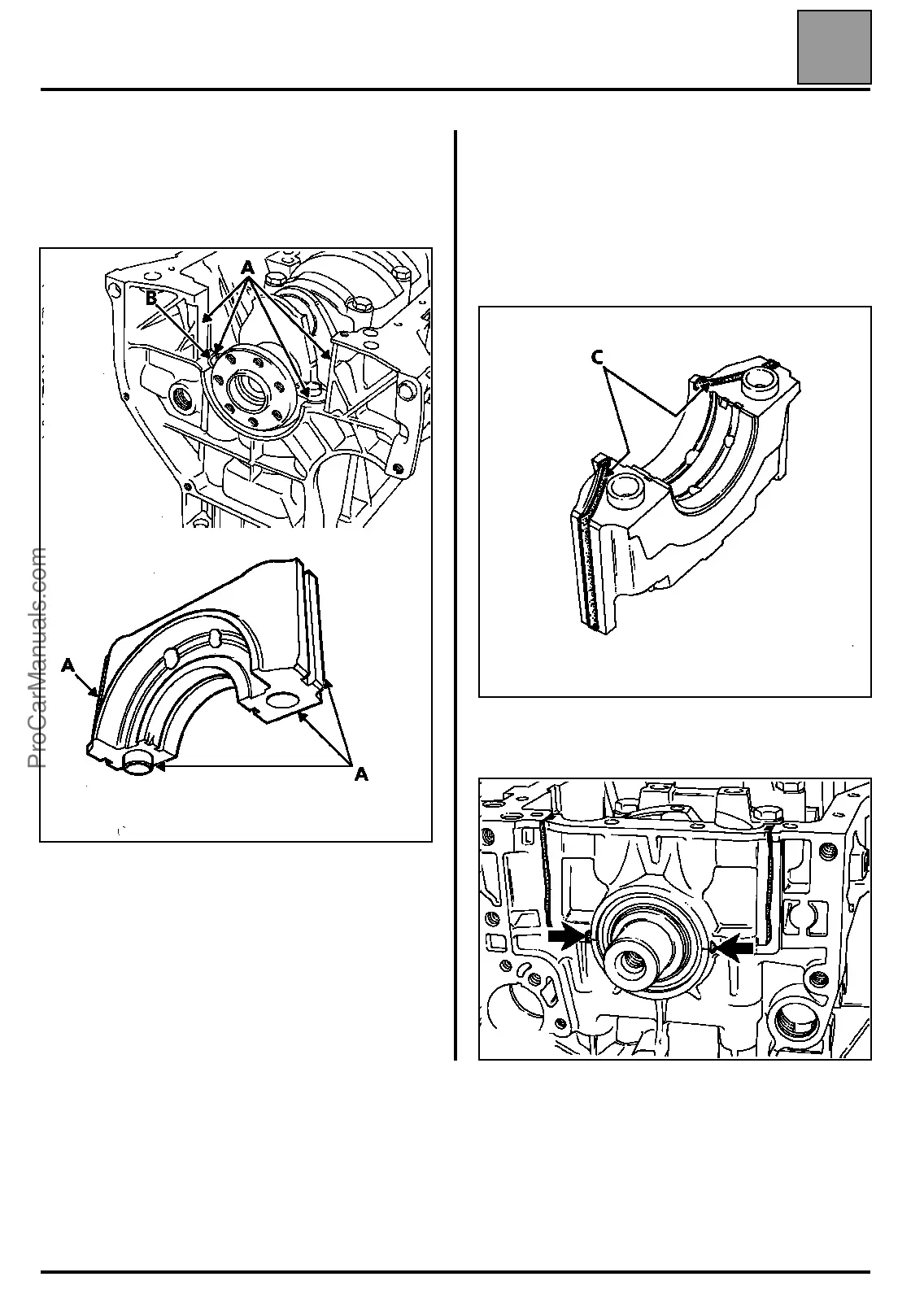

Thoroughly clean the cylinder block and the bearing
cap surfaces (A). Degrease using a cloth soaked in
diluted cleaning agent.
Allow to dry.
NOTE: older engines have grooves (B) in their cylinder
blocks. Do not obstruct these oil grooves when
applying RHODORSEAL 5661.
NOTE: New fitting (J engine)
The bearing caps have watertight grooves (C).
Following modifications to the bearing caps:
– do not coat the inner surfaces of the cylinder block,
– fit the crankshaft and timing seal(s) before injecting
the silicone.
– let the silicone run out through the watertight grooves
on the crankshaft bearing.
96597R
