ENGINE AND PERIPHERALS
Overhauling the engine
10
10-92

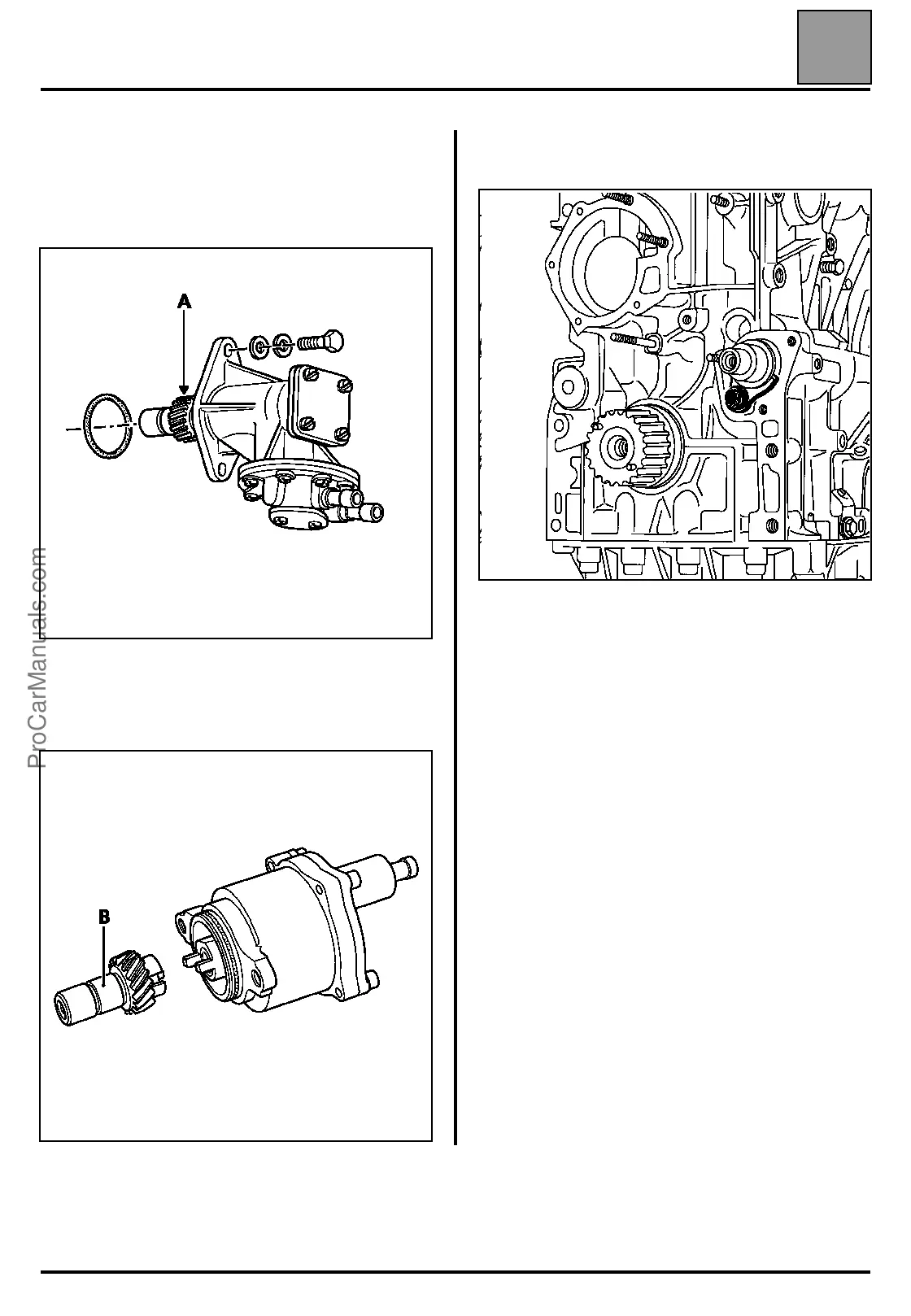

Refitting the relay shaft
Refit the vacuum pump.
On APG pumps, the pinion (A) is force fitted.
On the BARMAG pumps, the pinion (B) is not fixed to
the pump. Refit the relay shaft before refitting the
pinion (B).
Oil and fit the relay shaft, tightening the clamp bolts to
a torque of 1 daNm.
16548R
16524R1
16557S
