ENGINE AND PERIPHERALS
Overhauling the engine
10
10-93

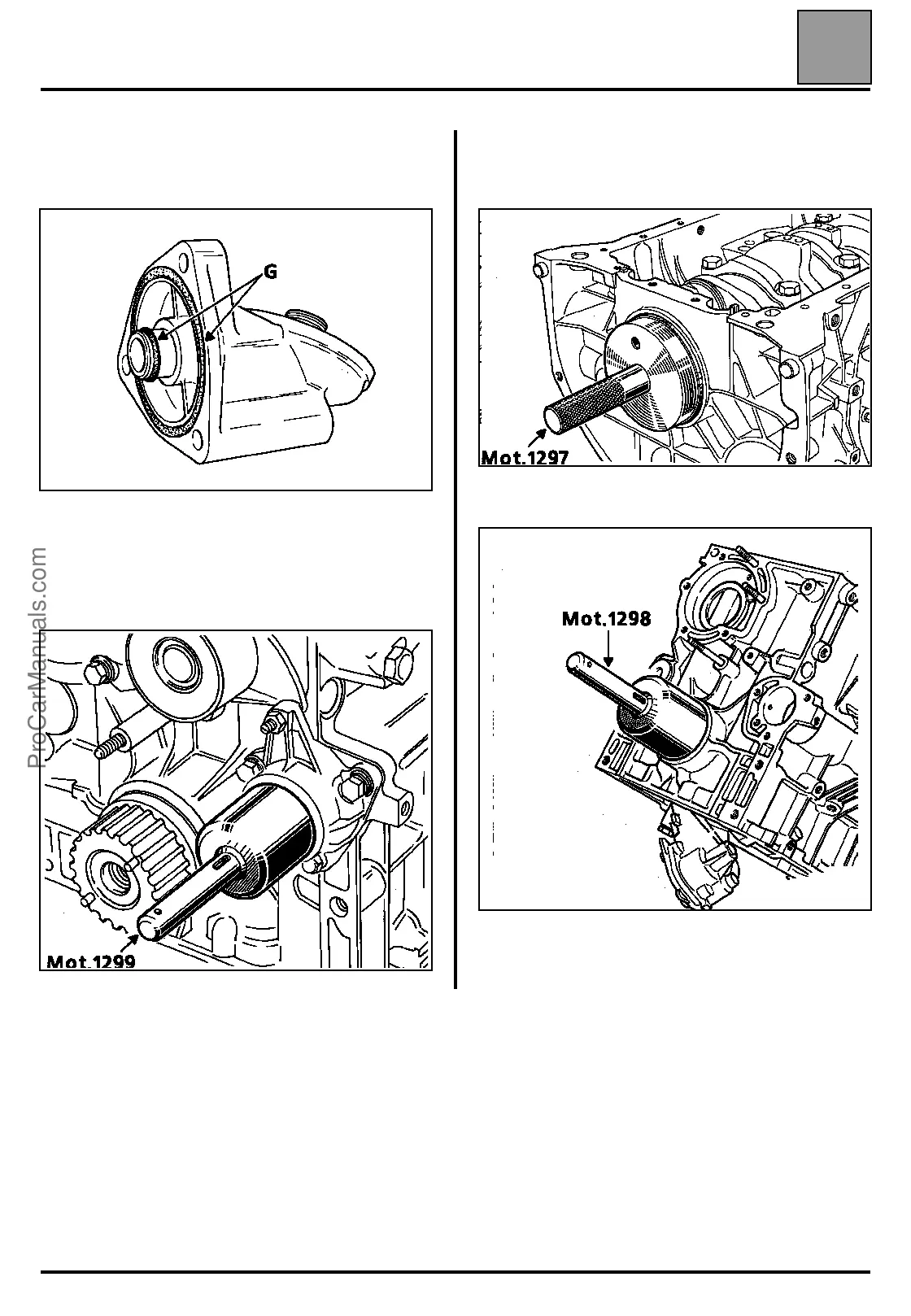

Refitting the oil filter holder
Replace the O-rings (G) when refitting.
Fitting the relay shaft seal
Push the seal in until tool Mot. 1299 butts up against
the holder.
Fitting the crankshaft seals
– flywheel side, Mot. 1297.
– timing side, Mot. 1298.
If the seal lip marks the crankshaft mating face, a
1.5 mm thick washer must be placed between the seal
and the tool to shift the mating face.
83334R
