Réglage des faisceaux (HJB - Renault)

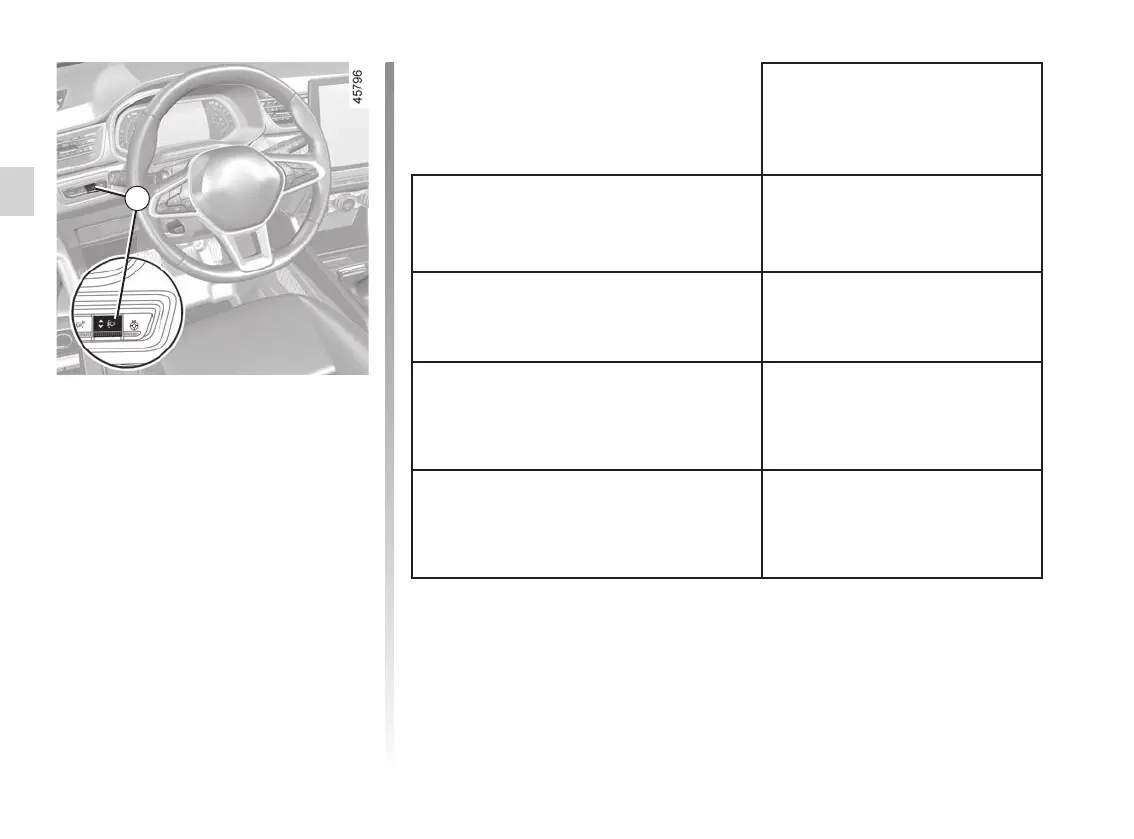

Switch A is used to adjust the height of
the headlight beams according to the
load.
With the dipped beam headlights lit,
press or lift switch A as many times as
is necessary to select the required posi-
tion on the instrument panel.
Note: depending on the vehicle, when
the engine is started, the position se-
lected is displayed on the instrument
panel for approximately 30 seconds
and for 5 seconds each time switch A
is pressed.
Headlight beam adjustment
HEADLIGHT BEAM ADJUSTMENT
Examples of positions for
adjusting
control A according to the load
Driver alone or with front passenger 0
All seats occupied 1
Driver with passengers and luggage
(or load) reaching the maximum
permissible all-up weight
3
Driver without passengers and luggage
(or load) reaching the maximum
permissible all-up weight
4
* depending on the vehicle
The table below gives some examples. In all cases, adjust control A accord-
ing to the vehicle load so that the road can be seen and other drivers are not
dazzled.
A
