Fusibles (HJB - Renault)
Fuses
Fuse box
If any electrical component does not
work, check the condition of the fuses.

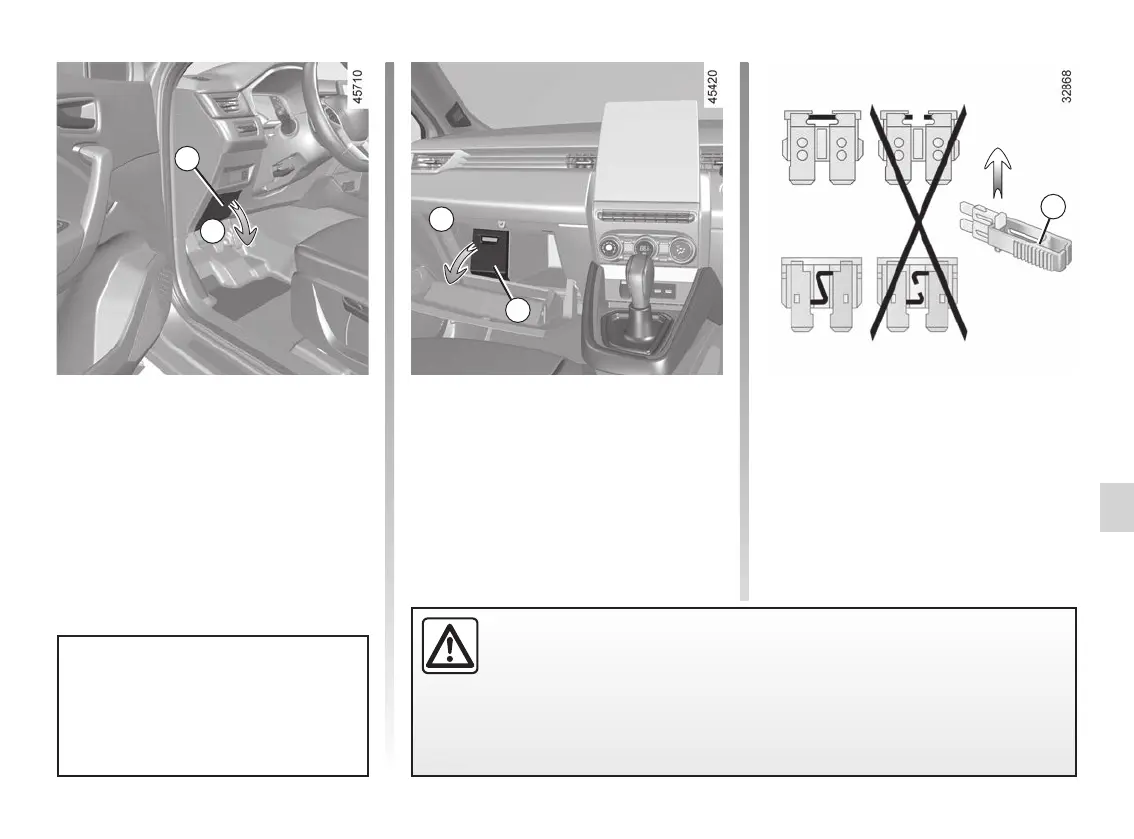

Passenger compartment fuses A
Unclip the access flap 1.
FUSES (1/3)
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Fuses located in the passenger
compartment behind a flap in the B
glovebox
Unclip the access flap 2.
A
C
Check the fuse in question and replace it, if necessary, by a fuse of the
same rating.
If a fuse is fitted with too high a rating, it may cause the electrical circuit
to overheat (risk of fire) in the event of an item of equipment using an ex-
cessive amount of current.
1
2
Tweezers 3
Remove the fuse using the tweezers 3
on the back of the flap.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
B
3
