Caméra de recul (HJB - Renault)
Reversing camera
REVERSING CAMERA (1/3)
Operation

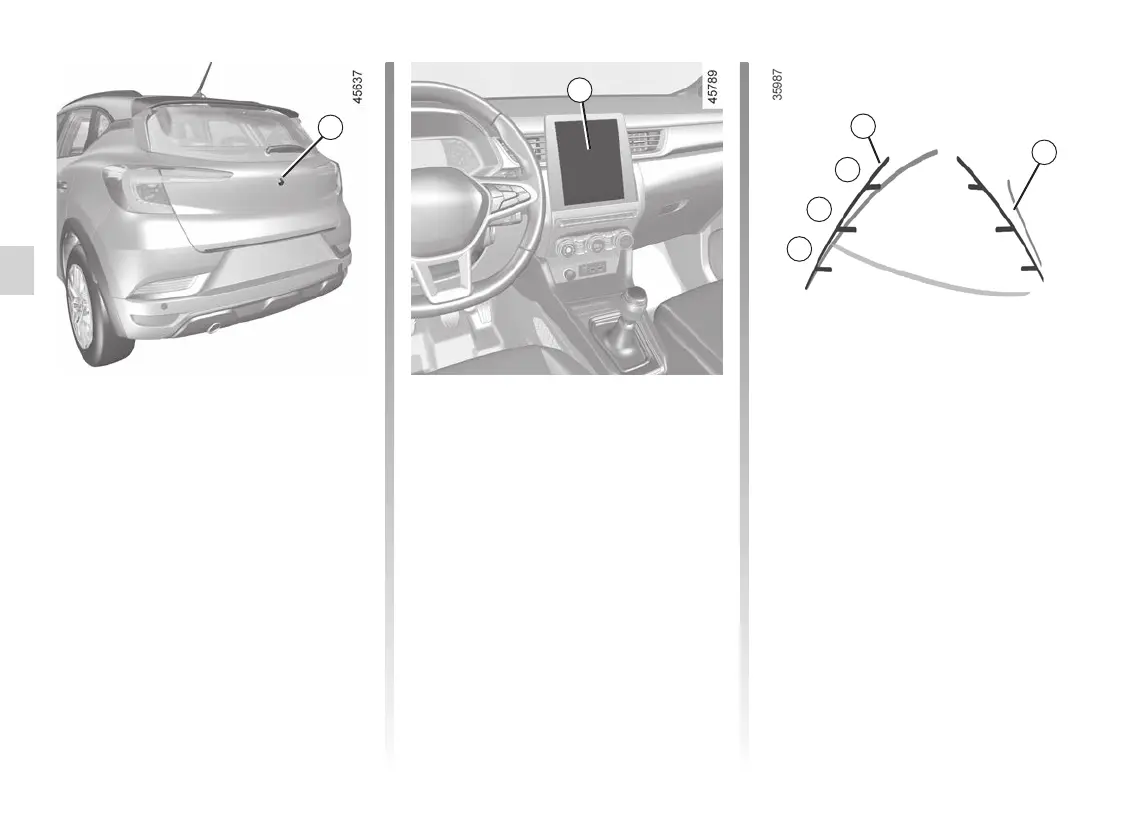

When the vehicle is reversing, the
camera 1 on the luggage compart-
ment lid transmits a view of the area
surrounding the rear of the vehicle to
the multimedia display 2 accompanied
by two guiding lines 3 and 4 (fixed and
mobile).
This system uses several guidelines for
its operation (mobile for trajectory and
fixed for distance).
When the red zone is reached, use the
bumper image to stop accurately.
2
Fixed clearance gauge 3
The fixed clearance gauge comprises
coloured markers A, B and C indicating
the distance behind the vehicle:
– A(red) approximately 30 centimetres
from the vehicle;
– B (yellow) approximately 70 centime-
tres from the vehicle;
– C (green) approximately 150 centi-
metres from the vehicle.
This gauge remains fixed and indicates
the vehicle trajectory if the wheels are
in line with the vehicle.
4 moving guide line:
This is shown in blue on the multimedia
screen 2.
It indicates the vehicle trajectory ac-
cording to the position of the steering
wheel.
Special feature
Make sure that the camera is not ob-
scured (by dirt, mud, snow, condensa-
tion etc.).
3
C
B
A
4
1
