Caméra 360° (HJB - Renault)
360° CAMERA (3/9)
6
C
B
A
7
The front, rear and side view guide-
lines are a representation projected
onto flat ground; this information
must not be taken into account
when superimposed on a vertical
object or an object on the ground.
Objects displayed on the edge of
the multimedia screen may appear
distorted.
In very bright light (snow, vehicle in
sunshine etc.), the camera vision
may be adversely affected.
5

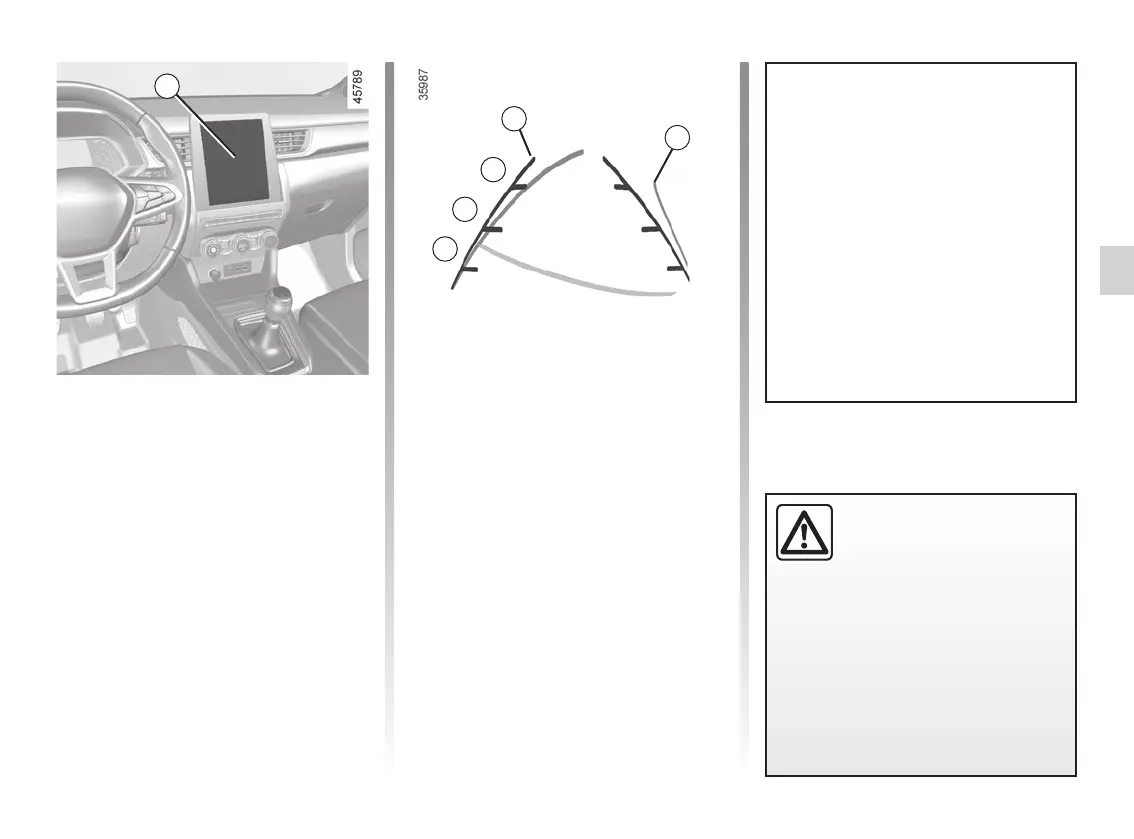

Rear view 3 (continued)
Fixed clearance gauge 6
The “front” or “rear” view transmitted to
the multimedia screen 5 is displayed
with one or two guidelines 6 and 7.
This system is initially used with the aid
of several gauges (mobile for trajectory
and fixed for distance).
In the combined represen-
tation from the cameras:
– raised objects (pavement,
vehicle, etc.) may appear
distorted in bird’s eye view;
– any objects on top of the vehicle
are not displayed.
The fixed clearance gauge comprises
coloured markers A, B and C indicating
the distance behind the vehicle:
– A(red) approximately 30 centime-
tres from the vehicle;
– B(yellow) approximately 70 centi-
metres from the vehicle;
– C(green) approximately 150 centi-
metres from the vehicle.
Dynamic gauge 7 (depending on the
vehicle)
This is shown in blue on the multime-
dia screen 5. It indicates the vehicle tra-
jectory according to the position of the
steering wheel in the front and the rear
view.
