TOP AND FRONT OF ENGINE
Timing belt
11
15865S
16014S
16017S
16018S

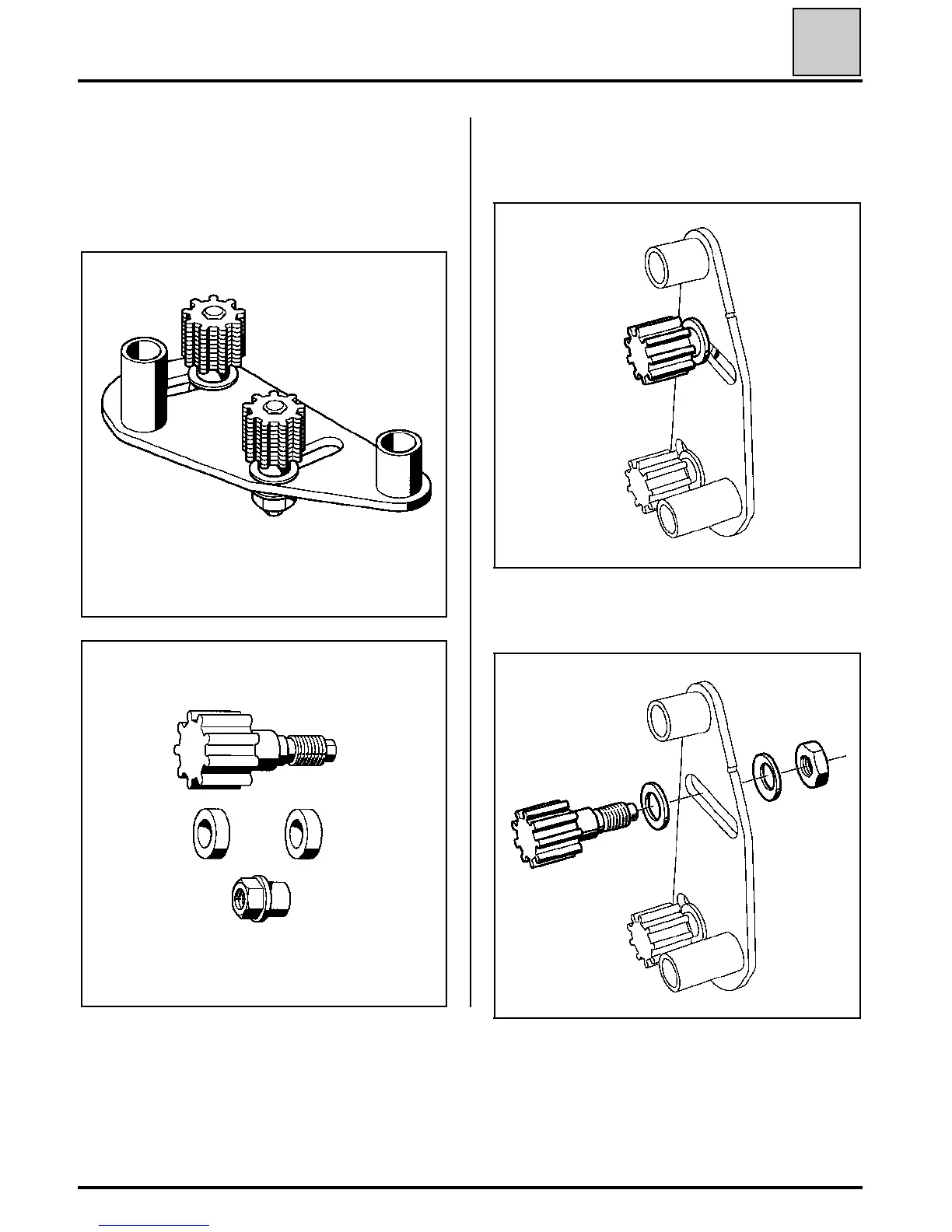

Preparation of tool Mot. 1509
Remove the upper toothed pinion from the
bracket.
In its place fit the toothed pinion of tool
Mot. 1509-01 (reusing the two washers and the
nut of Mot. 1509).
Procedure for slackening the exhaust camshaft
pulley and the inlet camshaft phase shifter.
The operation is carried out using tools Mot. 1509
and Mot. 1509-01.
