TOP AND FRONT OF ENGINE
Timing belt
11
16019R
16019-1R

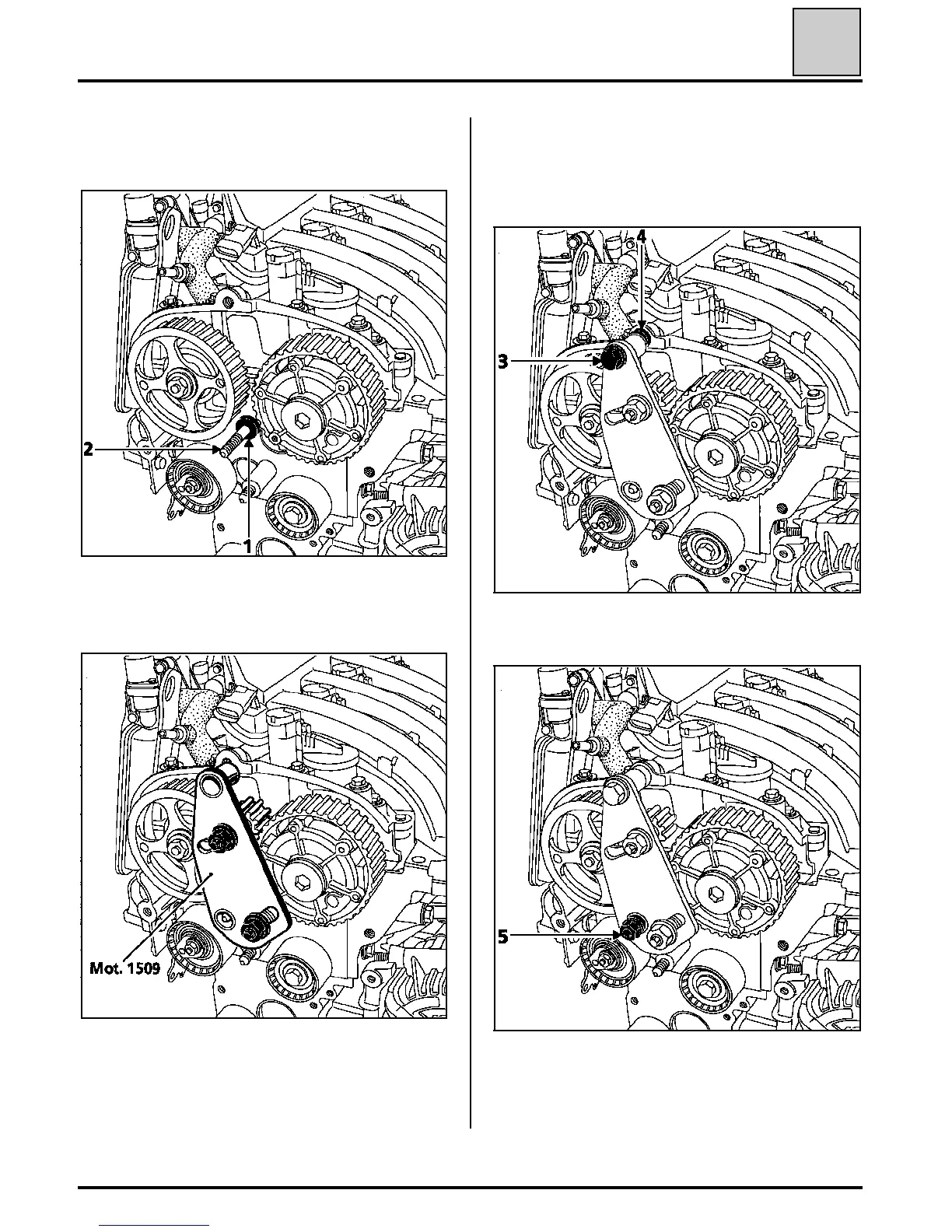

Tool Mot. 1509 is fitted by offering it up from the
front, between the pinions and the shock absor-
ber turret and pivoting it around the lower pin.
- the nut (5) of tool Mot. 1509-01.
16019-2R
16019-3R
Fit:
- the spacer (1) of tool Mot. 1509-09 on the stud
(2),
- tool Mot. 1509 as indicated on the diagram be-
low,
- the upper bolt (3) while positioning the spacer
(4) of tool Mot. 1509-01 between the tool and
the camshaft bearing cap housing (do not tigh-
ten the bolt).
11-9
