TOP AND FRONT OF ENGINE
Timing belt
11
16019-4R
16019-5S
16015R1
16015-1R1
- the exhaust camshaft pulley nut,
- the inlet camshaft phase shifter bolt.

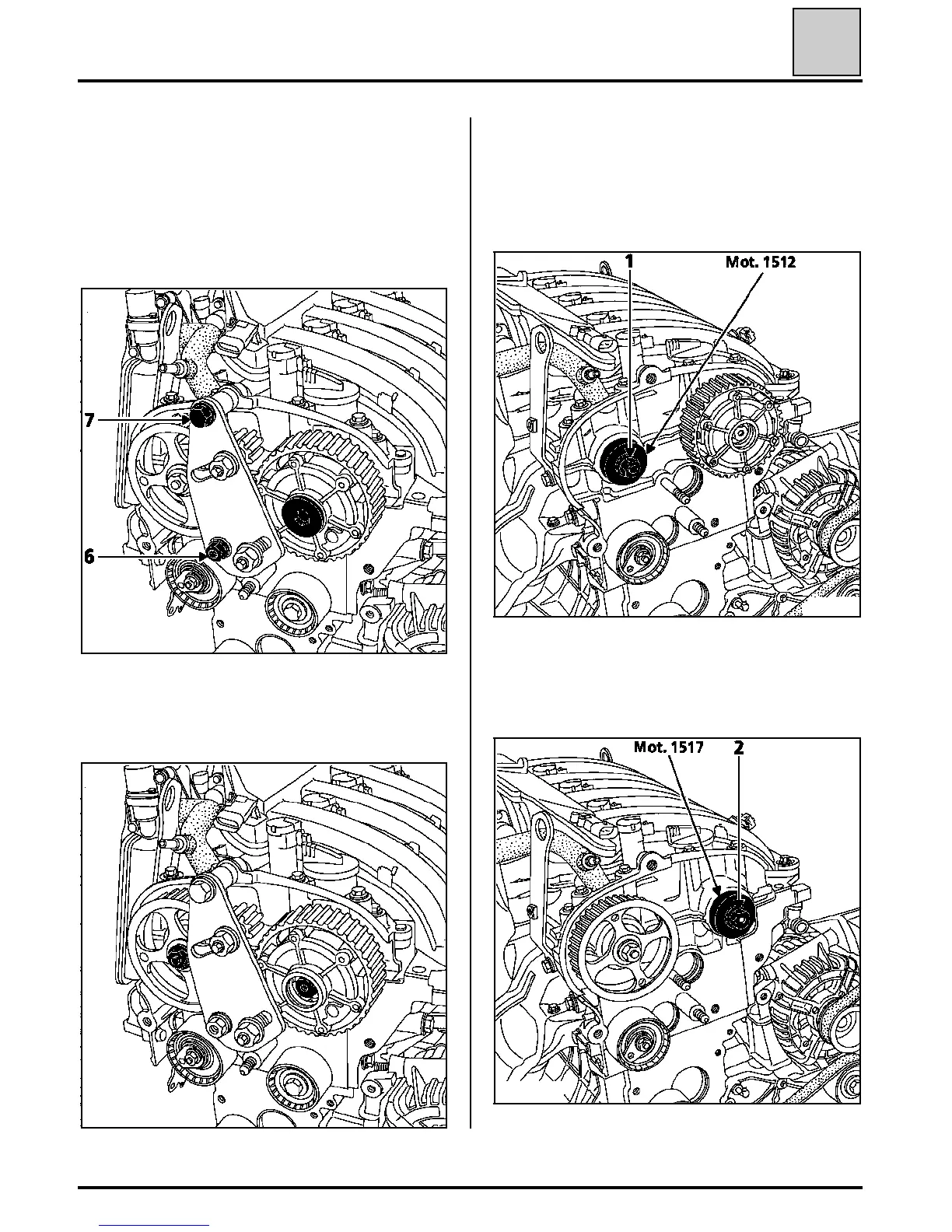

Tighten the lower nut (6) and the upper bolt (7),
then immobilise the pulleys using the toothed pi-
nions of tool Mot. 1509.
Remove:
- the inlet camshaft phase shifter blanking piece
using a 14 mm hexagonal wrench,
Replacement of the camshaft seals
Fitting of the exhaust camshaft seal using tool
Mot. 1512 using the old nut (1).
Fitting of the inlet camshaft phase shifter seal
using tool Mot. 1517 using the old bolt (2).
11-10
