TOP AND FRONT OF ENGINE
Timing belt
11
15106-1S

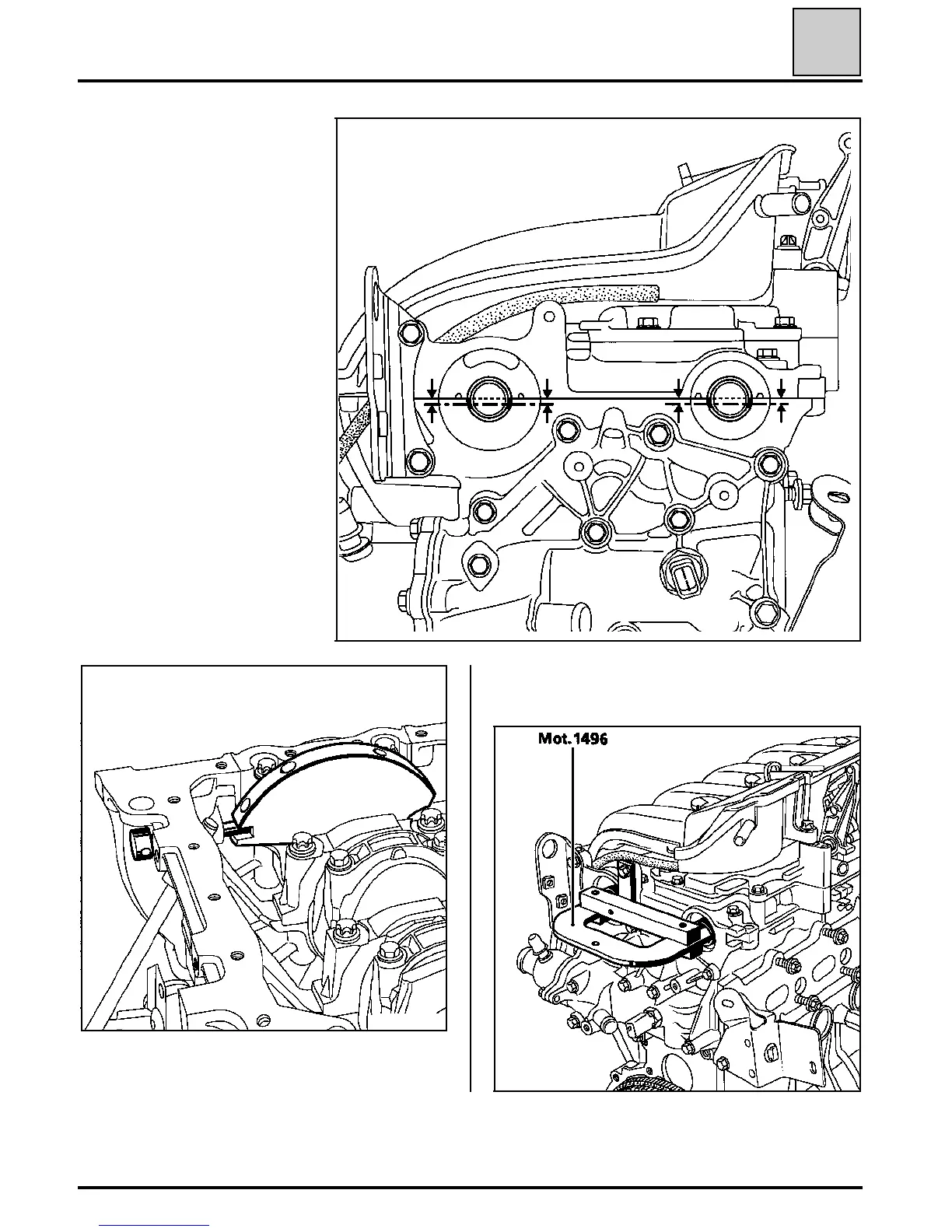

Fit tool Mot. 1496 which is secured at the end of
the camshafts.
15104R
15163-1S
Turn the engine clockwise (ti-
ming end), to the timing set-
ting point.
The camshaft grooves should
be horizontal and offset down-
wards as indicated on the dia-
gram below.
11-24
