Renault Espace - Page 34

TOP AND FRONT OF ENGINE
Timing belt
11
Remove the Top Dead Centre pin.

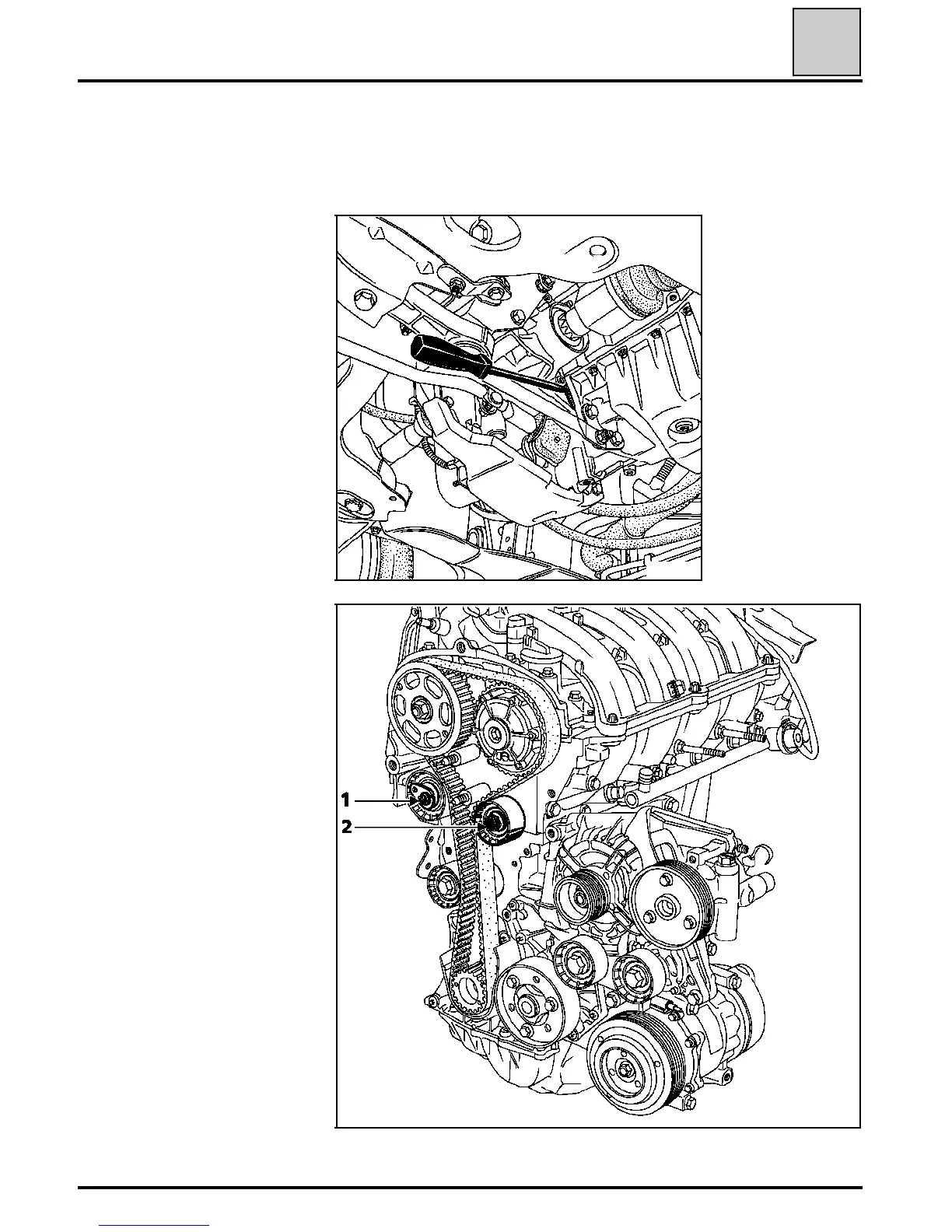

Immobilise the engine flywheel using tool Mot.
582-01 or a large screwdriver.
15303S
15815-5R
Remove the accessories cranks-
haft pulley.
Slacken the timing tensioner
by unscrewing nut (1).
Remove the pulley (2).
11-25
