TOP AND FRONT OF ENGINE
Timing belt
11
15163S
Pinned crankshaft
15163-1S
15114R

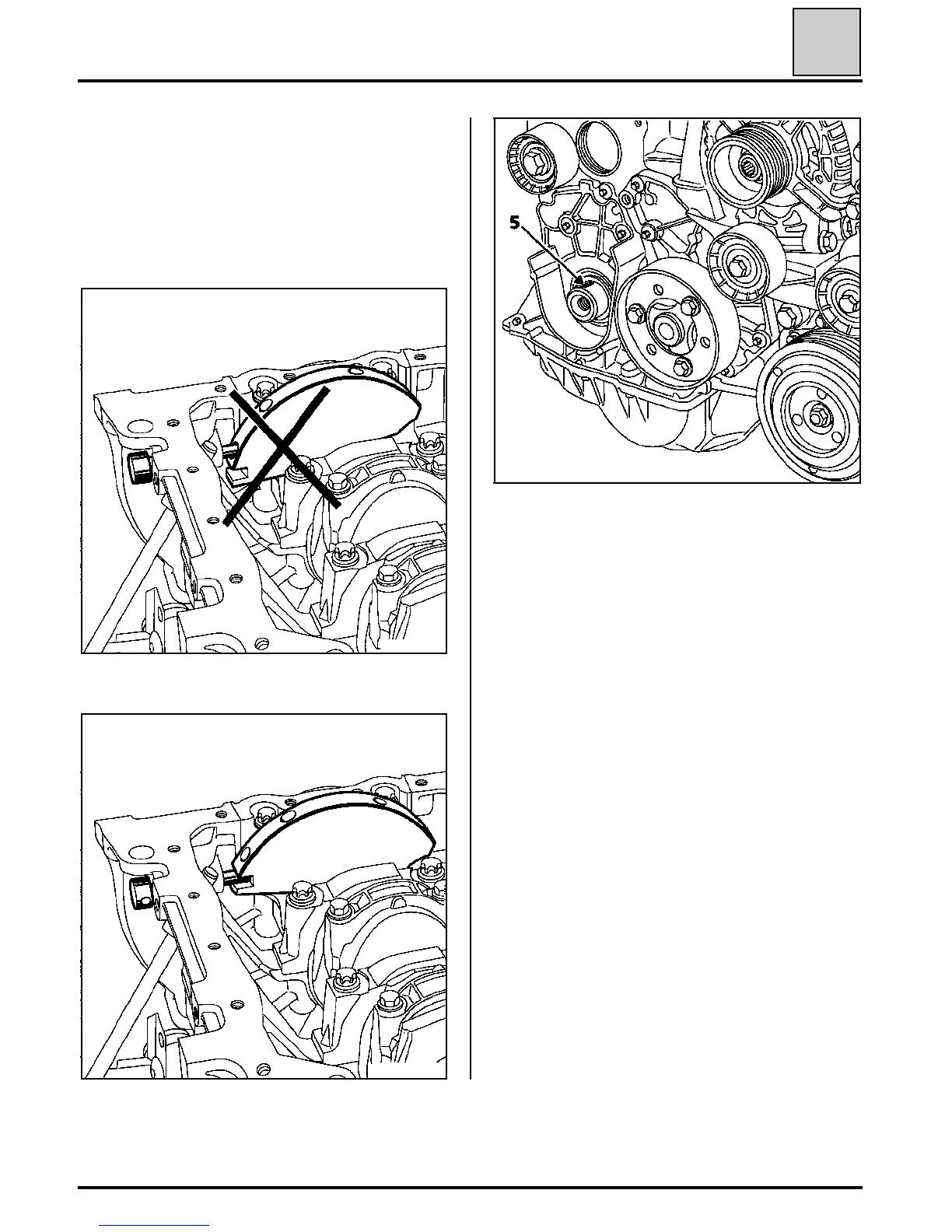

Remove the timing belt.
Check that the crankshaft is correctly pinned at
Top Dead Centre and not in the balancing hole (1)
(crankshaft groove (5) should be in the vertical
centreline of the engine).
Incorrect position
