TOP AND FRONT OF ENGINE
Timing belt
11
15815-8R
15303S

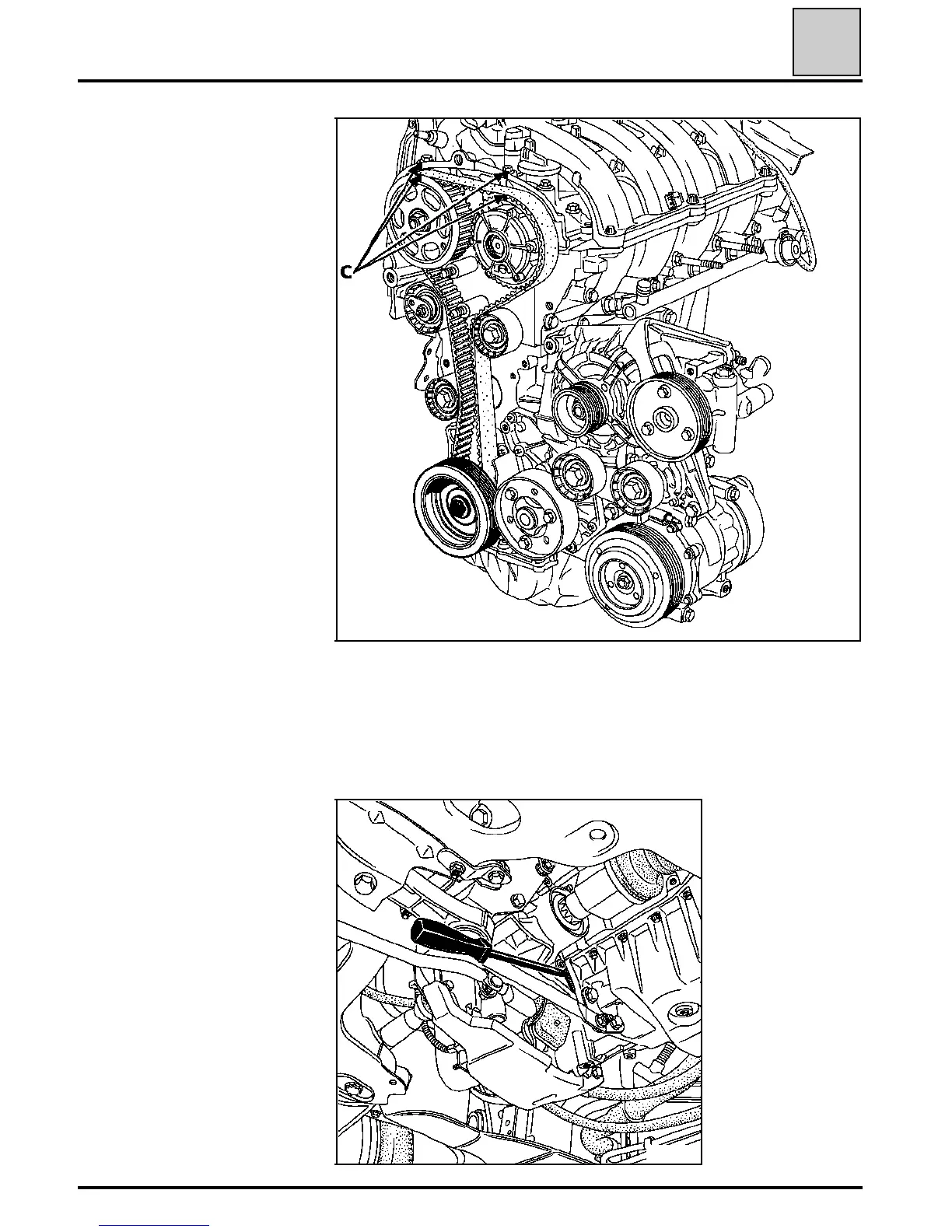

Make a mark (C) on the inlet
camshaft phase shifter crown
wheel and the exhaust pulley
in relation to the camshaft
bearing cap housing.
Remove camshaft setting tool Mot. 1496 and Top
Dead Centre pin Mot. 1054.
Carry out the angular tightening of the crankshaft
pulley bolt to 115°± 15°, while immobilising the
engine flywheel using a large screwdriver.
