COOLING
Cooling assembly
19
11010M

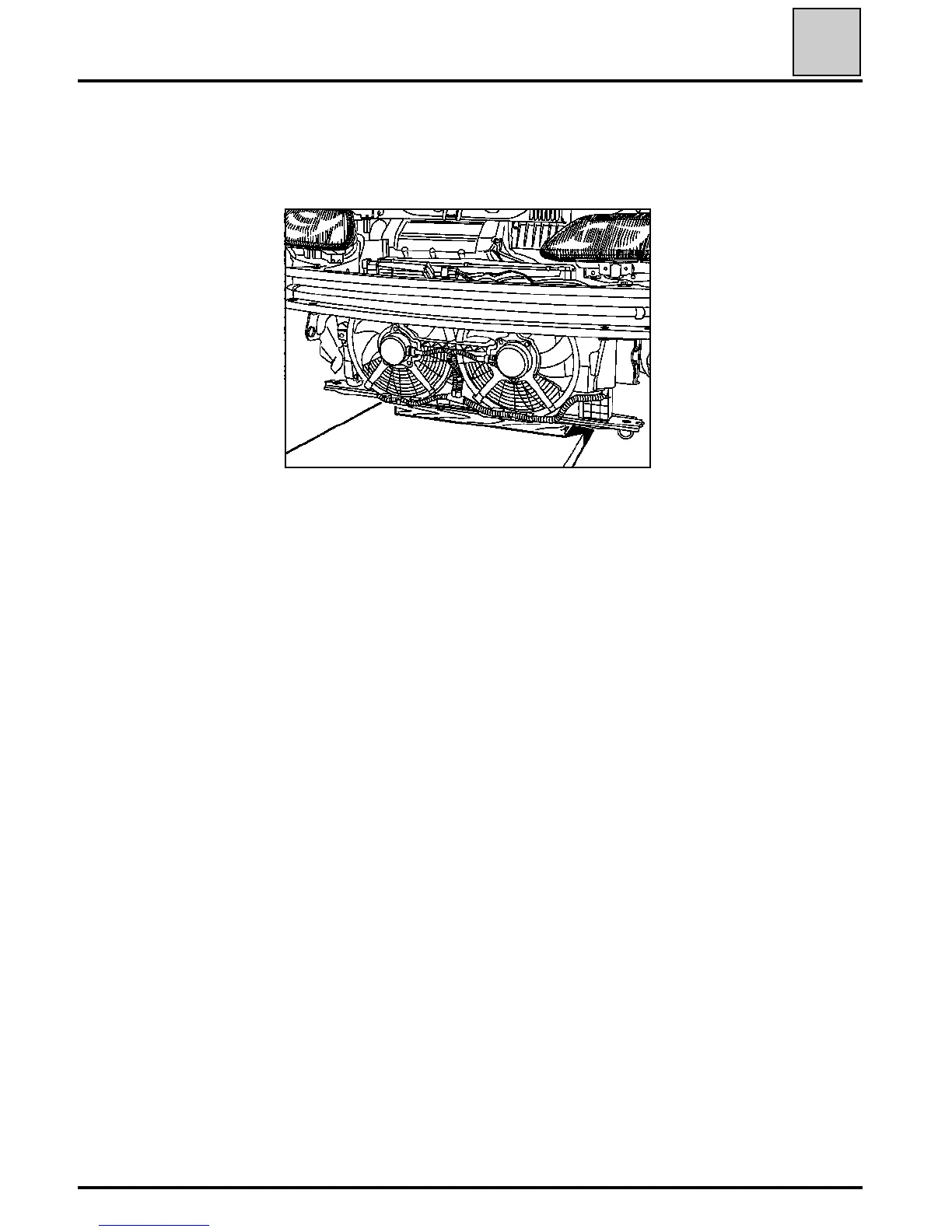

Place the radiator lower crossmember on one or
two shims so that it is supported and it is possible
to gain access to the mounting bolt on the ends of
the side members.
Remove the two mounting bolts securing the
crossmember on the side members and lift the ve-
hicle to remove the cooling assembly.
REFITTING
Work in a pair to refit the cooling assembly. If ne-
cessary, grease the upper mounting rubbers on
the headlight-carrier crossmember.
If necessary, remove the radiator grille to make it
possible to guide the upper radiator aligners in
the headlight-carrier crossmember.
Proceed in the reverse order to removal.
Fill the refrigerant circuit (if fitted) and the co-
olant circuit.
Reconnect the battery, put back into operation all
the units which were disrupted by its disconnec-
tion.
Bleed the engine and check the sealing of the co-
oling and air conditioning circuits.
19-3
