tableau de bord : afficheurs et indicateurs (X62 - Renault)

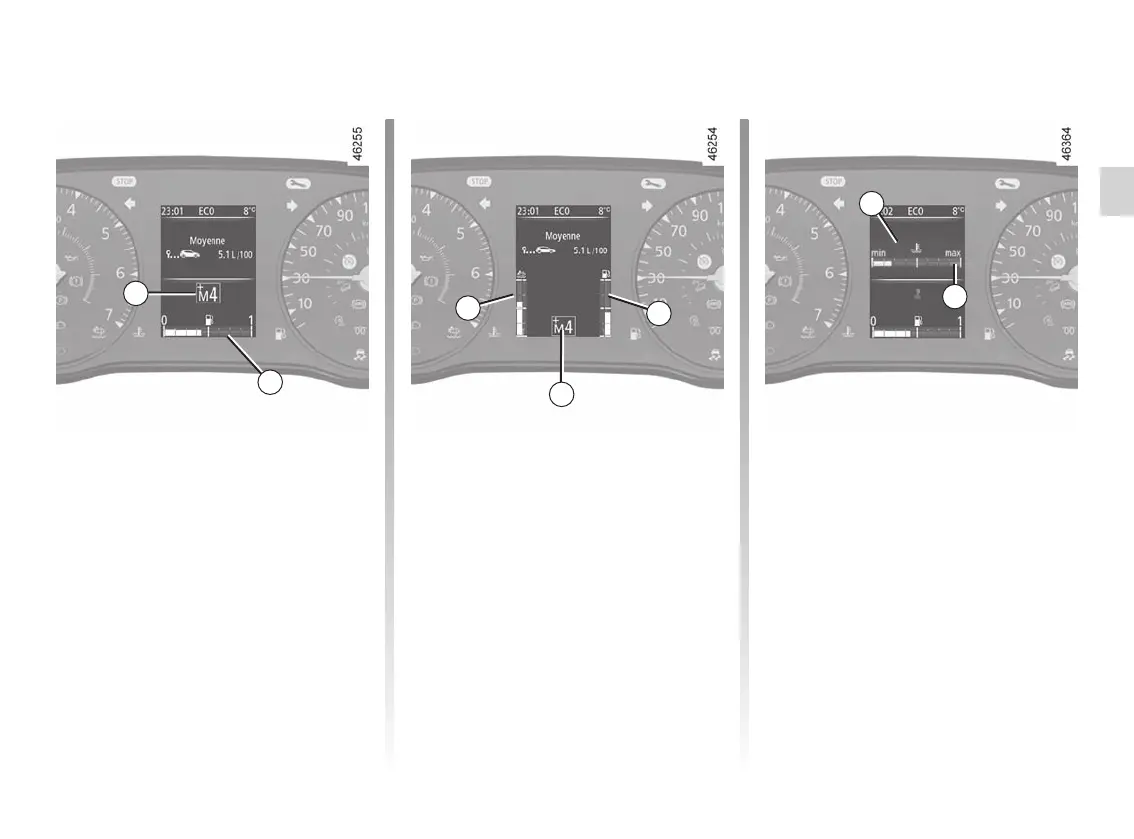

DISPLAYS AND INDICATORS (2/2)
The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.
Reagent gauge 5
Depending on the vehicle
If the minimum reagent level is reached,
the warning light
 appears and a
beep sounds. ➥ 1.120.
5
4
Gearbox display 3
This indicates the gear engaged
➥ 2.59.
Fuel gauge 4
If the minimum fuel level is reached,
the warning light
 appears and a
beep sounds. Fill up as soon as pos-
sible.
3
3
4
Coolant temperature indicator 6
In normal use, indicator 6 should be
before area 7. Under "intensive" oper-
ating conditions, the needle may ap-
proach this zone. This is not serious
unless the warning light
® comes
on accompanied by a message on the
instrument panel and a beep.
6
7
