Renesas RA Family Getting Started with Low Power Applications for RA6 and
RA4 Groups
R11AN0471EU0104 Rev.1.04 Page 36 of 40
Oct.1.21

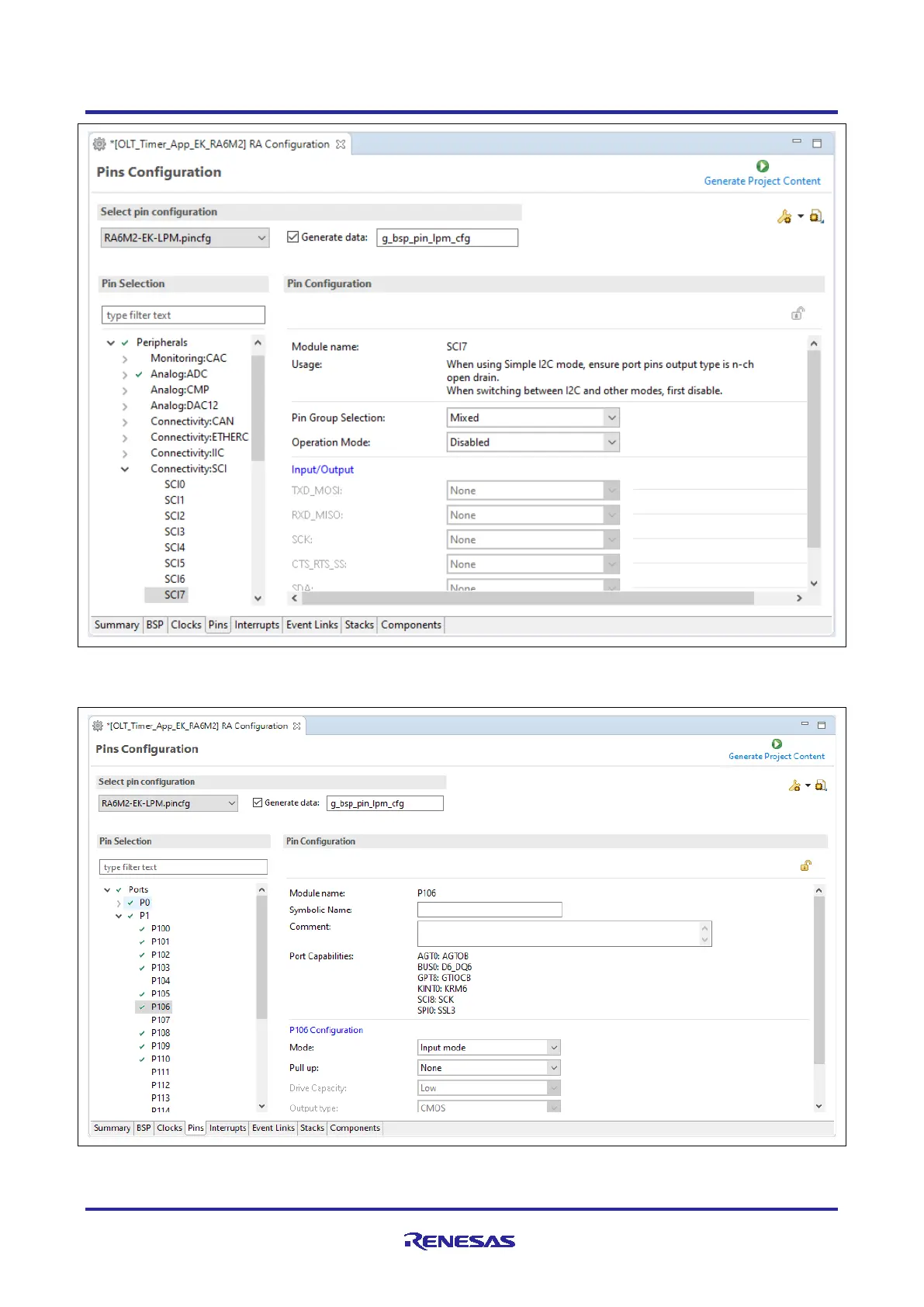

Figure 37. Select the New Pin Configuration and Disable Unused Peripherals
Figure 38 shows an example of placing P106 into input mode.
Figure 38. Place Unused in Input Mode
