Change the r_icu driver configuration and other peripheral configurations if needed. This is necessary since
the user pushbutton S1 used in the applications may be different from board to board.

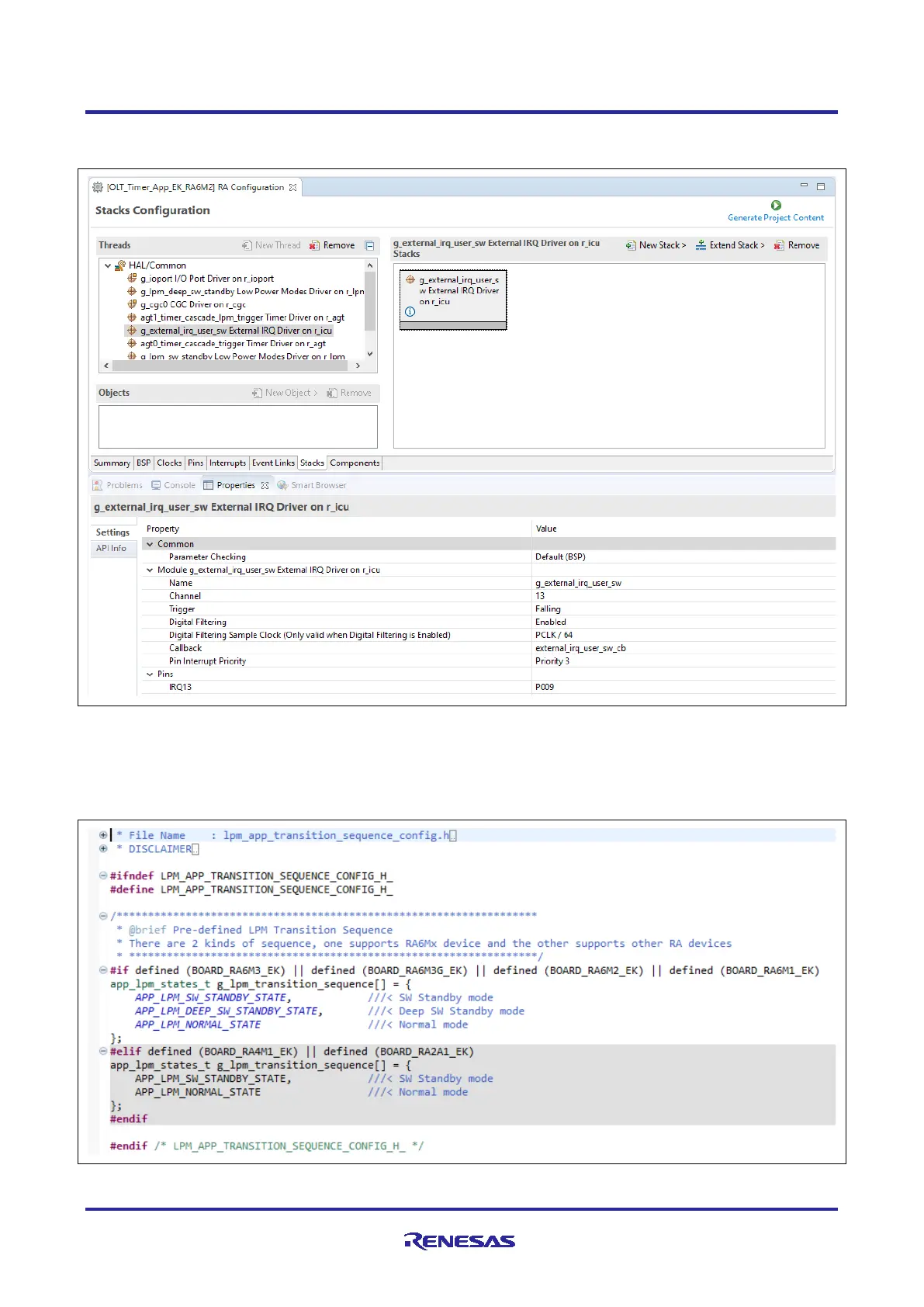

Figure 39. Change Peripheral Configuration
When migrating the projects to a new board that is not listed in Table 1, you must modify the code to add
board definition for the new board type. Similarly, add the new board type in other parts of the application as
required. The sample code fragment of the board type being used in the application is as shown below in
Figure 40.
Figure 40. Board Types Used in the LPM Application
