Renesas RA Family EK-RA6M4Quick Start Guide
R20QS0016EG0101 Rev.1.01 Page 16 of 32
Nov.17.20
12. In Tera Term, press space to return to the ‘welcome and main menu’ screen.
13. Press 3 to display the Network Name Lookup. This application performs a DNS look up of renesas.com
and pings it.

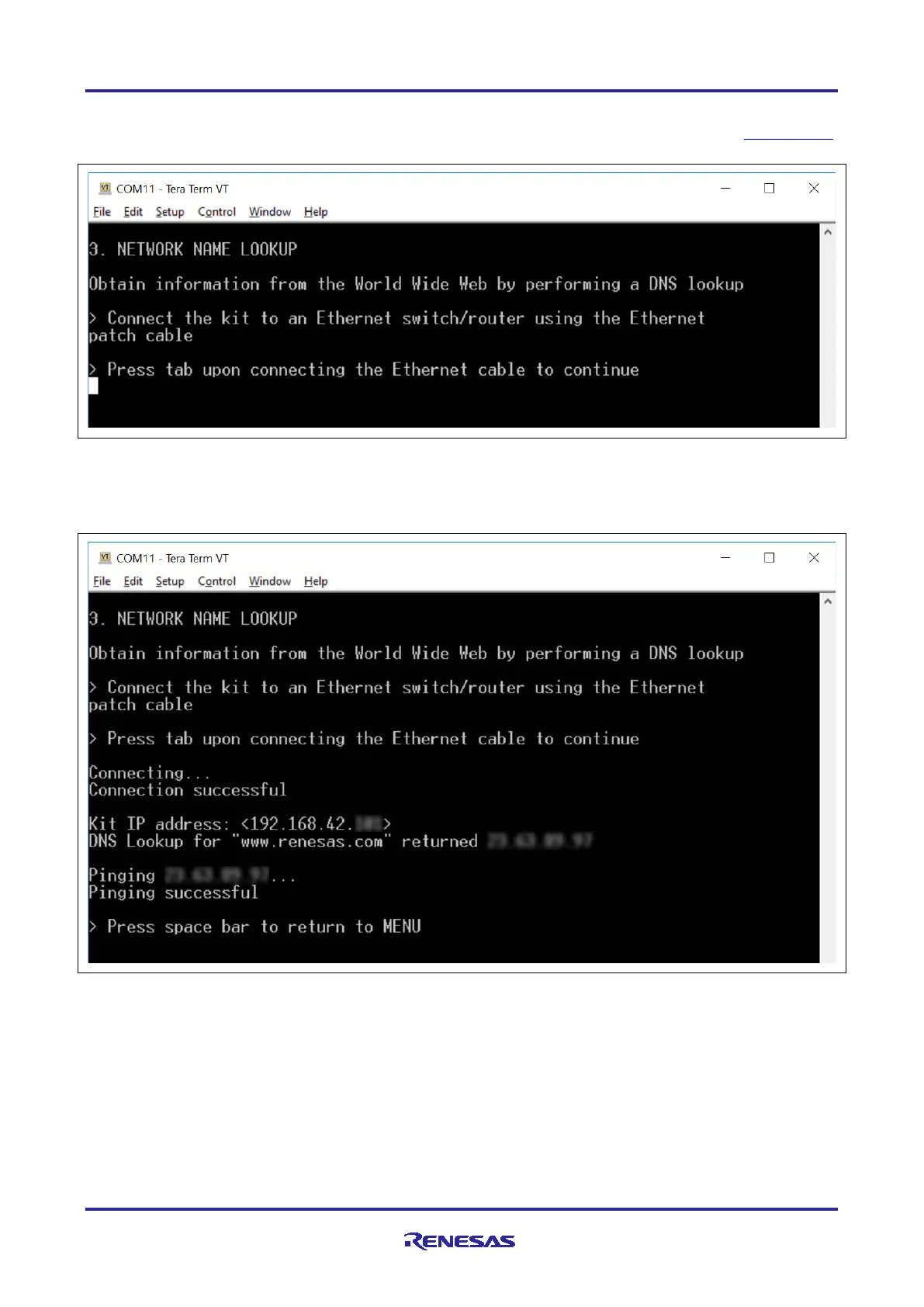

Figure 13. Network Name Lookup
14. Connect the Ethernet cable (if not already connected) and press tab.
15. By default, the application is configured to use a DHCP server. Upon successful connection, the
following is displayed.
Figure 14. Using DHCP
