17. Press 4 to display Octo-SPI and Quad-SPI Speed Comparison. This application demonstrates the
read and write performance between the external Octo-SPI and Quad-SPI flash memories.

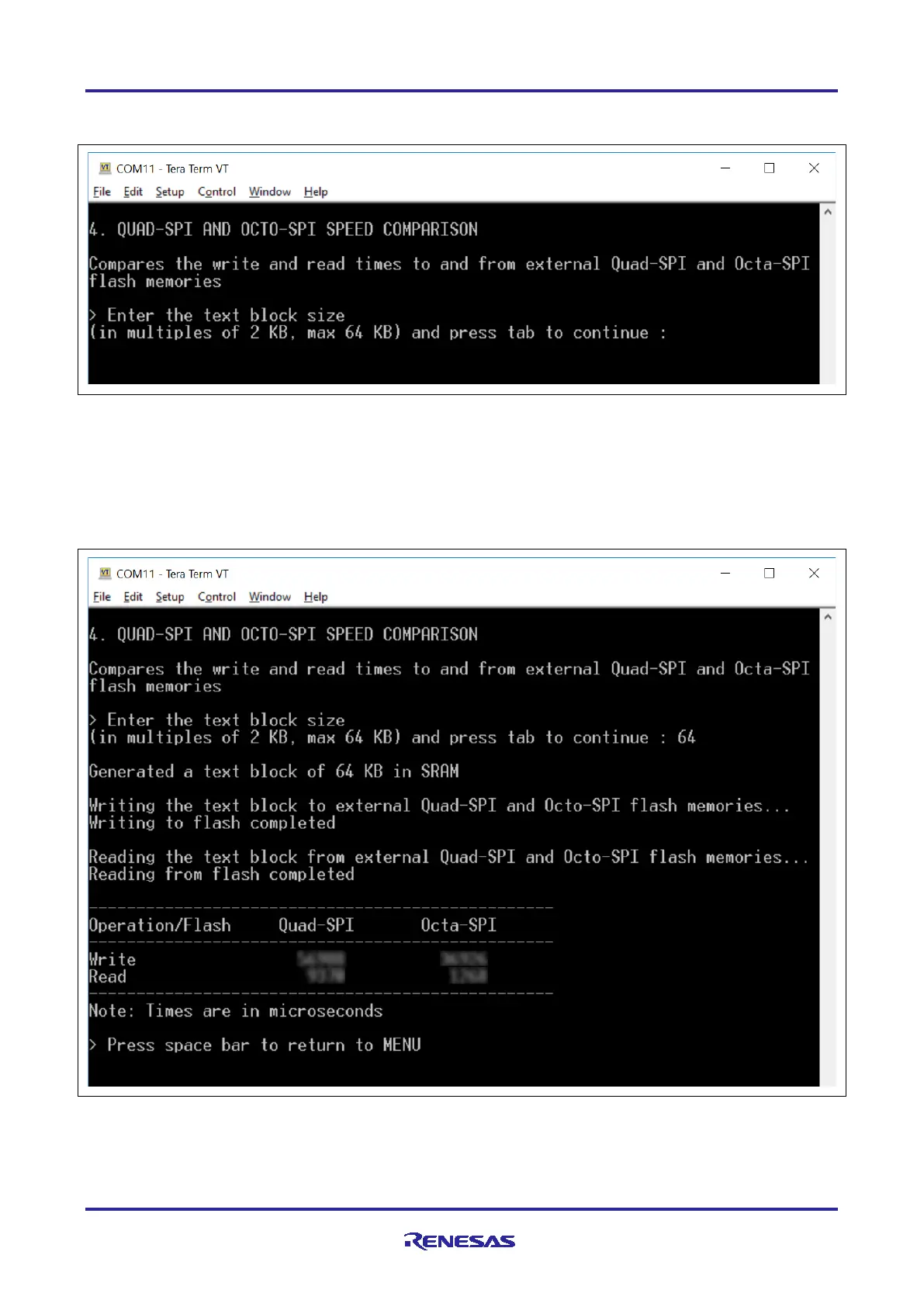

Figure 16. External Memory Read Write
18. Enter the block size in the range of 2 KB to 64 KB and press tab.
Note: If invalid input characters (i.e. keys other than 0 to 9, tab, and space) or out of range values are
entered, the error messages will appear. Renter the correct inputs and press tab. Pressing
space will bring the ‘welcome and main menu’ screen. Return is an invalid character.
19. Once the block size is specified the performance test is executed and the following is displayed.
Figure 17. Performance Data
20. Press space to return to the ‘welcome and main menu’ screen.
