Renesas RA Family EK-RA6M4Quick Start Guide
R20QS0016EG0101 Rev.1.01 Page 20 of 32
Nov.17.20
5.2 Downloading and Importing the Quick Start Example Project
1. Download and extract the Quick Start example project to a local directory on the host PC.
The Quick Start example project (source code and project files) is available in the EK-RA6M4
Example Projects Bundle that is available in the Downloads tab of EK-RA6M4 webpage at
renesas.com/ra/ek-ra6m4
Download and extract the example projects bundle (xxxxxxxxxxxxxxx-ek-ra6m4-
exampleprojects.zip) to a local directory on the host PC.
Browse to the Quick Start example project at xxxxxxxxxxxxxxx-ek-ra6m4-
exampleprojects\ek_RA6M4\_quickstart\quickstart_ek_ra6m4_ep
2. Launch e
2
studio.
3. Browse to the Workspace where the project file is to be imported. Enter the name in the Workspace
dialog box to create a new workspace.

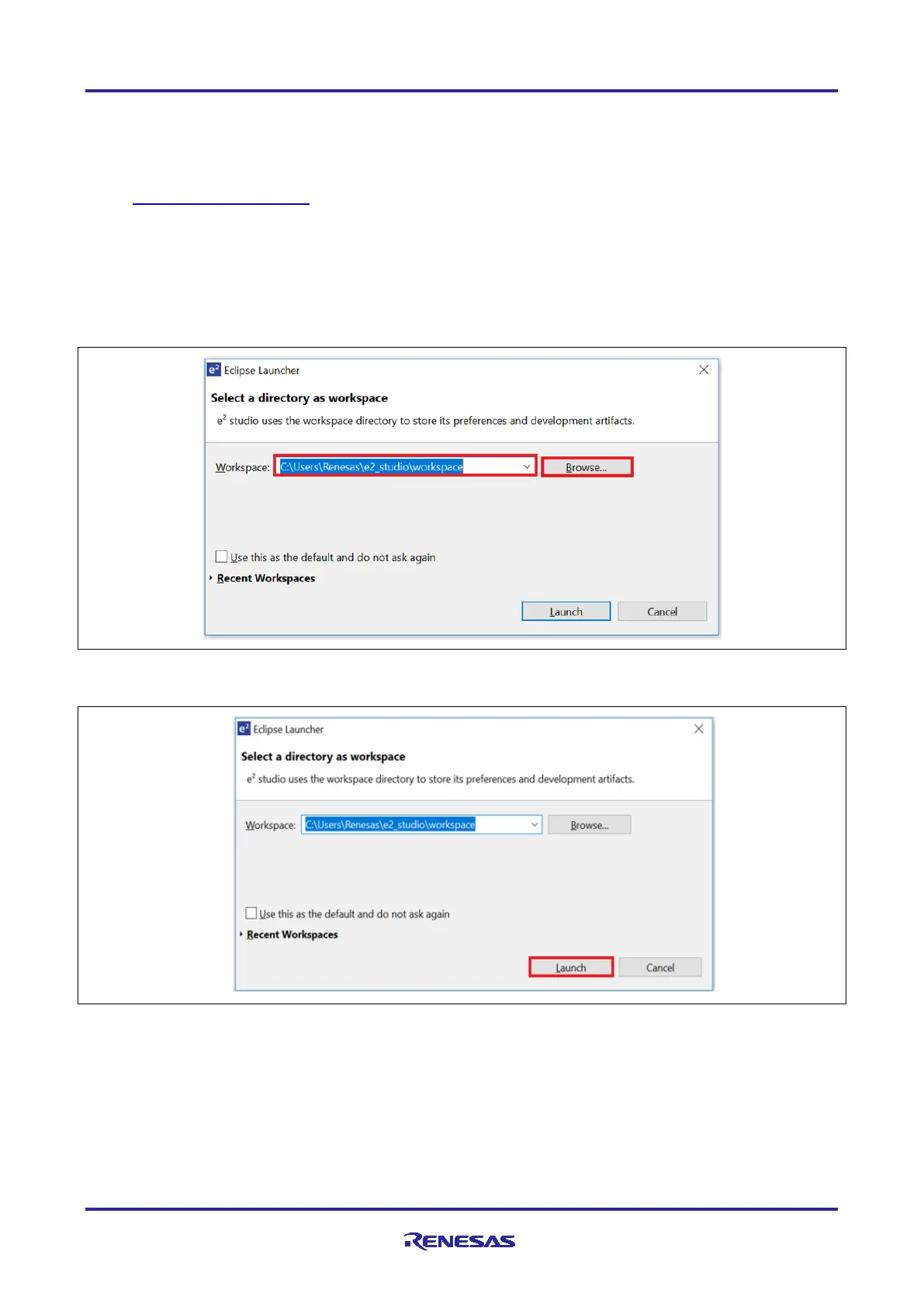

Figure 19. Creating a New Workspace
4. Click Launch.
Figure 20. Launching the Workspace
5. Click Import from the File drop-down menu.
