Renesas RA Family EK-RA6M5 – Quick Start Guide
R20QS0021EG0101 Rev.1.01 Page 19 of 33
Apr.15.21
24. Optional connect a FAT32 formatted USB Memory stick and press tab key to start.
USB Memory stick must contain a text file under 1KB in size called “source.txt”.
File must be at least 1 byte to encrypt.

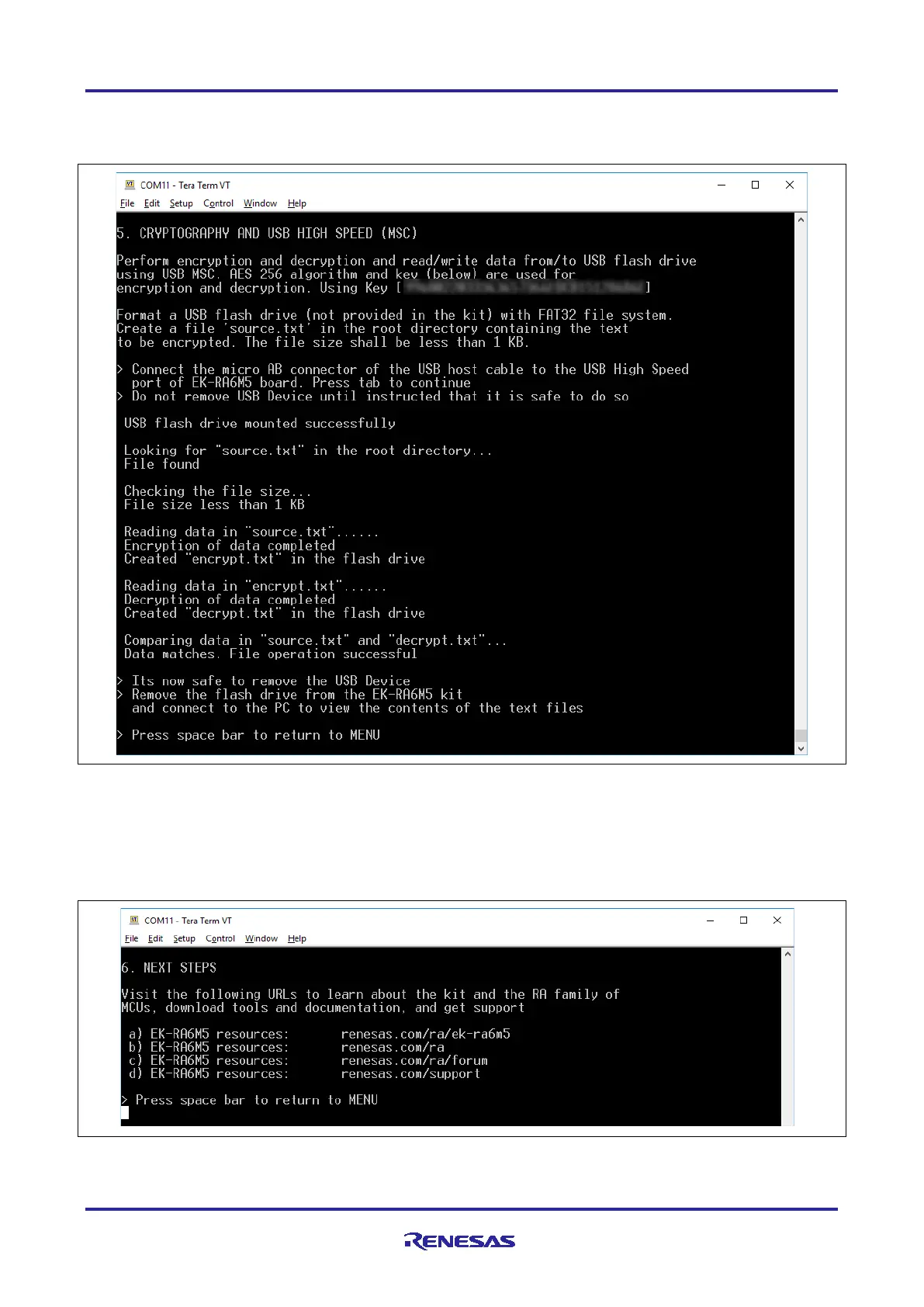

Figure 20. Cryptography Successful
25. Once you have been told it is safe to do so, remove the USB Memory stick and compare the new file
“decrypt.txt” against the original file “source.txt” and they will match.
26. An additional file “encrypt.txt” shows the encrypted data.
27. Press space to return to the ‘welcome and main menu’ screen.
28. Press 6 to display Next Steps.
Figure 21. Next Steps
29. Press space to return to the ‘welcome and main menu’ screen.
