Renesas RA Family EK-RA6M5 – Quick Start Guide
R20QS0021EG0101 Rev.1.01 Page 30 of 33
Apr.15.21
5.6 Downloading and Running the Modified Quick Start Example Project
1. In e
2
studio, click the drop-down menu for the debug icon, select Debug Configurations option.

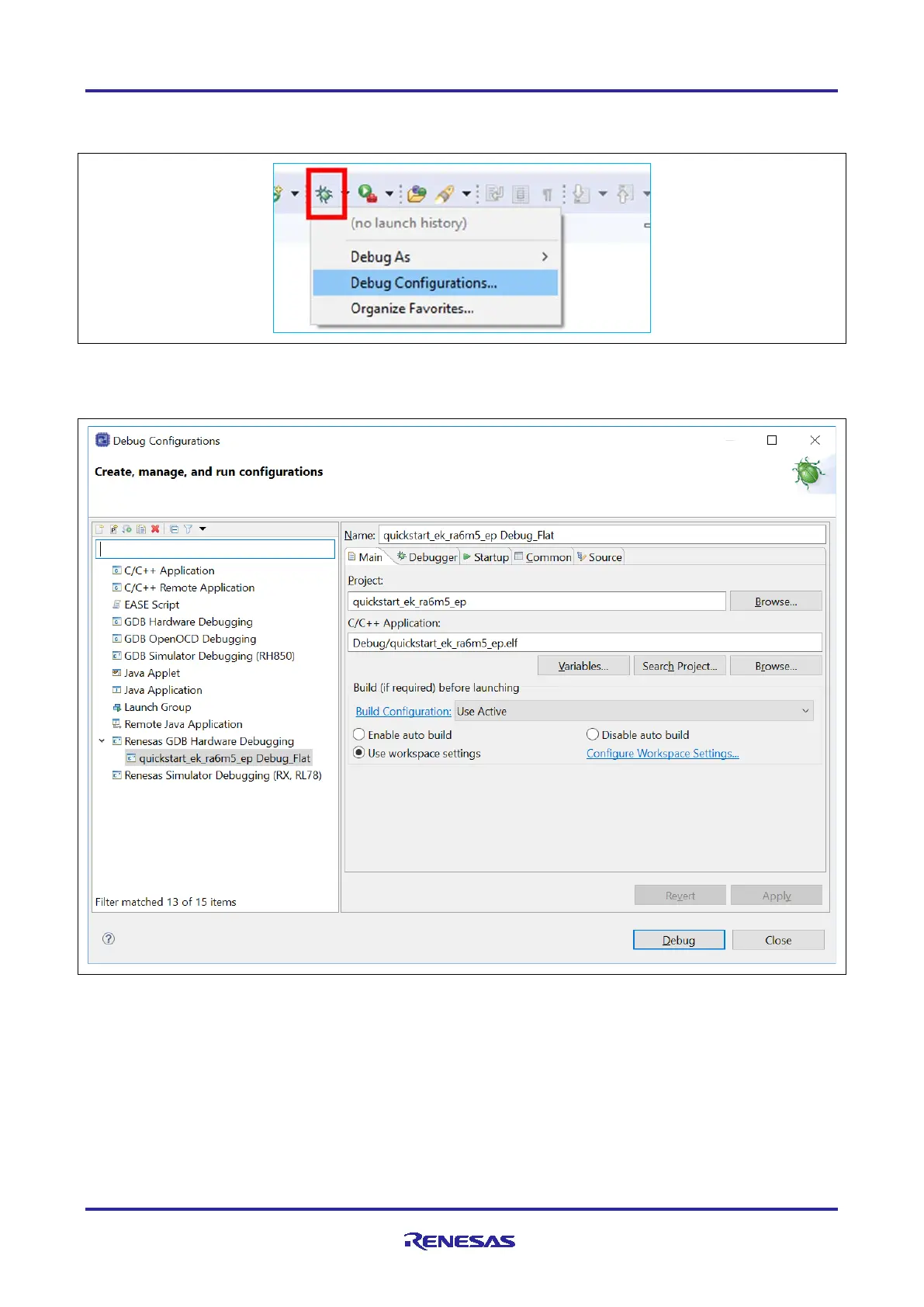

Figure 37. Selecting the Debug Option
2. In the dialogue, on the left-hand pane, expand the Renesas GDB Hardware Debugger and select the
built image to debug. In this case, the quickstart_ek_ra6m5_ep Debug_Flat.
Figure 38. Selecting the Debug Image
