Renesas RA Family EK-RA6M5 – Quick Start Guide
R20QS0021EG0101 Rev.1.01 Page 31 of 33
Apr.15.21
5.7 Firewall Dialogue
1. A firewall warning may be displayed for ‘e2- server-gdb.exe’. Check the ‘Private networks, such as
my home or work network’ box and click ‘Allow access’.
2.
A user account control dialog may be displayed. Enter the administrator password and click Yes.
3. A dialog box may appear. Click Yes.

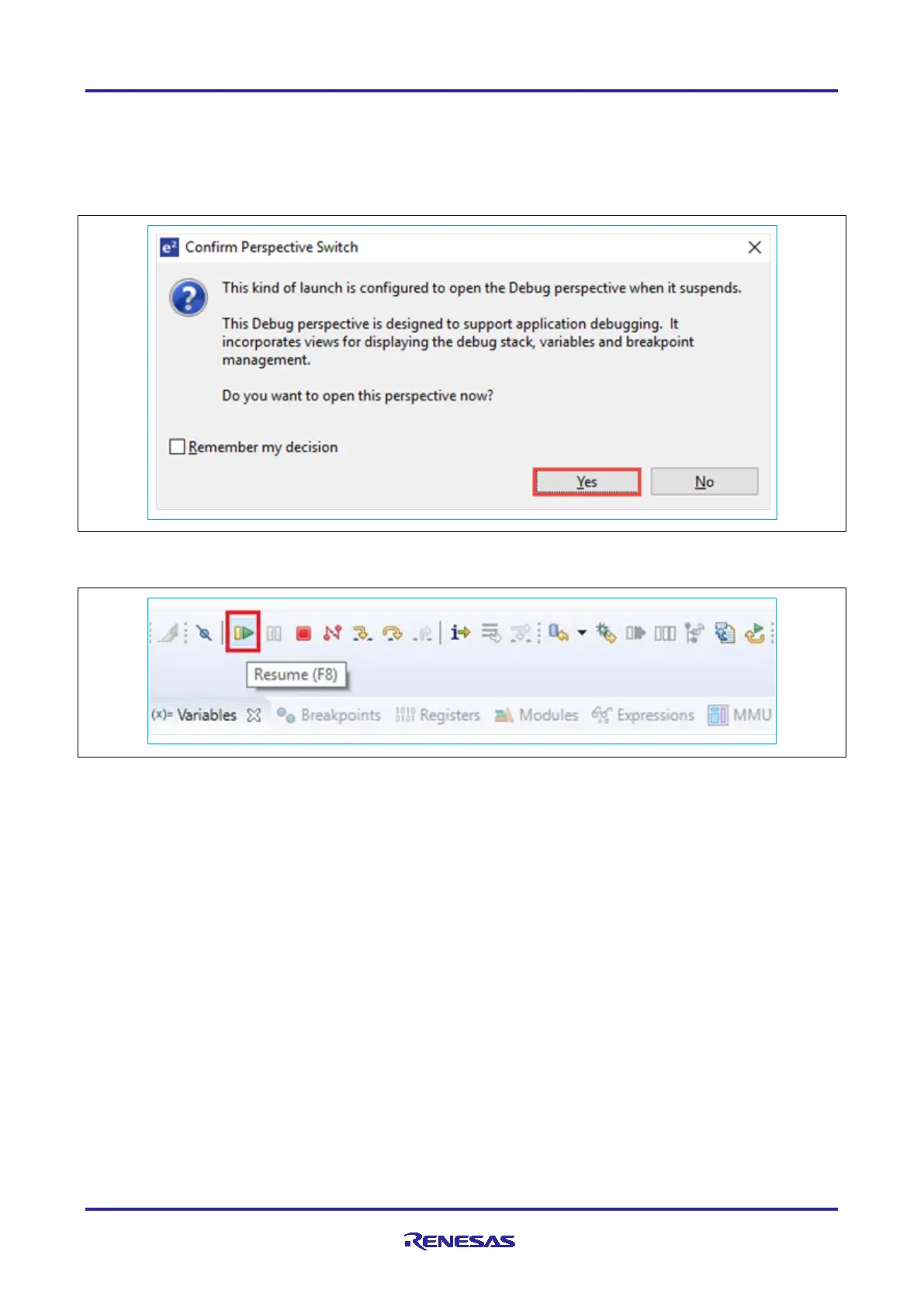

Figure 39. Opening the Debug Perspective
4. Press F8 or click Resume icon to begin executing the project.
Figure 40. Executing the Project
5. The modified Quick Start example project is programmed into the EK-RA6M5 board and is running. The
project can be paused, stopped, or resumed using the debug controls.
