Renesas RA Family EK-RA6M5 – Quick Start Guide
R20QS0021EG0101 Rev.1.01 Page 25 of 33
Apr.15.21
5.3 Modifying, Generating, and Building the Quick Start Example Project
This section provides instructions to modify the Quick Start example project. The Quick Start example project
can be modified by editing the source code and reconfiguring the properties of the MCU peripherals, pins,
clocks, interrupts, and so forth.
Note: The specific modifications that can be performed to the Quick Start example project are not
prescribed in this QSG. User discretion is advised while modifying the Quick Start example project.
1. Once the Quick Start example project is imported, click the configuration.xml file to open the
configurator. The configurator provides an easy to use interface to configure the properties of the MCU
peripherals.

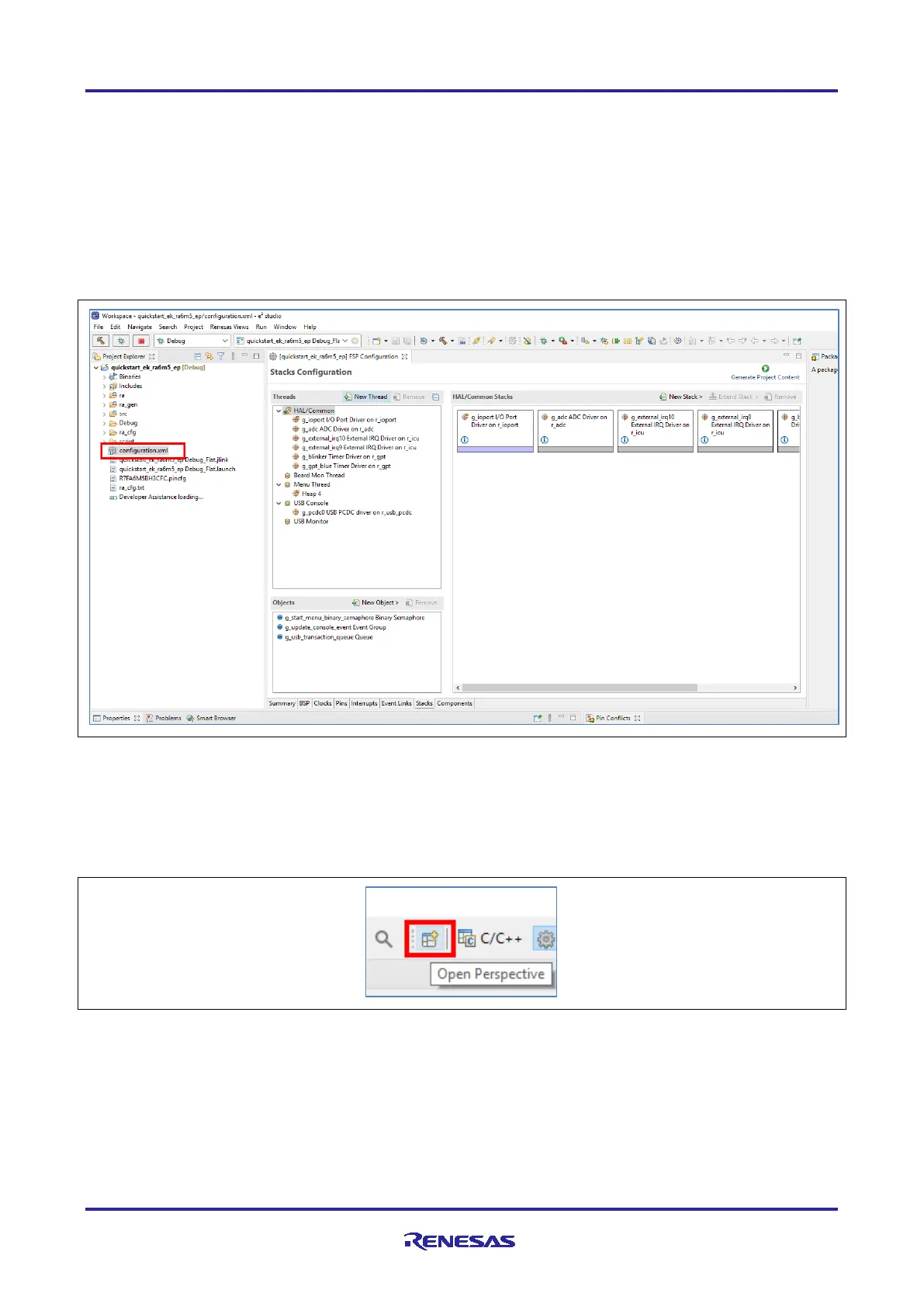

Figure 29. Opening the Configurator
2. For example, in the Stacks tab of the configurator, the user can click to select modules to modify the
configuration settings, as required, in the Properties tab. The following screen shot illustrates modifying
the ADC driver configuration.
Note: To access the stack component properties, the view must be set to FSP Configuration. Using
the Open Perspective button, if necessary.
Figure 30. Opening the Configurator
