3.2 Board Overview RH850/F1L Version [Y-ASK-RH850F1L-V3]
The RH850/F1L Version of the V3 StarterKit is available in two versions:
• RH850-F1X-Starter-Kit-F1L V3 Release Version EEAS-0401-002-01
• RH850-F1X-Starter-Kit-F1L V3 Release Version EEAS-0401-003-01
The difference is only related to the power supply circuit (see detailed description in chapter ‘4.2.1
Power Supply’ and ‘7.2.1 Y-ASK-RH850F1L-V3 and Y-ASK-RH850F1K-V3 Schematics’). It has
no influence on functionalities related to the microcontroller.

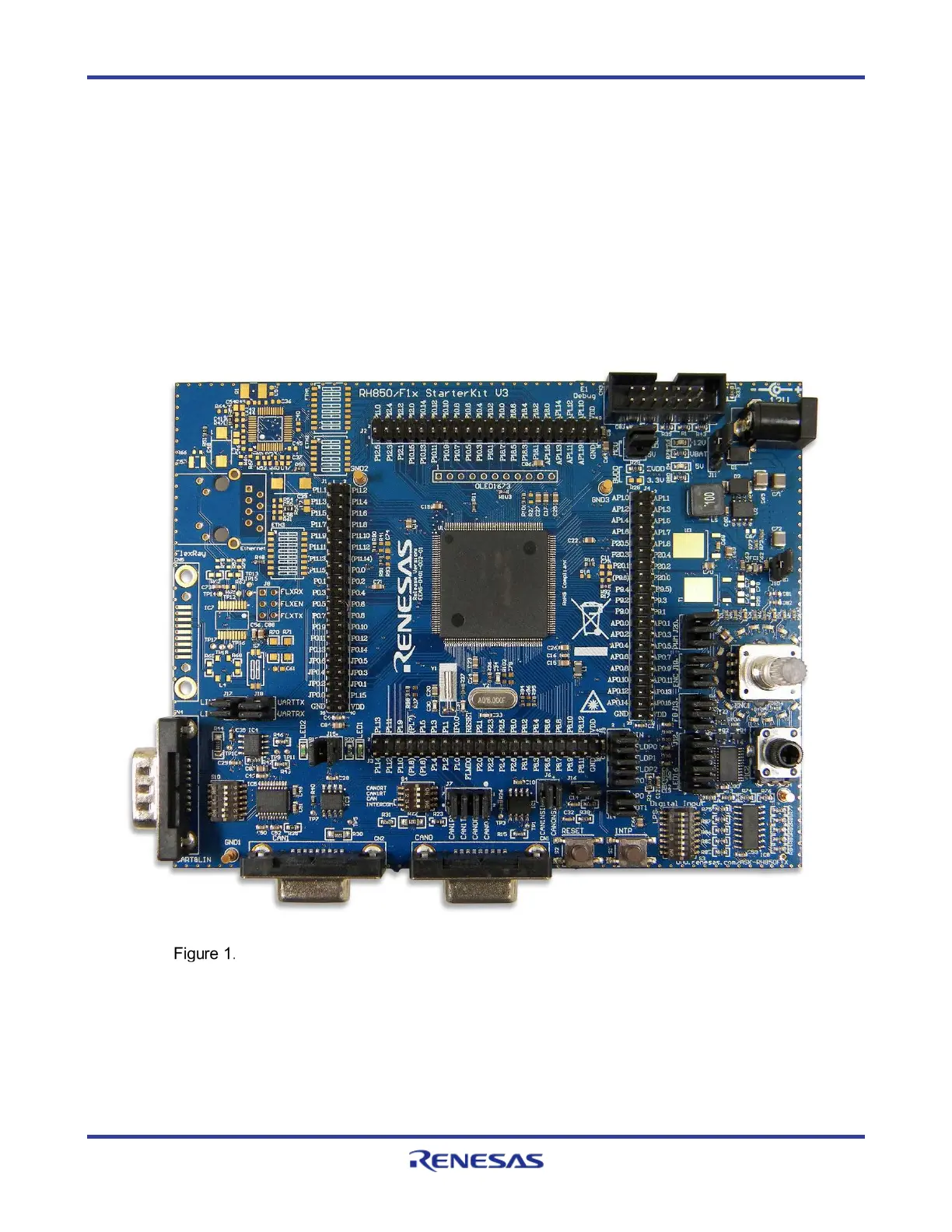

StarterKit V3 top view RH850/F1L (Release Version EEAS-0401-002-01)
R7F701057
