RH850/F1x StarterKit V3 User Manual
R01UH0724ED0120 Page 12
January 2018
3.4 Board Overview RH850/F1H Version [Y-ASK-RH850F1H-V3]

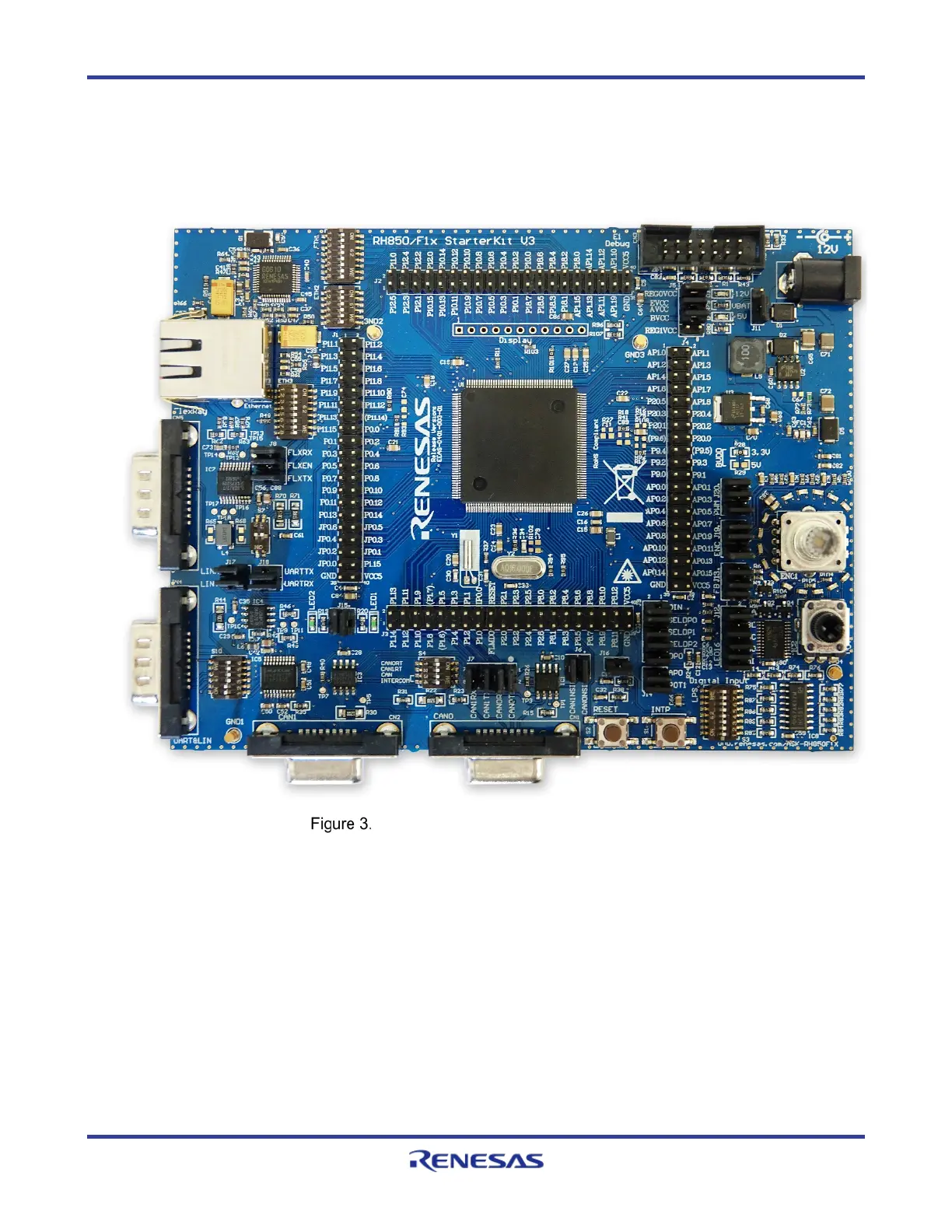

The RH850/F1H Version of the V3 Starterkit is shown in the figure below.
StarterKit V3 top view RH850/F1H
R7F701527
